| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238643154CAP FILM 0.15UF 5% 1.4KVDC SCREW |
2,671 | 13.19 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MMKP386 | Active | 0.15 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | 6 mOhms | -50°C ~ 85°C | Chassis Mount | 1.319 L x 0.866 W (33.50mm x 22.00mm) | 1.201 (30.50mm) | Screw Terminals | 0.894 (22.70mm) | Snubber | - |
|
MHBS505250KRLFILM CAP RADIAL |
4,609 | 13.20 |
RFQ |
Datasheet |
Radial | Bulk | MHBS | Active | 25 µF | ±10% | 350V | 900V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
MHBS505250KRSFILM CAP RADIAL |
2,032 | 13.20 |
RFQ |
Datasheet |
Radial | Bulk | MHBS | Active | 25 µF | ±10% | 350V | 900V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|

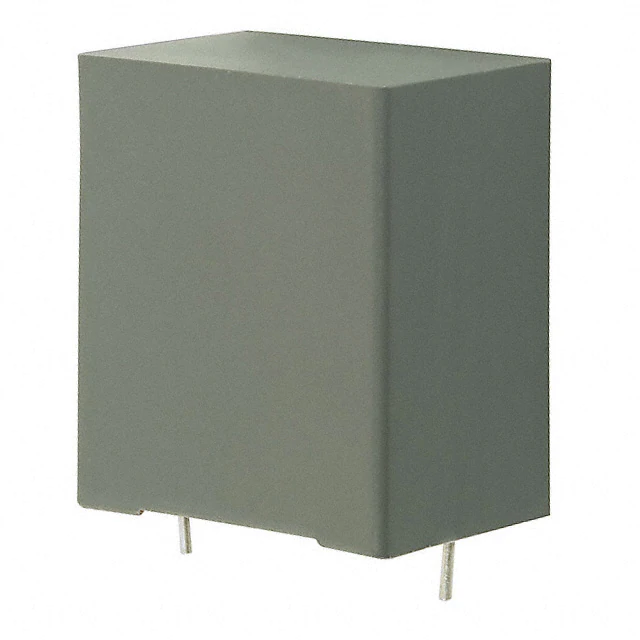

FFB56J0136K--CAP FILM 13UF 10% 525VDC RADIAL |
3,334 | 13.22 |
RFQ |
Datasheet |
Radial | Bulk | FFB | Active | 13 µF | ±10% | 105V | 525V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.457 (37.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|
PSB2124250KRSFILM CAP BOXED RADIAL |
1,573 | 13.25 |
RFQ |
Datasheet |
Radial | Bulk | PSB | Active | 2.5 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PSB2124250KRLFILM CAP BOXED RADIAL |
4,866 | 13.25 |
RFQ |
Datasheet |
Radial | Bulk | PSB | Active | 2.5 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
MKP1848635704Y2CAP FILM 35UF 5% 700VDC RADIAL |
2,613 | 13.25 |
RFQ |
Datasheet |
Radial | Bulk | MKP1848 DC-Link | Active | 35 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 0.984 W (57.50mm x 25.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
MKP1848620924Y2CAP FILM 20UF 5% 1.2KVDC RADIAL |
1,464 | 13.25 |
RFQ |
Datasheet |
Radial | Bulk | MKP1848 DC-Link | Active | 20 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
MKP1848630454P2CAP FILM 30UF 5% 450VDC RADIAL |
2,482 | 13.25 |
RFQ |
Datasheet |
Radial | Bulk | MKP1848 DC-Link | Active | 30 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 0.945 W (42.00mm x 24.00mm) | 1.732 (44.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
MKP1848635704P2CAP FILM 35UF 5% 700VDC RADIAL |
3,017 | 13.25 |
RFQ |
Datasheet |
Radial | Bulk | MKP1848 DC-Link | Active | 35 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
MKP1848620914Y2CAP FILM 20UF 5% 1.1KVDC RADIAL |
2,643 | 13.25 |
RFQ |
Datasheet |
Radial | Bulk | MKP1848 DC-Link | Active | 20 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
B32678G4406K000CAP FILM 40UF 10% 450VDC RADIAL |
3,163 | 13.27 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | B3267* - MKP DC-Link High Power | Active | 40 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering | AEC-Q200 |
|
MKP386M525160YT4CAP FILM 2.5UF 5% 1.6KVDC SCREW |
2,885 | 13.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 2.5 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.024 (26.00mm) | Snubber | - |
|
MKP386M525160YT1CAP FILM 2.5UF 5% 1.6KVDC SCREW |
3,936 | 13.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 2.5 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 0.992 (25.20mm) | Snubber | - |
|
|
MKP386M525160YT2CAP FILM 2.5UF 5% 1.6KVDC SCREW |
2,025 | 13.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 2.5 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 0.835 (21.20mm) | Snubber | - |
|
|
MKP386M525160YT8CAP FILM 2.5UF 5% 1.6KVDC SCREW |
1,320 | 13.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 2.5 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.024 (26.00mm) | Snubber | - |
|
|
MKP386M580085YT1CAP FILM 8UF 5% 850VDC SCREW |
3,524 | 13.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 8 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 2 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 0.992 (25.20mm) | Snubber | - |
|
|
MKP386M580085YT2CAP FILM 8UF 5% 850VDC SCREW |
4,660 | 13.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 8 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 2 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 0.835 (21.20mm) | Snubber | - |
|
|
MKP386M580085YT8CAP FILM 8UF 5% 850VDC SCREW |
3,727 | 13.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 8 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 2 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.024 (26.00mm) | Snubber | - |
|
|
MKP386M525160YT3CAP FILM 2.5UF 5% 1.6KVDC SCREW |
3,658 | 13.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 2.5 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | - | Snubber | - |
