| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32676E4106K000CAP FILM 10UF 10% 450VDC RADIAL |
9,780 | 6.80 |
RFQ |
Datasheet |
Radial | Bulk | B3267* - MKP DC-Link High Power | Active | 10 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.555 (39.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
C274ACF4150WA0JCAP FILM 1.5UF 5% 470VAC RADIAL |
7,017 | 6.84 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 1.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984 Dia (25.00mm) | 2.244 (57.00mm) | Wire Leads | - | Motor Run; Motor Start | - |
|
MKP4O142207H00MSSDCAP FILM 2.2UF 20% 1KVDC RAD |
5,748 | 7.05 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 2.2 µF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.791 (45.50mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching | - |
|
EZP-Q25226LTACAP FILM 22UF 10% 250VAC RADIAL |
7,689 | 7.14 |
RFQ |
Datasheet |
Radial | Bulk | EZPQ | Active | 22 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.791 (45.50mm) | PC Pins | 2.067 (52.50mm) | General Purpose | - |
|
50MU475MD35750CAP FILM 4.7UF 20% 50VDC 2220 |
1,236 | 10.83 |
RFQ |
Datasheet |
2220 (5750 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 4.7 µF | ±20% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224 L x 0.197 W (5.70mm x 5.00mm) | 0.110 (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
|
25MU156MD35750CAP FILM 15UF 20% 25VDC 2220 |
3,921 | 10.83 |
RFQ |
Datasheet |
2220 (5750 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 15 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224 L x 0.197 W (5.70mm x 5.00mm) | 0.110 (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
B32914A5155M000CAP FILM 1.5UF 20% 1KVDC RADIAL |
6,202 | 7.23 |
RFQ |
Datasheet |
Radial | Bulk | B3291*A/B5 - X1 530V | Active | 1.5 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.437 (36.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|

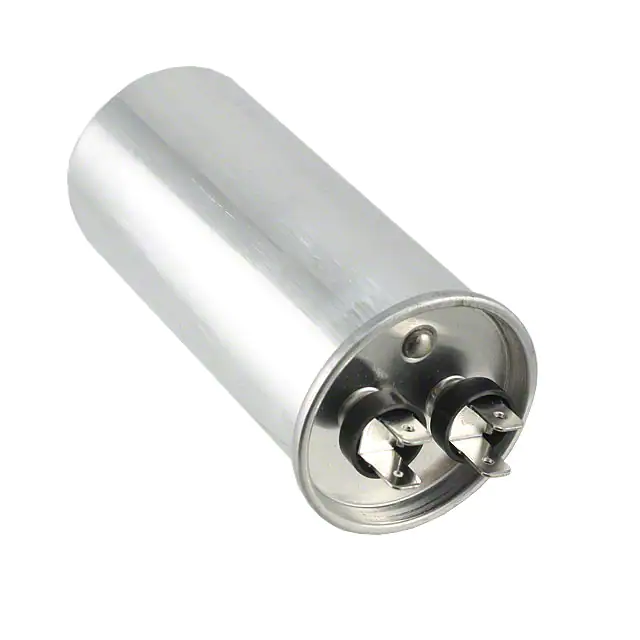

DS371406-CACAP FILM 40UF 10% 370VAC RADIAL |
7,943 | 7.27 |
RFQ |
Datasheet |
Radial, Can | Bulk | DMF | Not For New Designs | 40 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.772 Dia (45.00mm) | 4.409 (112.00mm) | Quick Connect, Disconnect | 0.709 (18.00mm) | Motor Run | - |
|
C274AC34800SA0JCAP FILM 8UF 5% 500VAC RADIAL |
6,112 | 7.29 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 8 µF | ±5% | 500V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378 Dia (35.00mm) | 2.303 (58.50mm) | Quick Connect - 0.250 (6.3mm) | - | Motor Run; Motor Start | - |
|
104PPA302KCAP FILM 0.1UF 10% 3KVDC AXIAL |
6,728 | 7.36 |
RFQ |
Datasheet |
Axial | Bulk | PPA | Active | 0.1 µF | ±10% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 9.4 mOhms | -55°C ~ 85°C | Through Hole | 0.984 Dia x 1.811 L (25.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|

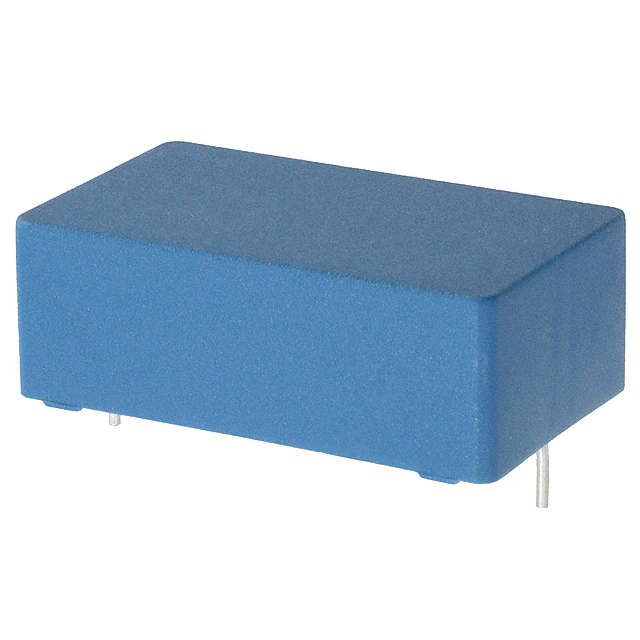

B32526T6565K000CAP FILM 5.6UF 10% 400VDC RADIAL |
5,305 | 7.38 |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 5.6 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 0.591 (15.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; EMI, RFI Suppression | - |
|
EZP-E50156LTACAP FILM 15UF 10% 500VDC RADIAL |
6,340 | 7.38 |
RFQ |
Datasheet |
Radial | Bulk | EZPE | Active | 15 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 14.8 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.673 (42.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
940C8P47K-FCAP FILM 0.47UF 10% 850VDC AXIAL |
5,786 | 7.50 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.47 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.827 Dia x 1.339 L (21.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

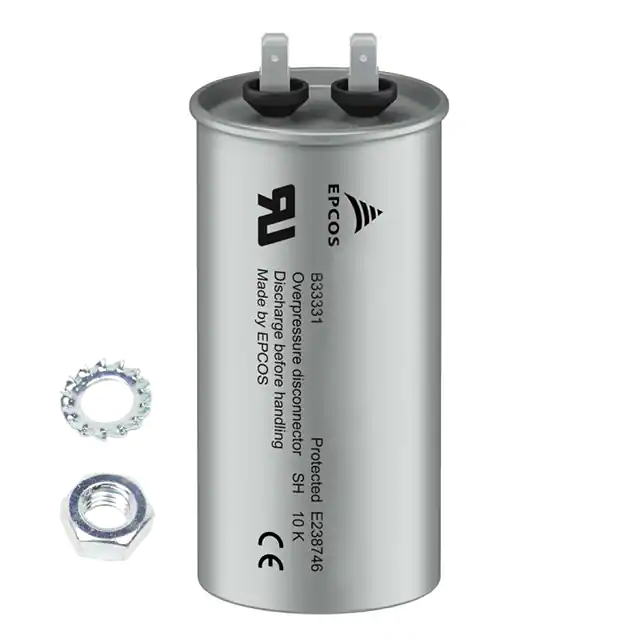

B33331V7106J080CAP FILM 10UF 5% 460VAC RADIAL |
9,913 | 7.50 |
RFQ |
Datasheet |
Radial, Can | Bulk | B3333* - MKP AC Round Can | Active | 10 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 19 mOhms | -40°C ~ 85°C | Chassis Mount | 1.181 Dia (30.00mm) | 3.031 (77.00mm) | Quick Connect - 0.250 (6.3mm) | - | General Purpose | - |
|
DCP4P052007ID2JSSDCAP FILM 20UF 5% 1.1KVDC RADIAL |
7,207 | 7.52 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 20 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 1.220 W (41.50mm x 31.00mm) | 1.811 (46.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C274ACF4400LF0JCAP FILM 4UF 5% 470VAC RADIAL |
6,296 | 7.53 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Wire Leads | - | Motor Run; Motor Start | - |
|
B32654A6335K000CAP FILM 3.3UF 10% 630VDC RADIAL |
9,859 | 7.56 |
RFQ |
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 3.3 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.437 (36.50mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - |
|

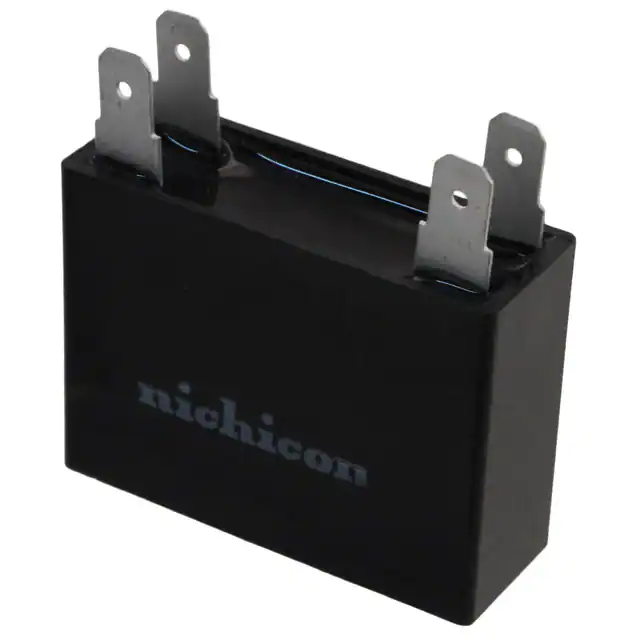

EEC2E505HQA402CAP FILM 5UF 250VAC QC TERM |
5,408 | 7.58 |
RFQ |
Datasheet |
Rectangular Box | Bulk | EEC | Active | 5 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457 L x 0.531 W (37.00mm x 13.50mm) | 1.102 (28.00mm) | Quick Connect, Disconnect | - | Motor Run | - |
|

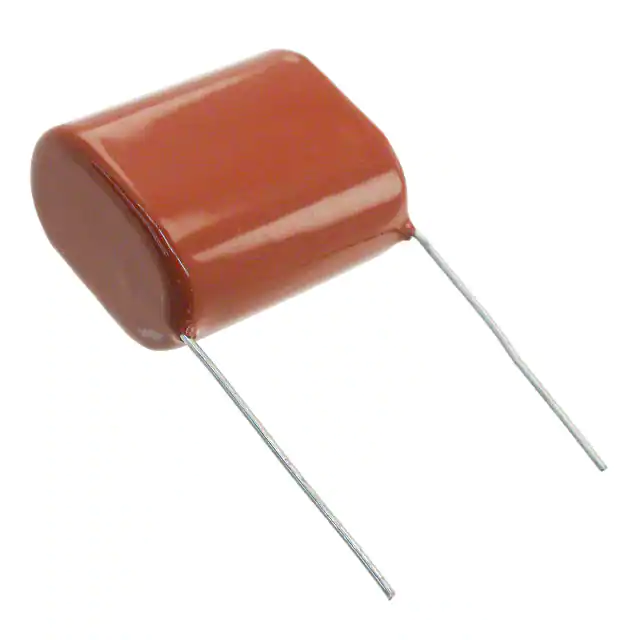

DME6W2P2K-FCAP FILM 2.2UF 10% 630VDC RADIAL |
7,465 | 7.64 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 2.2 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220 L x 0.787 W (31.00mm x 20.00mm) | 1.201 (30.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
DME2W6P8K-FCAP FILM 6.8UF 10% 250VDC RADIAL |
6,099 | 7.64 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 6.8 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220 L x 0.531 W (31.00mm x 13.50mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
