Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
78279226101 WE-MPSA EMI MULTILAYER POWER SUP Würth Elektronik	11,863	0.28	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MPSA	Active	Power Line	1	100 Ohms @ 100 MHz	8A	6mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.100 (2.55mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)
BLM21SP331SN1D FERRITEBEAD SMD Z100MHZ=330OHM 2 Murata Electronics	14,836	0.28	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM21	Active	Power Line	1	330 Ohms @ 100 MHz	2.8A	-	-	-55°C ~ 125°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
BLM03HB401SZ1D FERRITE BEAD Murata Electronics	13,590	0.29	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BLM	Active	-	1	400 Ohms @ 100 MHz	125mA	2.8Ohm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MPZ1005S300CTD25 FERRITE BEAD 30 OHM 0402 1LN TDK Corporation	13,442	0.29	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ	Active	Power Line	1	30 Ohms @ 100 MHz	1.7A	35mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MDF1005GAD102ATD25 NOISE SUPPRESSION FILTER FOR UHF TDK Corporation	11,443	0.29	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MDF	Active	Power Line	1	1 kOhms @ 900 MHz	550mA	690mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
FBTH1608HE470-T FERRITE BEAD,HIGH CURRENT, 0603 Taiyo Yuden	11,888	0.29	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FB	Active	Power Line	1	47 Ohms @ 100 MHz	2.5A	20mOhm	AEC-Q200	-40°C ~ 150°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
MPZ1005F330ETD25 FERRITE BEAD 33 OHM 0402 1LN TDK Corporation	10,112	0.29	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-E	Active	Power Line	1	33 Ohms @ 100 MHz	550mA	350mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
742792131 WE-CBF SMT EMI SUPPRESSION FERRI Würth Elektronik	14,897	0.29	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	-	200mA	-	-	-55°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)
MMZ0603S121ET000 FERRITE BEAD 120 OHM 0201 1LN TDK Corporation	14,150	0.30	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	120 Ohms @ 100 MHz	250mA	370mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MMZ0603D330ET000 FERRITE BEAD 33 OHM 0201 1LN TDK Corporation	11,061	0.30	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	33 Ohms @ 100 MHz	250mA	600mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MMZ0603S241ET000 FERRITE BEAD 240 OHM 0201 1LN TDK Corporation	12,854	0.30	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	240 Ohms @ 100 MHz	200mA	710mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MMZ0603D470ET000 FERRITE BEAD 47 OHM 0201 1LN TDK Corporation	11,086	0.30	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	47 Ohms @ 100 MHz	200mA	760mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
BLM21SP102BH1D FERRITEBEAD SMD Z100MHZ=1000OHM Murata Electronics	11,868	0.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM21	Active	Power Line	1	1 kOhms @ 100 MHz	1.6A	-	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
MMZ0603A121ET000 FERRITE BEAD 120 OHM 0201 1LN TDK Corporation	11,082	0.30	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	120 Ohms @ 100 MHz	250mA	440mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
BLM21SP111BH1D FERRITEBEAD SMD Z100MHZ=110OHM 5 Murata Electronics	14,808	0.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM21	Active	Power Line	1	110 Ohms @ 100 MHz	5A	-	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
BLM21SP700BH1D FERRITEBEAD SMD Z100MHZ=70OHM 6A Murata Electronics	10,796	0.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM21	Active	Power Line	1	70 Ohms @ 100 MHz	6A	-	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
BLM21SP331BH1D FERRITEBEAD SMD Z100MHZ=330OHM 2 Murata Electronics	14,554	0.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMIFIL®, BLM21	Active	Power Line	1	330 Ohms @ 100 MHz	2.8A	-	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
BLM31KN471SH1L FERRITE BEAD 470 OHM 1206 1LN Murata Electronics	10,385	0.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BLM	Active	Power Line	1	470 Ohms @ 100 MHz	4A	20mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.071 (1.80mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)

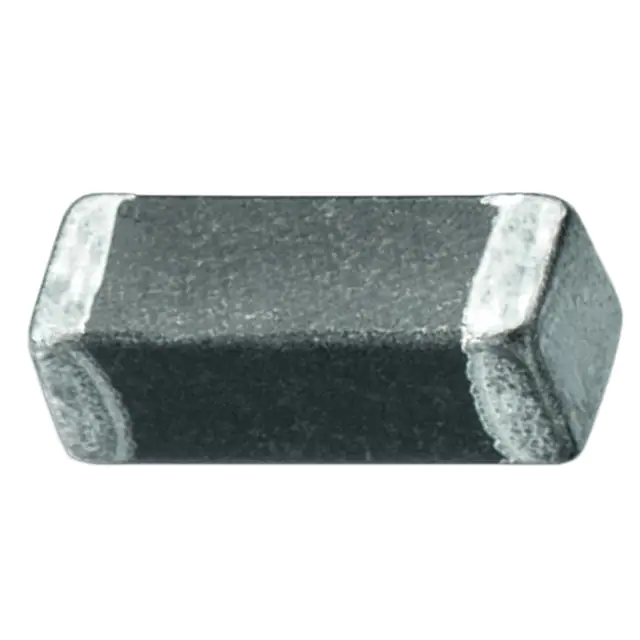

74279243 WE-CBF SMT EMI SUPPRESSION FERRI Würth Elektronik	13,260	0.30	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	WE-CBF	Active	Signal Line	1	-	3A	25mOhm	-	-55°C ~ 125°C	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
Z1806C720APWST POWER LINE FERRITE CHIP BEAD 72 KEMET	10,148	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWS	Last Time Buy	Power Line	1	72 Ohms @ 100 MHz	6A	7mOhm	-	-40°C ~ 125°C	Surface Mount	0.051 (1.30mm)
