| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISO150AUDGTL ISO 1.5KV GEN PURP 12SOP |
2,898 | 11.32 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | Capacitive Coupling | General Purpose | No | 2 | 2/2 | Bidirectional | 1500Vrms | 1.6kV/µs (Typ) | 80MBd | 40ns, 40ns | 6ns | 9ns, 9ns | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

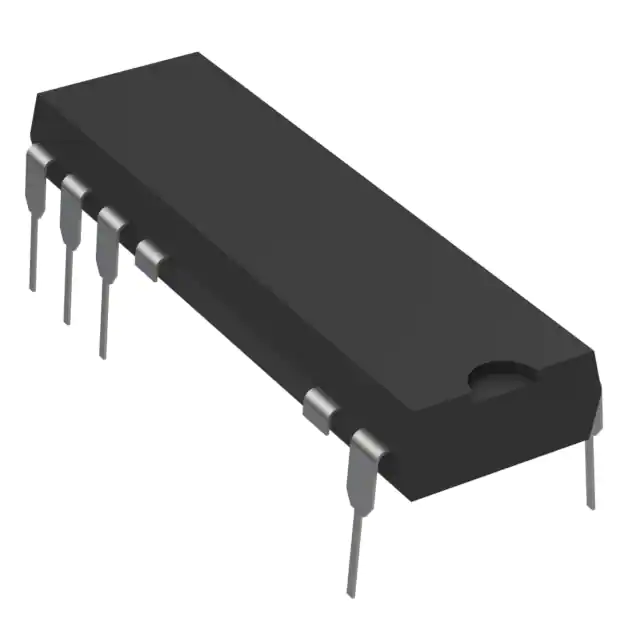

LTC1146ACNDGTL ISO 2.5KV OR 3KV 1CH 18DIP |
2,877 | 0.00 |
RFQ |
Datasheet |
Tube | LTC | Obsolete | - | - | - | 1 | 1/0 | - | 2500Vrms or 3000Vrms | - | 20kHz | - | - | - | 4.5V ~ 5.5V | 0°C ~ 70°C | Through Hole |
|
|
LTC1146CNDGTL ISO 2.5KV OR 3KV 1CH 18DIP |
3,983 | 0.00 |
RFQ |
Datasheet |
Tube | LTC | Obsolete | - | - | - | 1 | 1/0 | - | 2500Vrms or 3000Vrms | - | 20kHz | - | - | - | 4.5V ~ 5.5V | 0°C ~ 70°C | Through Hole |
|
ADUM1100ARDGTL ISO 2500VRMS 1CH GP 8SOIC |
11,391 | 0.00 |
RFQ |
Datasheet |
Bulk | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 18ns, 18ns | 2ns | 3ns, 3ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ADUM1300ARWDGTL ISO 2500VRMS 3CH GP 16SOIC |
8,723 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Discontinued at Mosen | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM1300BRWDGTL ISO 2.5KV GEN PURP 16SOIC |
2,360 | 4.25 |
RFQ |
Datasheet |
Tube,Tube | iCoupler® | Obsolete | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM1300CRWDGTL ISO 2.5KV GEN PURP 16SOIC |
2,673 | 5.69 |
RFQ |
Datasheet |
Tube,Tube | iCoupler® | Obsolete | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM1301ARWDGTL ISO 2500VRMS 3CH GP 16SOIC |
11,342 | 0.00 |
RFQ |
Datasheet |
Bulk | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM1301BRWDGTL ISO 2500VRMS 3CH GP 16SOIC |
12,540 | 0.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM1301CRWDGTL ISO 2500VRMS 3CH GP 16SOIC |
13,673 | 0.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM1400ARWDGTL ISO 2500VRMS 4CH GP 16SOIC |
10,744 | 0.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1400BRWDGTL ISO 2500VRMS 4CH GP 16SOIC |
12,701 | 0.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1400CRWDGTL ISO 2500VRMS 4CH GP 16SOIC |
11,273 | 0.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1401ARWDGTL ISO 2500VRMS 4CH GP 16SOIC |
13,262 | 0.00 |
RFQ |
Bulk | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1401BRWDGTL ISO 2500VRMS 4CH GP 16SOIC |
12,495 | 0.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1401CRWDGTL ISO 2500VRMS 4CH GP 16SOIC |
12,687 | 0.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1402ARWDGTL ISO 2500VRMS 4CH GP 16SOIC |
10,950 | 0.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1402BRWDGTL ISO 2500VRMS 4CH GP 16SOIC |
11,691 | 0.00 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1402CRWDGTL ISO 2500VRMS 4CH GP 16SOIC |
10,606 | 0.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
AD260AND-0DGTL ISO 1.75KV GEN PURP 22DIP |
2,328 | 55.32 |
RFQ |
Tube,Tube | IsoLogic™ | Obsolete | Magnetic Coupling | General Purpose | Yes | 5 | 0/5 | Unidirectional | 1750Vrms | 10kV/µs | - | 25ns, 25ns | - | - | 4V ~ 5.75V | -25°C ~ 85°C | Through Hole |
