| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35603R9FTRES 3560 3R9 1% |
7,400 | 3.03 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3560, CGS | Active | 3.9 Ohms | ±1% | 6W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.457 L x 0.270 W (11.60mm x 6.85mm) | 0.047 (1.20mm) | |
|
|
35606R2FTRES 3560 6R2 1% |
8,730 | 3.03 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3560, CGS | Active | 6.2 Ohms | ±1% | 6W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.457 L x 0.270 W (11.60mm x 6.85mm) | 0.047 (1.20mm) | |
|
|
35601R2FTRES 3560 1R2 1% |
6,449 | 3.03 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3560, CGS | Active | 1.2 Ohms | ±1% | 6W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.457 L x 0.270 W (11.60mm x 6.85mm) | 0.047 (1.20mm) | |
|
|
35605R1FTRES 3560 5R1 1% |
6,054 | 3.03 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3560, CGS | Active | 5.1 Ohms | ±1% | 6W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.457 L x 0.270 W (11.60mm x 6.85mm) | 0.047 (1.20mm) | |
.jpg)
|
PHP01206E2492BST5RES SMD 24.9K OHM 0.1% 1W 1206 |
5,926 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PHP | Active | 24.9 kOhms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.033 (0.84mm) | |
|

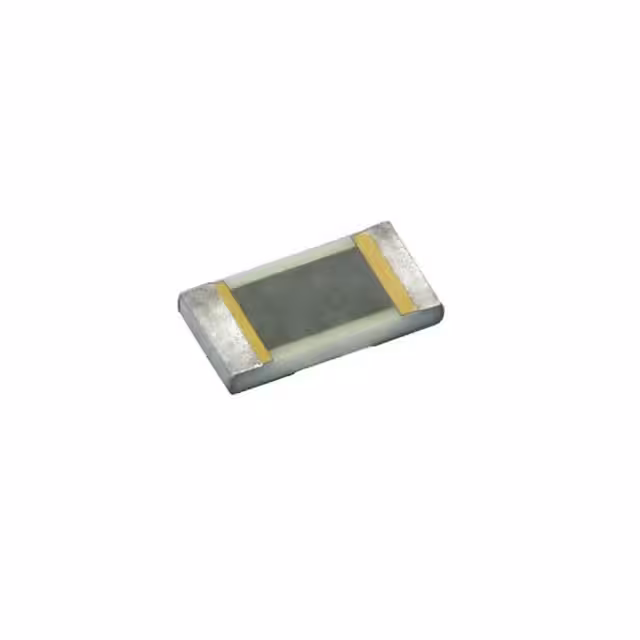

PHPA2512E1002BST1THIN FILM RES SMD 10K OHM 0.1% 2 |
6,467 | 2.42 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | PHPA | Active | 10 kOhms | ±0.1% | 2.5W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Power, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.259 L x 0.124 W (6.58mm x 3.15mm) | 0.020 (0.51mm) | |
|
|
PHP01206E30R1BST5RES SMD 30.1 OHM 0.1% 1W 1206 |
9,558 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PHP | Active | 30.1 Ohms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.033 (0.84mm) | |
|
|
PHP01206E4991BST5RES SMD 4.99K OHM 0.1% 1W 1206 |
8,390 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PHP | Active | 4.99 kOhms | ±0.1% | 1W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.033 (0.84mm) | |
|
TNPU12062K21BZEN00RES SMD 2.21K OHM 0.1% 1/4W 1206 |
8,278 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 2.21 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU1206590RBZEN00RES SMD 590 OHM 0.1% 1/4W 1206 |
6,220 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 590 Ohms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU12062K20BZEN00RES SMD 2.2K OHM 0.1% 1/4W 1206 |
6,265 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 2.2 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU12064K99BZEN00RES SMD 4.99K OHM 0.1% 1/4W 1206 |
7,665 | 3.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 4.99 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
35604R7FTRES 3560 4R7 1% |
9,533 | 3.07 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 3560, CGS | Active | 4.7 Ohms | ±1% | 6W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 0.457 L x 0.270 W (11.60mm x 6.85mm) | 0.047 (1.20mm) | |
.jpg)
|
HVC1206H-33MJ8RES SMD 33M OHM 5% 1/4W 1206 |
9,668 | 3.09 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 33 MOhms | ±5% | 0.25W, 1/4W | Thick Film | High Voltage, Non-Magnetic | ±100ppm/°C | -55°C ~ 300°C | - | 0.126 L x 0.059 W (3.20mm x 1.50mm) | 0.022 (0.55mm) | |
|
HVCB2010FDC1M00RES 1M OHM 1% 1W 2010 |
9,743 | 3.12 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 1 MOhms | ±1% | 1W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
RG1005V-221-P-T1RES SMD 220 OHM 0.02% 1/16W 0402 |
9,711 | 2.63 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 220 Ohms | ±0.02% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±5ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
SMF724KJTSMF 7W 24K 5% TAPED |
9,328 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 24 kOhms | ±5% | 7W | Metal Film | - | ±100ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW720RJTSMW 7W 20R 5% TAPED |
7,506 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 20 Ohms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMF743KJTSMF 7W 43K 5% TAPED |
9,549 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 43 kOhms | ±5% | 7W | Metal Film | - | ±100ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) | |
|
|
SMW7R47JTSMW 7W R47 5% TAPED |
5,224 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SM | Active | 470 mOhms | ±5% | 7W | Wirewound | - | ±200ppm/°C | -55°C ~ 200°C | - | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.390 (9.90mm) |
