| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHXA500ARA220MF61GCAP ALUM POLY HYB 22UF 50V SMD |
8,896 | 1.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HXA | Not For New Designs | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 750 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
APXG160ARA561MHA0GCAP ALUM POLY 560UF 20% 16V SMD |
8,876 | 1.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NPCAP™-PXG | Active | Polymer | 560 µF | ±20% | 16 V | 18mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.406 (10.30mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-CS1D100RCAP ALUM POLY 10UF 20% 20V SMD |
7,690 | 1.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CS | Not For New Designs | Polymer | 10 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.047 (1.20mm) | - | Surface Mount |
|
PCX1V100MCL1GSCAP ALUM POLY 10UF 20% 35V SMD |
6,825 | 1.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PCX | Active | Polymer | 10 µF | ±20% | 35 V | 85mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 800 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.236 (6.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
A759MS566M1KAAE045CAP ALUM POLY 56UF 20% 80V T/H |
6,053 | 2.76 |
RFQ |
Datasheet |
Bulk | A759 | Active | Polymer | 56 µF | ±20% | 80 V | 45mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 131.5 mA @ 120 Hz | 2.63 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
APXG200ARA391MJ80GCAP ALUM POLY 390UF 20% 20V SMD |
9,791 | 1.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NPCAP™-PXG | Active | Polymer | 390 µF | ±20% | 20 V | 22mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.65 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.315 (8.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
HHXB250ARA101MF80GCAP ALUM POLY HYB 100UF 25V SMD |
5,795 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HXB | Not For New Designs | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXB350ARA680MF80GCAP ALUM POLY HYB 68UF 35V SMD |
9,603 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HXB | Not For New Designs | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
PCS1A271MCL1GSCAP ALUM POLY 270UF 20% 10V SMD |
5,631 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PCS | Active | Polymer | 270 µF | ±20% | 10 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
A769MS107M1JLAS018ALUMINUM ELECTROLYTIC, SOLID POL |
9,347 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | A769 | Active | Polymer | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-SX0E221ERCAP ALUM POLY 220UF 20% 2.5V SMD |
9,844 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap SX | Active | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.079 (2.00mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
A765MU477M1CLAE016CAP ALUM POLY 470UF 20% 16V SMD |
6,178 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | A765 | Active | Polymer | 470 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 236 mA @ 120 Hz | 4.72 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.508 (12.90mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
A767KN826M1VLAE031CAP ALUM POLY 82UF 20% 35V SMD |
6,358 | 1.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | A767 | Active | Polymer | 82 µF | ±20% | 35 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
A758EK336M1EAAE040CAP ALUM POLY 33UF 20% 25V T/H |
11,194 | 0.70 |
RFQ |
Datasheet |
Bulk | A758 | Active | Polymer | 33 µF | ±20% | 25 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | - | Through Hole |
|
EEF-CX1C330RCAP ALUM POLY 33UF 20% 16V SMD |
8,257 | 1.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CX | Not For New Designs | Polymer | 33 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.075 (1.90mm) | - | Surface Mount |
|
|
EEF-CS1A470RCAP ALUM POLY 47UF 20% 10V SMD |
7,213 | 1.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CS | Not For New Designs | Polymer | 47 µF | ±20% | 10 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.047 (1.20mm) | - | Surface Mount |
|
|
HHXA250ARA101MF80GCAP ALUM POLY HYB 100UF 25V SMD |
6,294 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HXA | Not For New Designs | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXA500ARA330MF80GCAP ALUM POLY HYB 33UF 50V SMD |
9,833 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HXA | Not For New Designs | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

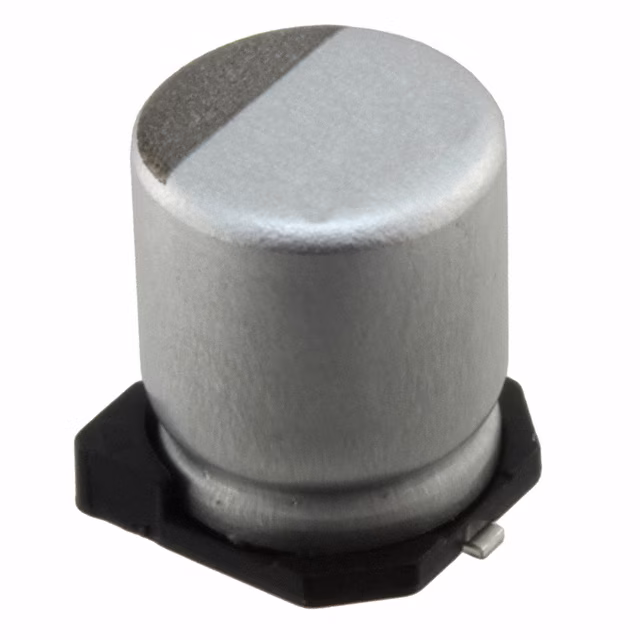

HHXA630ARA220MF80GCAP ALUM POLY HYB 22UF 63V SMD |
5,280 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HXA | Not For New Designs | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
35PFV47M6.3X6.1CAP ALUM POLY HYB 47UF 35V SMD |
6,905 | 1.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PFV | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 450 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
