| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-FP1E331APCAP ALUM 330UF 20% 25V SMD |
13,166 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP | Active | 330 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FP1V101APCAP ALUM 100UF 20% 35V SMD |
13,252 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP | Active | 100 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-FK1E471PCAP ALUM 470UF 20% 25V SMD |
5,770 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 637.5 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FK1V331PCAP ALUM 330UF 20% 35V SMD |
9,085 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 637.5 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

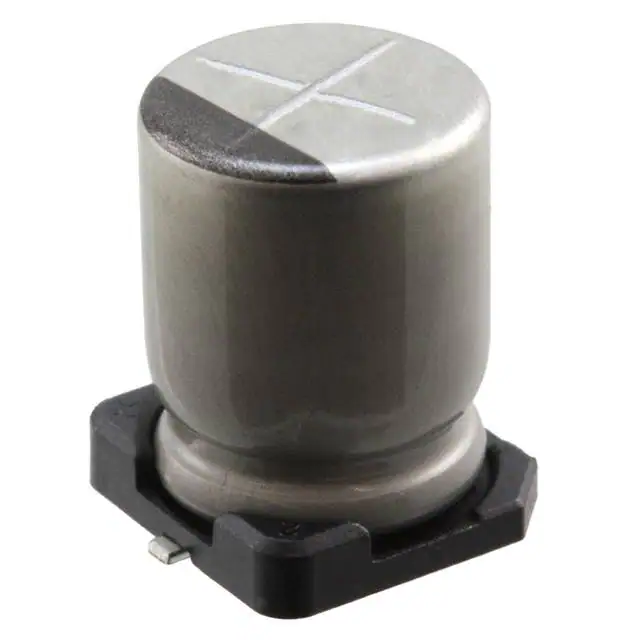

ULH2W2R2MNL1GSCAP ALUM 2.2UF 20% 450V SMD |
8,117 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULH | Active | 2.2 µF | ±20% | 450 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.433 (11.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EMZA500ADA221MJA0GCAP ALUM 220UF 20% 50V SMD |
8,330 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZA | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 180 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
ULH2G3R3MNL1GSCAP ALUM 3.3UF 20% 400V SMD |
7,298 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULH | Active | 3.3 µF | ±20% | 400 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.433 (11.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
35YXF220MEFC10X12.5CAP ALUM 220UF 20% 35V RADIAL |
11,762 | 0.48 |
RFQ |
Datasheet |
Bulk | YXF | Active | 220 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 406 mA @ 120 Hz | 580 mA @ 100 kHz | 160 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
EEE-FK1E471GPCAP ALUM 470UF 20% 25V SMD |
6,501 | 1.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 470 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 637.5 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEU-FM1H471BCAP ALUM 470UF 20% 50V RADIAL |
5,610 | 1.21 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FM-A | Active | 470 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.695 A @ 120 Hz | 2.26 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FM1V681BCAP ALUM 680UF 20% 35V RADIAL |
8,550 | 1.21 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FM-A | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EMZA250ADA471MJA0GCAP ALUM 470UF 20% 25V SMD |
5,918 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZA | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 425 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEE-TG1J101UPCAP ALUM 100UF 20% 63V SMD |
8,943 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 100 µF | ±20% | 63 V | 800mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 97.5 mA @ 120 Hz | 150 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UHE1H221MPDCAP ALUM 220UF 20% 50V RADIAL |
14,054 | 0.71 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 220 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 735 mA @ 120 Hz | 1.05 A @ 100 kHz | 84 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|

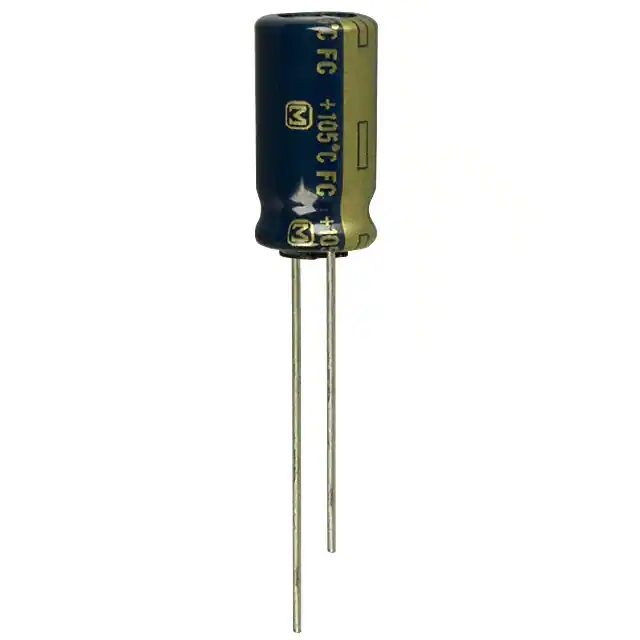

EEU-FC1V221LCAP ALUM 220UF 20% 35V RADIAL |
14,987 | 0.72 |
RFQ |
Datasheet |
Bulk | FC | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 474.5 mA @ 120 Hz | 730 mA @ 100 kHz | 85 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.591 (15.00mm) | - | Through Hole |
|

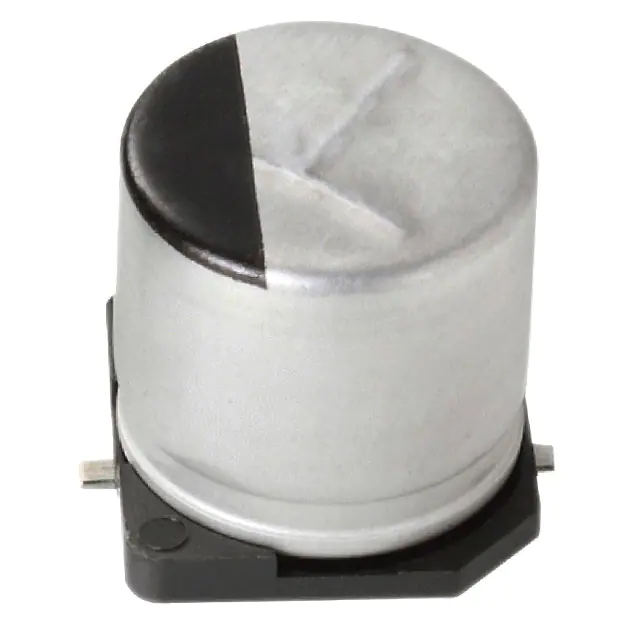

EEE-FT1V681UPCAP ALUM 680UF 20% 35V SMD |
6,960 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 680 µF | ±20% | 35 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
35ZLH470MEFC10X16CAP ALUM 470UF 20% 35V RADIAL |
12,771 | 0.74 |
RFQ |
Datasheet |
Bulk | ZLH | Active | 470 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 968 mA @ 120 Hz | 1.76 A @ 100 kHz | 28 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
50ZLH330MEFC10X23CAP ALUM 330UF 20% 50V RADIAL |
13,894 | 0.74 |
RFQ |
Datasheet |
Bulk | ZLH | Active | 330 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.029 A @ 120 Hz | 1.87 A @ 100 kHz | 28 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

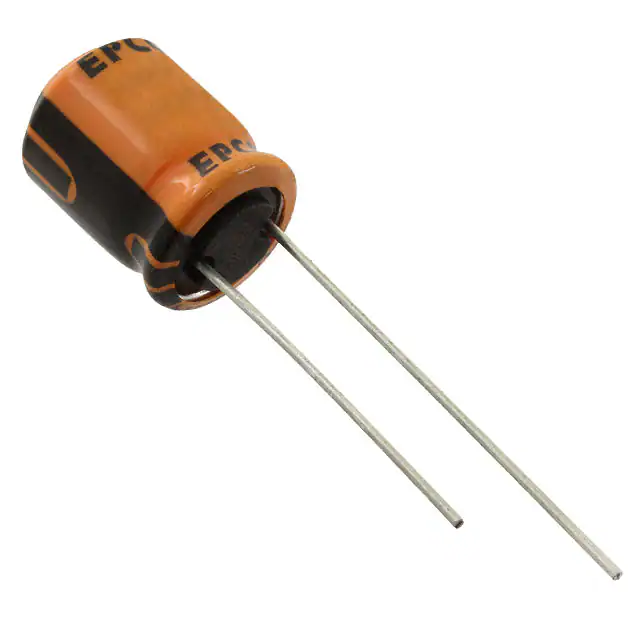

B41858C7227M000CAP ALUM 220UF 20% 35V RADIAL |
11,161 | 0.76 |
RFQ |
Datasheet |
Bulk | B41858 | Active | 220 µF | ±20% | 35 V | 129mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 746 mA @ 100 kHz | 113 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
UVZ1E102MPDCAP ALUM 1000UF 20% 25V RADIAL |
14,120 | 0.78 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 1000 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 782 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
