| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSC125V829CAP ALUM 829UF 125V QC TERM |
4,855 | 14.14 |
RFQ |
Datasheet |
Bag | MSC | Active | 829 µF | - | 125 V | - | - | -40°C ~ 65°C | - | - | Motor Start | - | - | - | 0.630 (16.00mm) | 1.810 Dia (45.97mm) | 4.380 (111.25mm) | - | Chassis Mount |
|
381LX231M550A452CAP ALUM 230UF 20% 550V SNAP |
4,317 | 14.17 |
RFQ |
Datasheet |
Bulk | 381LX | Active | 230 µF | ±20% | 550 V | 818mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.75 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
861111486036CAP ALUM 470UF 20% 450V SNAP |
2,019 | 14.30 |
RFQ |
Datasheet |
Tray | WCAP-AIL5 | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.415 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.929 (49.00mm) | - | Through Hole |
|
861221486022CAP ALUM 390UF 20% 450V SNAP |
4,147 | 14.31 |
RFQ |
Datasheet |
Tray | WCAP-AIE8 | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 3.2844 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.732 (44.00mm) | - | Through Hole |
|
380LX281M600A052CAP ALUM 280UF 20% 600V SNAP |
1,676 | 14.56 |
RFQ |
Datasheet |
Bulk | 380LX | Active | 280 µF | ±20% | 600 V | 723mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.87 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
381LX281M550A052CAP ALUM 280UF 20% 550V SNAP |
2,941 | 14.59 |
RFQ |
Datasheet |
Bulk | 381LX | Active | 280 µF | ±20% | 550 V | 655mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 2 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
861011487026CAP ALUM 470UF 20% 450V SNAP |
4,676 | 15.07 |
RFQ |
Datasheet |
Tray | WCAP-AIG8 | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.89 A @ 120 Hz | 3.9882 A @ 100 kHz | - | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.732 (44.00mm) | - | Through Hole |
|
861101486027CAP ALUM 560UF 20% 450V SNAP |
1,558 | 15.11 |
RFQ |
Datasheet |
Tray | WCAP-AIL8 | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.78 A @ 120 Hz | 3.8364 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.929 (49.00mm) | - | Through Hole |
|
|
380LX151M600A032CAP ALUM 150UF 20% 600V SNAP |
4,761 | 17.05 |
RFQ |
Datasheet |
Bulk | 380LX | Active | 150 µF | ±20% | 600 V | 1.319Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.27 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MSC250V189CAP ALUM 189UF 250V QC TERM |
2,135 | 17.16 |
RFQ |
Datasheet |
Bag | MSC | Active | 189 µF | - | 250 V | - | - | -40°C ~ 65°C | - | - | Motor Start | - | - | - | 0.880 (22.35mm) | 2.060 Dia (52.32mm) | 4.380 (111.25mm) | - | Chassis Mount |
|
|
861101487032CAP ALUM 560UF 20% 450V SNAP |
3,390 | 17.19 |
RFQ |
Datasheet |
Tray | WCAP-AIL8 | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.002 A @ 100 kHz | - | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.732 (44.00mm) | - | Through Hole |
|

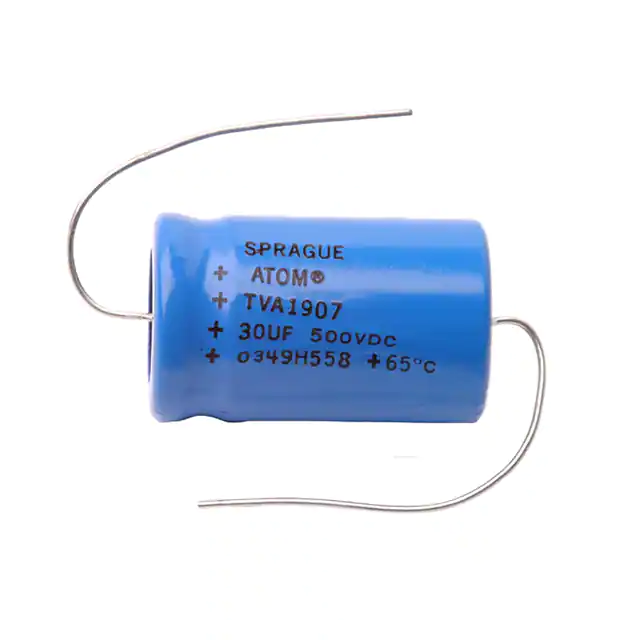

CP-AT-30-500VCAP ALUM 30UF 500V AXIAL |
1,545 | 16.47 |
RFQ |
Bulk | - | Active | 30 µF | - | 500 V | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | |
|
DCMC123U050AH2BCAP ALUM 12000UF 50V SCREW |
4,555 | 23.38 |
RFQ |
Datasheet |
Bulk | DCMC | Active | 12000 µF | -10%, +75% | 50 V | 25.9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.7 A @ 120 Hz | 7.504 A @ 10 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 2.687 (68.25mm) | - | Chassis Mount |
|

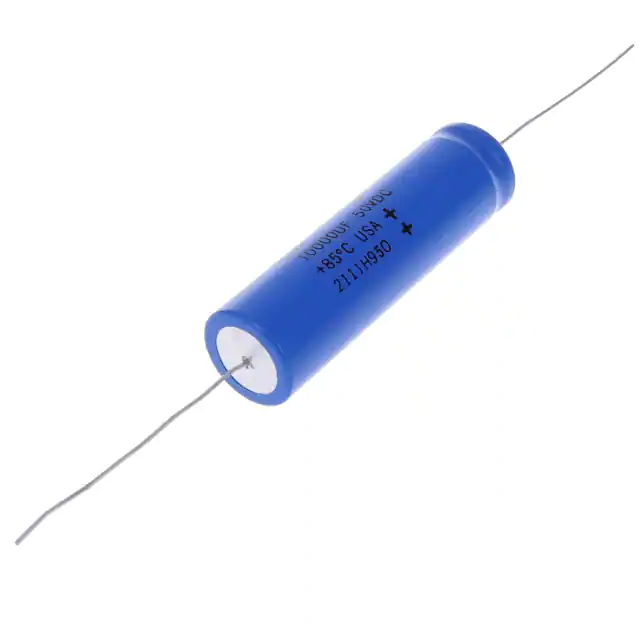

53D103G050JT7CAP ALUM 10000UF 50V AXIAL |
1,141 | 24.92 |
RFQ |
Datasheet |
Bulk | 53D | Active | 10000 µF | -10%, +75% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.012 Dia x 3.642 L (25.70mm x 92.50mm) | - | - | Through Hole |
|
CAP-20/440CAP FILM 20UF 370-440V OVL |
3,042 | 23.90 |
RFQ |
Datasheet |
Box | HCK, Motor Run | Active | 20 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | - | - | - | Chassis Mount |
|
THA302M060AD0CCAP ALUM 3000UF 20% 60V FLATPACK |
2,788 | 23.99 |
RFQ |
Datasheet |
Bulk | THA | Active | 3000 µF | ±20% | 60 V | 50mOhm @ 120Hz | 5000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.96 A @ 20 kHz | - | 0.394 (10.00mm) | 2.618 L x 0.953 W (66.50mm x 24.20mm) | 0.335 (8.50mm) | - | Through Hole |
|

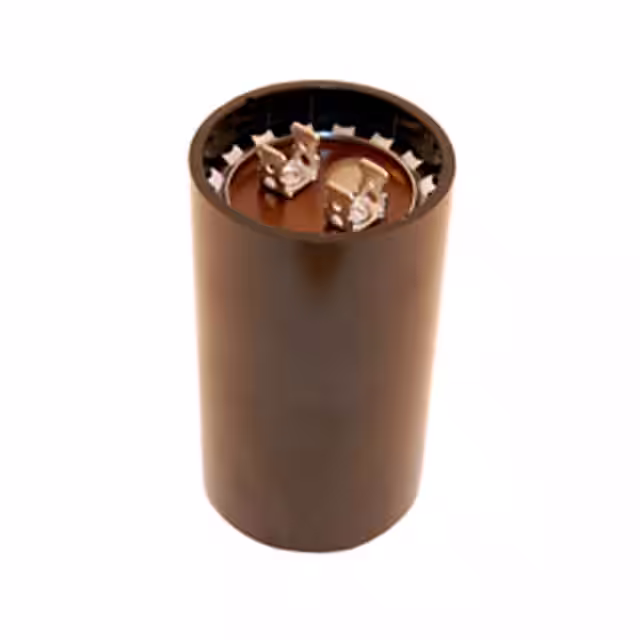

MSC330V216CAP ALUM 216UF 330V QC TERM |
3,812 | 25.23 |
RFQ |
Datasheet |
Bag | MSC | Active | 216 µF | - | 330 V | - | - | -40°C ~ 65°C | - | - | Motor Start | - | - | - | 0.880 (22.35mm) | 2.560 Dia (65.02mm) | 4.380 (111.25mm) | - | Chassis Mount |
|
|
861101487031CAP ALUM 470UF 20% 450V SNAP |
1,696 | 15.24 |
RFQ |
Datasheet |
Tray | WCAP-AIL8 | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.75 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.535 (39.00mm) | - | Through Hole |
|
MSC330V108CAP ALUM 108UF 330V QC TERM |
4,047 | 15.33 |
RFQ |
Datasheet |
Bag | MSC | Active | 108 µF | - | 330 V | - | - | -40°C ~ 65°C | - | - | Motor Start | - | - | - | 0.880 (22.35mm) | 2.060 Dia (52.32mm) | 4.380 (111.25mm) | - | Chassis Mount |
|
MSC250V161CAP ALUM 161UF 250V QC TERM |
2,149 | 15.49 |
RFQ |
Datasheet |
Bag | MSC | Active | 161 µF | - | 250 V | - | - | -40°C ~ 65°C | - | - | Motor Start | - | - | - | 0.880 (22.35mm) | 2.060 Dia (52.32mm) | 4.380 (111.25mm) | - | Chassis Mount |
