| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EGXF250ELL222MU20SCAP ALUM 2200UF 20% 25V RAD TH |
5,535 | 2.18 |
RFQ |
Datasheet |
Bulk | GXF | Active | 2200 µF | ±20% | 25 V | 30mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.335 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
CGS104U030X5LCAP ALUM 100000UF 30V SCREW |
1,706 | 94.19 |
RFQ |
Datasheet |
Bulk | CGS | Active | 100000 µF | -10%, +75% | 30 V | 8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.4 A @ 120 Hz | 29.12 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
EKZN500ELL821ML20SCAP ALUM 820UF 20% 50V RADIAL |
8,977 | 2.18 |
RFQ |
Datasheet |
Bulk | KZN | Active | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.842 A @ 120 Hz | 3.07 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UBX2G4R7MPLCAP ALUM 4.7UF 20% 400V RADIAL |
8,281 | 2.20 |
RFQ |
Datasheet |
Bulk | UBX | Active | 4.7 µF | ±20% | 400 V | - | 1000 Hrs @ 150°C | -25°C ~ 150°C | Polar | - | Automotive | 83 mA @ 120 Hz | 149.4 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
.JPG)
|
25TRV2200M18X16.5CAP ALUM 2200UF 20% 25V SMD |
9,474 | 3.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.55 A @ 100 kHz | 64 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|

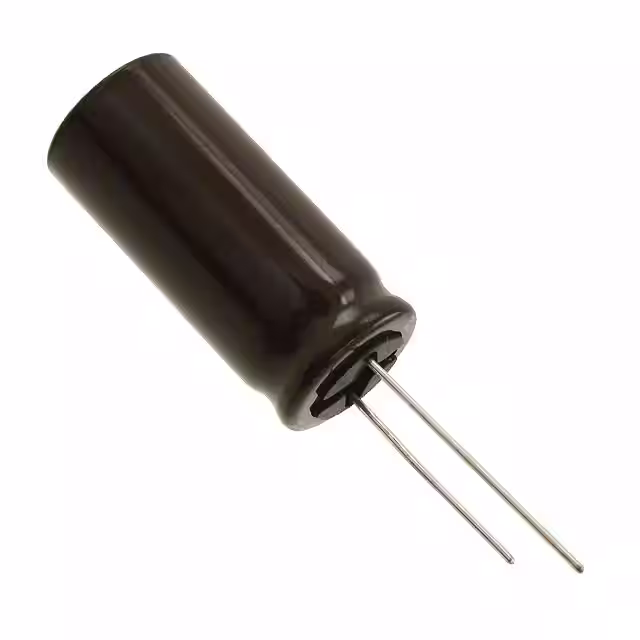

UPJ1A562MHDCAP ALUM 5600UF 20% 10V RADIAL |
7,527 | 2.22 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 5600 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.34 A @ 120 Hz | 2.61 A @ 10 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UFG1A472MHMCAP ALUM 4700UF 20% 10V RADIAL |
9,215 | 2.23 |
RFQ |
Datasheet |
Bulk | UFG | Not For New Designs | 4700 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.84 A @ 120 Hz | 2.116 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
CGS102T450W4CCAP ALUM 1000UF 450V SCREW |
2,002 | 99.95 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1000 µF | -10%, +50% | 450 V | 82mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 8.25 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount |
|

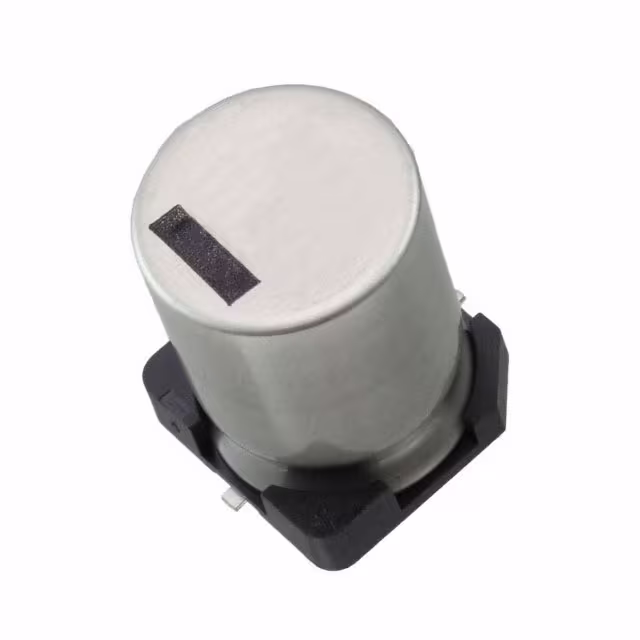

16TGV2200M16X21.5CAP ALUM 2200UF 20% 16V SMD |
8,495 | 3.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TGV | Active | 2200 µF | ±20% | 16 V | 41mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 990 mA @ 120 Hz | 1.65 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EEU-FR0J682LCAP ALUM 6800UF 20% 6.3V RADIAL |
9,831 | 2.27 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 6800 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.75 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
UEP1J221MHDCAP ALUM 220UF 20% 63V RADIAL |
8,671 | 2.28 |
RFQ |
Datasheet |
Bulk | UEP | Not For New Designs | 220 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 405 mA @ 120 Hz | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UEP0J332MHDCAP ALUM 3300UF 20% 6.3V RADIAL |
8,860 | 2.28 |
RFQ |
Datasheet |
Bulk | UEP | Not For New Designs | 3300 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.2765 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

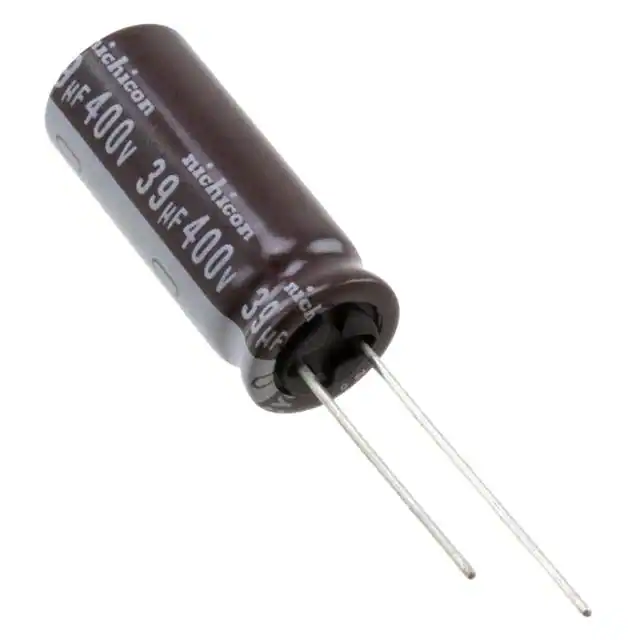

UCY2G390MHDCAP ALUM 39UF 20% 400V RADIAL |
8,290 | 2.28 |
RFQ |
Datasheet |
Bulk | UCY | Active | 39 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 465 mA @ 120 Hz | 930 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.299 (33.00mm) | - | Through Hole |
|

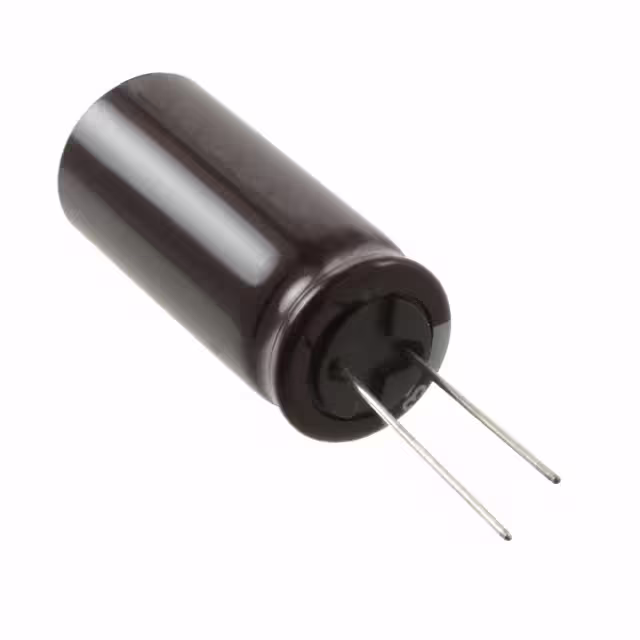

UPJ0J153MHDCAP ALUM 15000UF 20% 6.3V RADIAL |
9,868 | 2.29 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 15000 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.66 A @ 120 Hz | 2.96 A @ 10 kHz | 22 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|

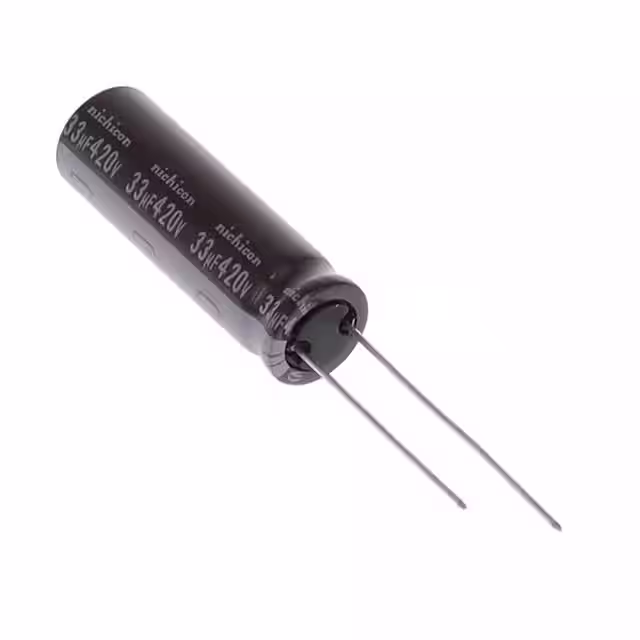

UPHW6330MPDCAP ALUM 33UF 20% 420V RADIAL |
9,474 | 2.30 |
RFQ |
Datasheet |
Bulk | UPH | Active | 33 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
CGS153U100X4CCAP ALUM 15000UF 100V SCREW |
954 | 103.43 |
RFQ |
Datasheet |
Bulk | CGS | Active | 15000 µF | -10%, +75% | 100 V | 51mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 120 Hz | 10.27 A @ 10 kHz | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
UKL0J472MHDCAP ALUM 4700UF 20% 6.3V RADIAL |
7,763 | 2.32 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
25TGV2200M16X21.5CAP ALUM 2200UF 20% 25V SMD |
5,395 | 3.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TGV | Active | 2200 µF | ±20% | 25 V | 41mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 990 mA @ 120 Hz | 1.65 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
UCY2D151MHDCAP ALUM 150UF 20% 200V RADIAL |
8,685 | 2.35 |
RFQ |
Datasheet |
Bulk | UCY | Active | 150 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 965 mA @ 120 Hz | 1.93 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|

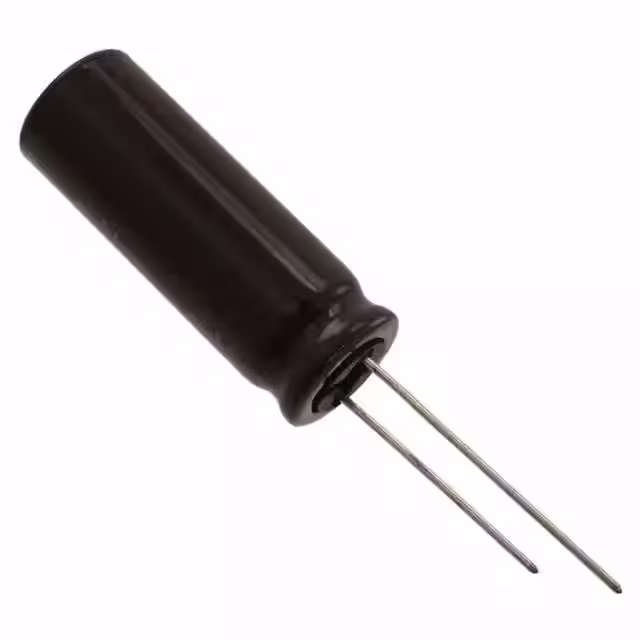

UPA1E272MHDCAP ALUM 2700UF 20% 25V RADIAL |
7,241 | 2.36 |
RFQ |
Datasheet |
Bulk | UPA | Active | 2700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 2.94 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
