| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPJ1V122MHDCAP ALUM 1200UF 20% 35V RADIAL |
5,091 | 1.72 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 1200 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 2.18 A @ 10 kHz | 31 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
400CXW22MEFR8X35CAP ALUM 22UF 20% 400V RADIAL |
7,644 | 1.72 |
RFQ |
Datasheet |
Bulk | CXW | Active | 22 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 330 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

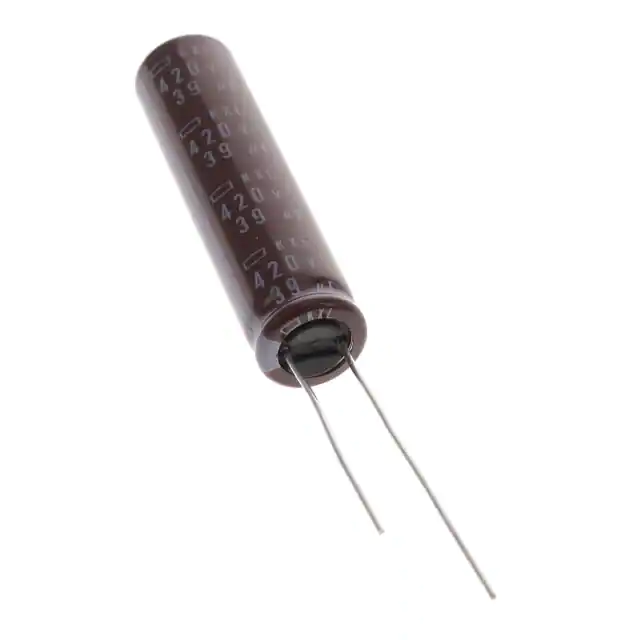

EKXL421ELL390MJ40SCAP ALUM 39UF 20% 420V RADIAL TH |
7,948 | 1.73 |
RFQ |
Datasheet |
Bulk | KXL | Active | 39 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 1 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UPA1A332MHDCAP ALUM 3300UF 20% 10V RADIAL |
6,807 | 1.73 |
RFQ |
Datasheet |
Bulk | UPA | Active | 3300 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.938 A @ 120 Hz | 2.28 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

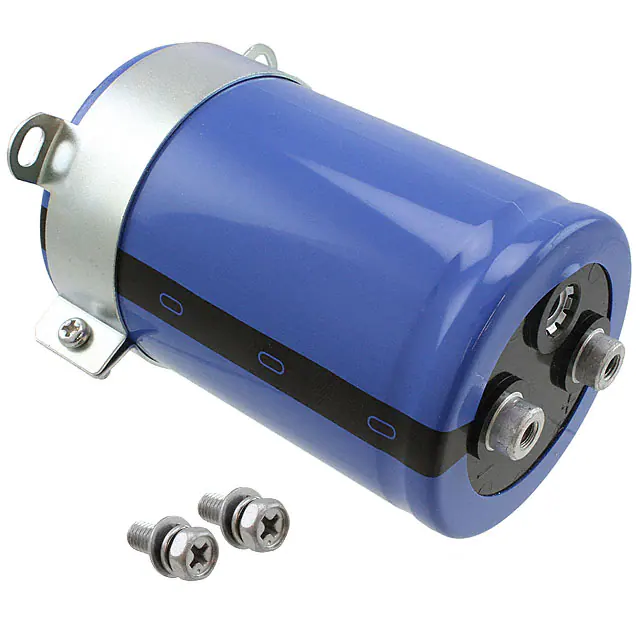

LNR1K473MSECAP ALUM 47000UF 20% 80V SCREW |
3,813 | 48.91 |
RFQ |
Datasheet |
Bulk | LNR | Active | 47000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 120 Hz | 14.605 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
ALS70A363MF100CAP ALUM 36000UF 20% 100V SCREW |
2,510 | 49.11 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 36000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 100 Hz | 27.7 A @ 10 kHz | 12 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
EEU-FK1E152LCAP ALUM 1500UF 20% 25V RAD TH |
5,191 | 1.75 |
RFQ |
Datasheet |
Bulk | FK | Active | 1500 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.712 A @ 120 Hz | 2.14 A @ 100 kHz | 25 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
EEU-FK0J332LCAP ALUM 3300UF 20% 6.3V RAD TH |
5,534 | 1.75 |
RFQ |
Datasheet |
Bulk | FK | Active | 3300 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.712 A @ 120 Hz | 2.14 A @ 100 kHz | 25 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
UBT1E102MHDCAP ALUM 1000UF 20% 25V RADIAL |
7,098 | 1.75 |
RFQ |
Datasheet |
Bulk | UBT | Active | 1000 µF | ±20% | 25 V | - | 10000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.173 A @ 120 Hz | 1.75 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPJ1V152MHD6CAP ALUM 1500UF 20% 35V RADIAL |
8,887 | 1.75 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 1500 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.84 A @ 120 Hz | 2.05 A @ 10 kHz | 40 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

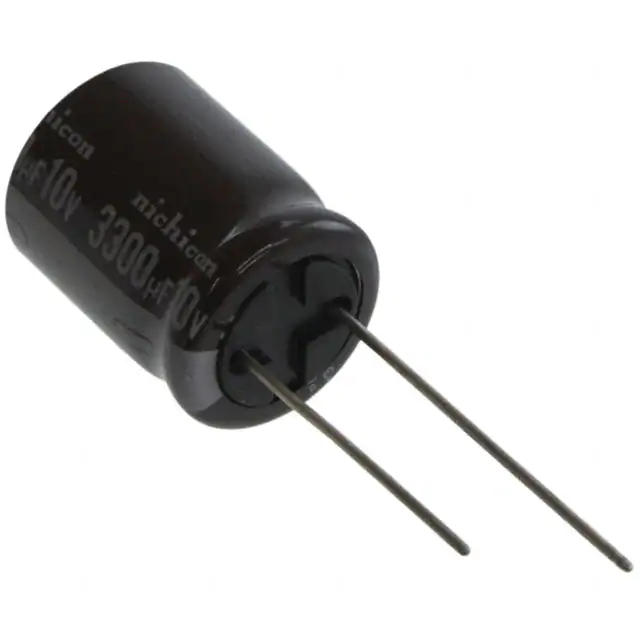

UPM1A332MHD6CAP ALUM 3300UF 20% 10V RADIAL |
8,141 | 1.75 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 3300 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 1.85 A @ 10 kHz | 31 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UHW2A391MHD3TNCAP ALUM 390UF 20% 100V RADIAL |
9,046 | 3.33 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UHW | Not For New Designs | 390 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.135 A @ 120 Hz | 2.27 A @ 100 kHz | 47 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPM1J221MHD6CAP ALUM 220UF 20% 63V RADIAL |
5,807 | 1.77 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 220 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.12 A @ 10 kHz | 70 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
ALS71A123MF200CAP ALUM 12000UF 20% 200V SCREW |
4,111 | 50.64 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 12000 µF | ±20% | 200 V | 29mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.8 A @ 100 Hz | 22.7 A @ 10 kHz | 22 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
UVY1J102MHDCAP ALUM 1000UF 20% 63V RADIAL |
6,900 | 1.77 |
RFQ |
Datasheet |
Bulk | UVY | Not For New Designs | 1000 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.0695 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UBT1K221MHDCAP ALUM 220UF 20% 80V RADIAL |
7,077 | 1.78 |
RFQ |
Datasheet |
Bulk | UBT | Active | 220 µF | ±20% | 80 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 620 mA @ 120 Hz | 1.24 A @ 100 kHz | 180 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPA1E472MHD1TNCAP ALUM 4700UF 20% 25V RADIAL |
9,684 | 3.36 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 4700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.423 A @ 120 Hz | 2.85 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EDH476M200A9TAACAP ALUM 47UF 20% 200V SMD |
7,192 | 2.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDH | Active | 47 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 275 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|

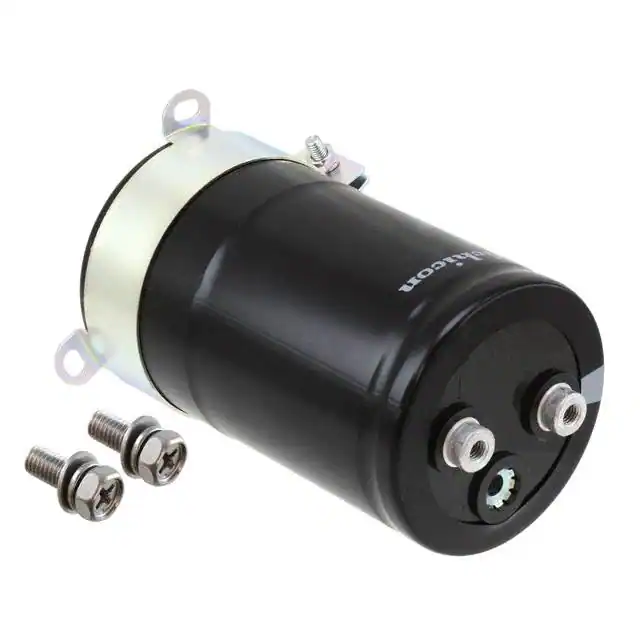

LNX2W222MSEGCAP ALUM 2200UF 20% 450V SCREW |
4,026 | 52.00 |
RFQ |
Datasheet |
Bulk | LNX | Active | 2200 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.449 (113.00mm) | - | Chassis Mount |
|
UPJ1J471MHD6CAP ALUM 470UF 20% 63V RADIAL |
6,908 | 1.79 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 470 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.7 A @ 10 kHz | 63 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
