| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35ZLH1800MEFC12.5X35CAP ALUM 1800UF 20% 35V RADIAL |
7,372 | 1.68 |
RFQ |
Datasheet |
Bulk | ZLH | Active | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.142 A @ 120 Hz | 3.57 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
16PX6800MEFC16X25CAP ALUM 6800UF 20% 16V RADIAL |
5,981 | 1.69 |
RFQ |
Datasheet |
Bulk | PX | Active | 6800 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.185 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UHE1A472MHDCAP ALUM 4700UF 20% 10V RADIAL |
7,789 | 1.69 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 4700 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.304 A @ 120 Hz | 2.88 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.398 (35.50mm) | - | Through Hole |
|
25PX33MEFC5X11CAP ALUM 33UF 20% 25V RADIAL |
10,488 | 0.29 |
RFQ |
Datasheet |
Bulk | PX | Active | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 69 mA @ 120 Hz | 103.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UCQ1V220MCL1GBCAP ALUM 22UF 20% 35V SMD |
11,380 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCQ | Active | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 40 mA @ 120 Hz | 60 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UCD1E221MNL1GSCAP ALUM 220UF 20% 25V SMD |
10,437 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 220 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
MAL213838109E3CAP ALUM 10UF 20% 63V AXIAL |
6,002 | 3.82 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 138 AML | Active | 10 µF | ±20% | 63 V | 13Ohm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 59 mA @ 100 Hz | 82.6 mA @ 10 kHz | 8 Ohms | - | 0.303 Dia x 0.500 L (7.70mm x 12.70mm) | - | - | Through Hole |
|
UPA0J102MPD6TDCAP ALUM 1000UF 20% 6.3V RADIAL |
13,045 | 0.74 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 1000 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 675 mA @ 120 Hz | 900 mA @ 100 kHz | 63 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
UPA1A102MPD6TDCAP ALUM 1000UF 20% 10V RADIAL |
13,915 | 0.86 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 1000 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 675 mA @ 120 Hz | 900 mA @ 100 kHz | 63 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
MAL211837101E3CAP ALUM 100UF 20% 40V AXIAL |
6,643 | 3.87 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 118 AHT | Active | 100 µF | ±20% | 40 V | 1.75Ohm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 191.1 mA @ 10 kHz | 1.3 Ohms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole |
|
|
MAL211838479E3CAP ALUM 47UF 20% 63V AXIAL |
5,211 | 3.87 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 118 AHT | Active | 47 µF | ±20% | 63 V | 2.4Ohm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 163.8 mA @ 10 kHz | 1.5 Ohms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole |
|
MAL213838101E3CAP ALUM 100UF 20% 63V AXIAL |
6,124 | 3.87 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 138 AML | Active | 100 µF | ±20% | 63 V | 1.1Ohm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 280 mA @ 100 Hz | 392 mA @ 10 kHz | 800 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
|
MAL213839479E3CAP ALUM 47UF 20% 100V AXIAL |
9,990 | 3.87 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 138 AML | Active | 47 µF | ±20% | 100 V | 2.4Ohm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 190 mA @ 100 Hz | 266 mA @ 10 kHz | 1.7 Ohms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
6.3YXJ220M5X11CAP ALUM 220UF 20% 6.3V RADIAL |
10,439 | 0.30 |
RFQ |
Datasheet |
Bulk | YXJ | Active | 220 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 250 mA @ 100 kHz | 400 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESW475M025AC3AACAP ALUM 4.7UF 20% 25V RADIAL |
10,453 | 0.30 |
RFQ |
Datasheet |
Box | ESW | Active | 4.7 µF | ±20% | 25 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

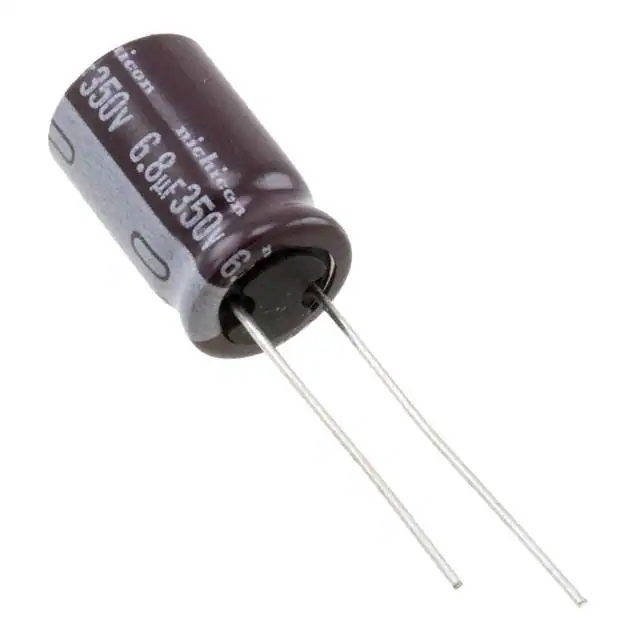

UCS2V6R8MPD1TDCAP ALUM 6.8UF 20% 350V RADIAL |
10,948 | 0.75 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCS | Active | 6.8 µF | ±20% | 350 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
860020275019CAP ALUM 1800UF 20% 10V RADIAL |
13,380 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 1800 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.0496 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UPM1C561MPD1TDCAP ALUM 560UF 20% 16V RADIAL |
14,059 | 0.76 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 560 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 775 mA @ 120 Hz | 950 mA @ 10 kHz | 75 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FS1C332CAP ALUM 3300UF 20% 16V RADIAL |
6,578 | 1.77 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 3300 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FC1E392LCAP ALUM 3900UF 20% 25V RADIAL |
7,922 | 2.54 |
RFQ |
Datasheet |
Bulk | FC | Active | 3900 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.678 A @ 120 Hz | 3.15 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.398 (35.50mm) | - | Through Hole |
