| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS683U075X5LCAP ALUM 68000UF 75V SCREW |
893 | 142.58 |
RFQ |
Datasheet |
Bulk | CGS | Active | 68000 µF | -10%, +75% | 75 V | 5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 120 Hz | 39 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
CGS382T350W4LCAP ALUM 3800UF 350V SCREW |
614 | 142.69 |
RFQ |
Datasheet |
Bulk | CGS | Active | 3800 µF | -10%, +50% | 350 V | 42mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.1 A @ 120 Hz | 12.15 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
LNT2W822MSEJBBCAP ALUM 8200UF 20% 450V SCREW |
792 | 142.82 |
RFQ |
Datasheet |
Bulk | LNT | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 32.5 A @ 120 Hz | 45.5 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LNT2W822MSEJBNCAP ALUM 8200UF 20% 450V SCREW |
416 | 142.82 |
RFQ |
Datasheet |
Bulk | LNT | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 32.5 A @ 120 Hz | 45.5 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LNU2W822MTEJCAP ALUM 8200UF 20% 450V SCREW |
806 | 142.82 |
RFQ |
Datasheet |
Bulk | LNU | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.7 A @ 120 Hz | 34.58 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
MAL210236472E3CAP ALUM 4700UF 20% 400V SCREW |
384 | 113.91 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 4700 µF | ±20% | 400 V | 31mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 21 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210276472E3CAP ALUM 4700UF 20% 400V SCREW |
603 | 113.91 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 4700 µF | ±20% | 400 V | 31mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 21 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
LNU2H562MSEJBBCAP ALUM 5600UF 20% 500V SCREW |
862 | 142.89 |
RFQ |
Datasheet |
Bulk | LNU | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 22.12 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
|
LNU2H562MSEJBNCAP ALUM 5600UF 20% 500V SCREW |
803 | 142.89 |
RFQ |
Datasheet |
Bulk | LNU | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 22.12 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
|
LNU2G103MSEJBBCAP ALUM 10000UF 20% 400V SCREW |
429 | 142.92 |
RFQ |
Datasheet |
Bulk | LNU | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.9 A @ 120 Hz | 36.26 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
|
LNU2G103MTEJCAP ALUM 10000UF 20% 400V SCREW |
837 | 142.92 |
RFQ |
Datasheet |
Bulk | LNU | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.9 A @ 120 Hz | 36.26 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
|
DCMC993T160FG2DCAP ALUM 99000UF 160V SCREW |
497 | 143.31 |
RFQ |
Datasheet |
Bulk | DCMC | Active | 99000 µF | -10%, +50% | 160 V | 4.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.8 A @ 120 Hz | 44.94 A @ 10 kHz | - | 1.250 (31.75mm) | 3.500 Dia (88.90mm) | 8.687 (220.65mm) | - | Chassis Mount |
|

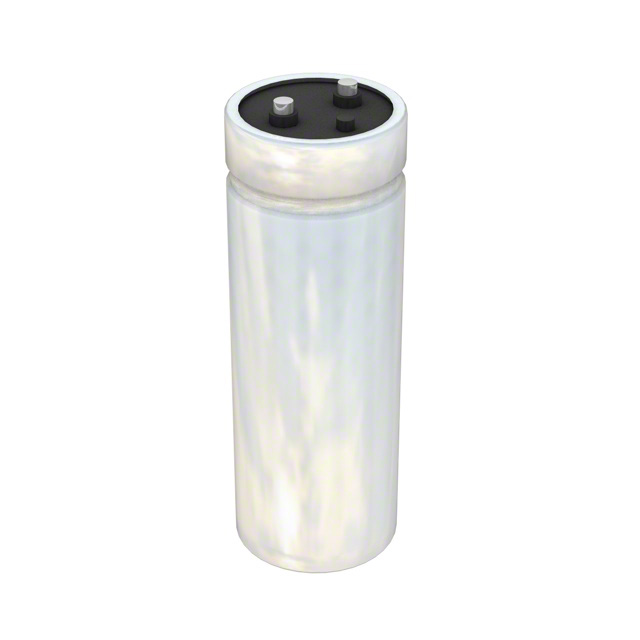

HES202G400V5LCAP ALUM 2000UF 400V SCREW |
376 | 143.33 |
RFQ |
Datasheet |
Bulk | HES | Active | 2000 µF | 0%, +50% | 400 V | 44mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.3 A @ 120 Hz | 8.979 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
MAL210227332E3CAP ALUM 3300UF 20% 450V SCREW |
788 | 114.53 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 3300 µF | ±20% | 450 V | 37mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | - | 24 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210267332E3CAP ALUM 3300UF 20% 450V SCREW |
415 | 114.53 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 3300 µF | ±20% | 450 V | 37mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | - | 24 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
450LSQ6800M90X151CAP ALUM 6800UF 20% 450V SCREW |
809 | 114.54 |
RFQ |
Datasheet |
Bulk | LSQ | Active | 6800 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 120 Hz | 22.066 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 6.063 (154.00mm) | - | Chassis Mount |
|
B43704A6398M000CAP ALUM 3900UF 20% 500V SCREW |
401 | 114.56 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 3900 µF | ±20% | 500 V | 24mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.1 A @ 100 Hz | - | 36 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount |
|
ALS70A123QS500CAP ALUM 12000UF 20% 500V SCREW |
678 | 143.68 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 12000 µF | ±20% | 500 V | 24mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.4 A @ 100 Hz | 34.6 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
CGH172T500V5LCAP ALUM 1700UF 500V SCREW |
488 | 143.78 |
RFQ |
Datasheet |
Bulk | CGH | Active | 1700 µF | -10%, +50% | 500 V | 149mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | - | - | - | 2.000 Dia (50.80mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
LNC2W123MSEJBBCAP ALUM 12000UF 20% 450V SCREW |
805 | 144.11 |
RFQ |
Datasheet |
Bulk | LNC | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38.2 A @ 120 Hz | 53.48 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.402 (188.00mm) | - | Chassis Mount |
