| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCMX144U075DG2BCAP ALUM 140000UF 75V SCREW |
319 | 120.63 |
RFQ |
Datasheet |
Bulk | DCMX | Active | 140000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.687 (220.65mm) | - | Chassis Mount |
|
|
604D122G050JP7CAP ALUM 1200UF 50V AXIAL |
2,939 | 96.95 |
RFQ |
Bulk | 604D | Active | 1200 µF | - | 50 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.7 A @ 100 kHz | - | - | 1.000 Dia x 2.625 L (25.40mm x 66.68mm) | - | - | Through Hole | |
|
|
520C272M420CC2FSCAP ALUM 2700UF 20% 420V SCREW |
792 | 120.64 |
RFQ |
Datasheet |
Bulk | 520C | Active | 2700 µF | ±20% | 420 V | - | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 4.187 (106.35mm) | - | Chassis Mount |
|
MAL210128683E3CAP ALUM 68000UF 20% 63V SCREW |
2,310 | 96.96 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 68000 µF | ±20% | 63 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.9 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210168683E3CAP ALUM 68000UF 20% 63V SCREW |
1,736 | 96.96 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 68000 µF | ±20% | 63 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.9 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
604D512F010JL7CAP ALUM 5100UF 10V AXIAL |
4,750 | 97.03 |
RFQ |
Datasheet |
Bulk | 604D | Active | 5100 µF | -10%, +50% | 10 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.000 Dia x 2.125 L (25.40mm x 53.98mm) | - | - | Through Hole |
|
|
LNR2C683MSEBCAP ALUM 68000UF 20% 160V SCREW |
601 | 120.75 |
RFQ |
Datasheet |
Bulk | LNR | Active | 68000 µF | ±20% | 160 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 22.3 A @ 120 Hz | 26.76 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNR2C683MSENCAP ALUM 68000UF 20% 160V SCREW |
333 | 120.75 |
RFQ |
Datasheet |
Bulk | LNR | Active | 68000 µF | ±20% | 160 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 22.3 A @ 120 Hz | 26.76 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
604D102F075JS5CAP ALUM 1000UF 75V AXIAL |
1,543 | 97.07 |
RFQ |
Datasheet |
Bulk | 604D | Active | 1000 µF | -10%, +50% | 75 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.000 Dia x 3.125 L (25.40mm x 79.38mm) | - | - | Through Hole |
|
CGS132T500V5CCAP ALUM 1300UF 500V SCREW |
959 | 120.90 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1300 µF | -10%, +50% | 500 V | 81mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 8.4 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
604D152G040JL7CAP ALUM 1500UF 40V AXIAL |
4,463 | 97.13 |
RFQ |
Bulk | 604D | Active | 1500 µF | - | 40 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.000 Dia x 2.125 L (25.40mm x 53.98mm) | - | - | Through Hole | |
|
|
E36D501CSS902MFF5UCAP ALUM 9000UF 20% 500V SCREW |
4,688 | 97.15 |
RFQ |
Bulk | U36D | Active | 9000 µF | ±20% | 500 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.240 (31.50mm) | 3.500 Dia (88.90mm) | 6.102 (155.00mm) | - | Chassis Mount | |
|
|
36DX222F350CC2ACAP ALUM 2200UF 350V SCREW |
1,050 | 97.15 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 2200 µF | -10%, +50% | 350 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126 (28.60mm) | 2.579 Dia (65.50mm) | 4.252 (108.00mm) | - | Chassis Mount |
|

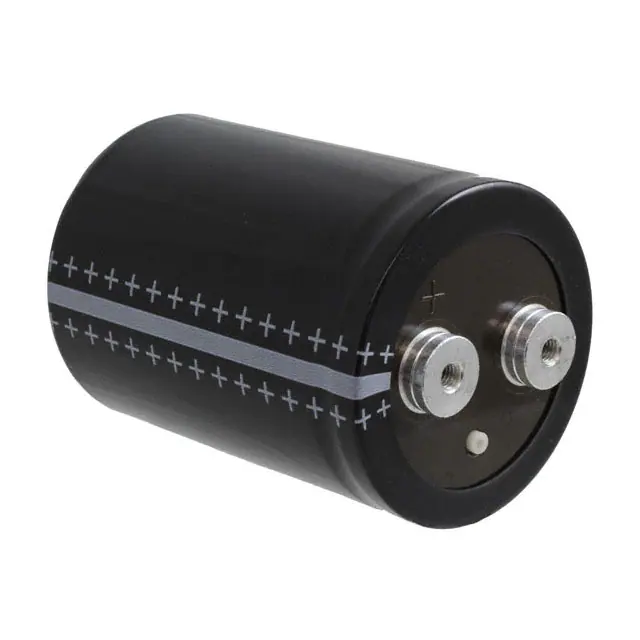

B43584A9478M000CAP ALUM 4700UF 20% 400V SCREW |
698 | 120.97 |
RFQ |
Datasheet |
Bulk | B43584 | Active | 4700 µF | ±20% | 400 V | 23mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | - | 28 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
MAL250037392E3CAP ALUM 3900UF 20% 450V SCREW |
2,186 | 97.23 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 3900 µF | ±20% | 450 V | 32mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.4 A @ 120 Hz | - | 25 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL250077392E3CAP ALUM 3900UF 20% 450V SCREW |
2,782 | 97.23 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 3900 µF | ±20% | 450 V | 32mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.4 A @ 120 Hz | - | 25 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
ALS71C682QP550CAP ALUM 6800UF 20% 550V SCREW |
315 | 121.03 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 6800 µF | ±20% | 550 V | 69mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.7 A @ 100 Hz | 27.1 A @ 10 kHz | 60 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
|
36DY222F350CC2ACAP ALUM 2200UF 350V SCREW |
2,351 | 97.30 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 2200 µF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126 (28.60mm) | 2.579 Dia (65.50mm) | 4.252 (108.00mm) | - | Chassis Mount |
|
|
604D512G010JL7CAP ALUM 5100UF 10V AXIAL |
2,410 | 97.31 |
RFQ |
Bulk | 604D | Active | 5100 µF | - | 10 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.000 Dia x 2.125 L (25.40mm x 53.98mm) | - | - | Through Hole | |
|
CGS2043U025X8LCAP ALUM 204000UF 25V SCREW |
580 | 121.08 |
RFQ |
Datasheet |
Bulk | CGS | Active | 204000 µF | -10%, +75% | 25 V | 6mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.9 A @ 120 Hz | 38.87 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
