| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VHT33M350CAP ALUM 33UF 20% 350V RADIAL |
8,490 | 2.15 |
RFQ |
Datasheet |
Bag | VHT | Active | 33 µF | ±20% | 350 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
108CKS063MCAP ALUM 1000UF 20% 63V RADIAL |
6,190 | 2.16 |
RFQ |
Datasheet |
Bulk | CKS | Active | 1000 µF | ±20% | 63 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.856 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|

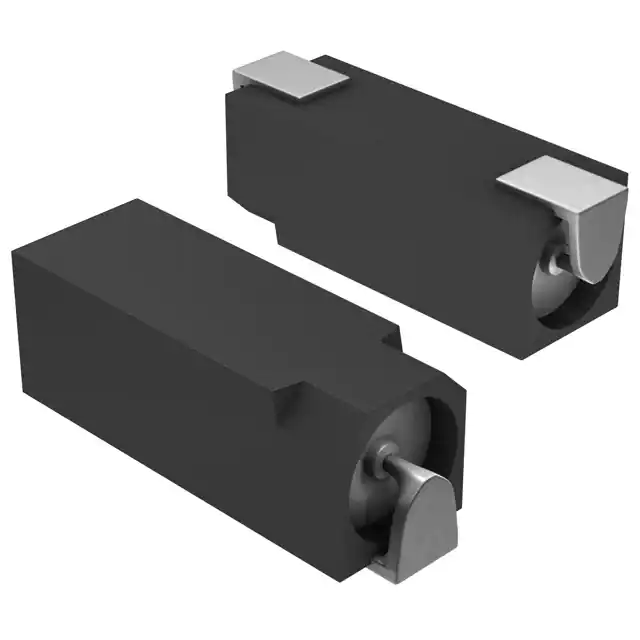

MAL213961109E3CAP ALUM 10UF 20% 50V SMD |
5,479 | 4.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 139 CLL | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 100 Hz | - | 7 Ohms | - | 0.563 L x 0.244 W (14.30mm x 6.20mm) | 0.272 (6.90mm) | 0.563 L x 0.244 W (14.30mm x 6.20mm) | Surface Mount |
|
MAL213827681E3CAP ALUM 680UF 20% 40V AXIAL |
8,828 | 4.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 138 AML | Active | 680 µF | ±20% | 40 V | 250mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 750 mA @ 100 Hz | - | 180 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
VHT4700M25CAP ALUM 4700UF 20% 25V RADIAL |
7,704 | 2.17 |
RFQ |
Datasheet |
Bag | VHT | Active | 4700 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
B41858D5568M000CAP ALUM 5600UF 20% 25V RADIAL |
7,038 | 3.67 |
RFQ |
Datasheet |
Bulk | B41858 | Active | 5600 µF | ±20% | 25 V | 20mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 3.864 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
VHT2200M50CAP ALUM 2200UF 20% 50V RADIAL |
7,075 | 2.18 |
RFQ |
Datasheet |
Bag | VHT | Active | 2200 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

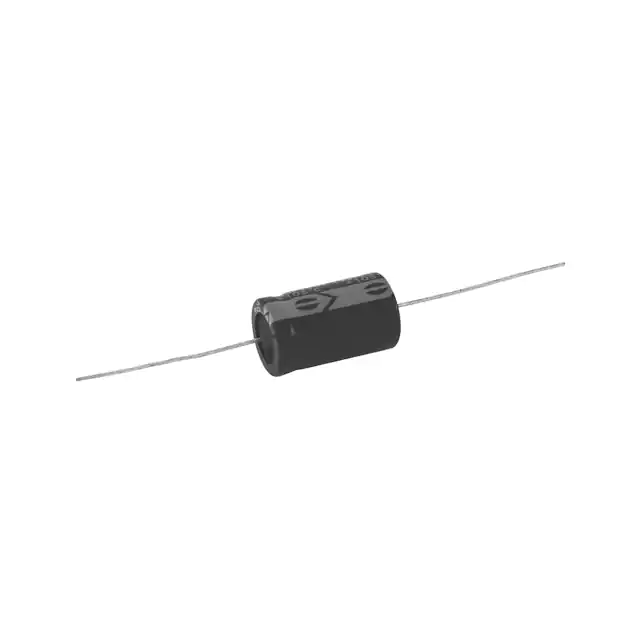

NEHH22M250EDCAP ALUM 22UF 250V AXIAL |
9,262 | 2.18 |
RFQ |
Datasheet |
Bag | NEHH | Active | 22 µF | -10%, +75% | 250 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 0.984 L (13.00mm x 25.00mm) | - | - | Through Hole |
|
B41896C7228M000CAP ALUM 2200UF 20% 35V RADIAL |
5,087 | 3.71 |
RFQ |
Datasheet |
Bulk | B41896 | Active | 2200 µF | ±20% | 35 V | 80mOhm @ 120Hz | 7000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.84 A @ 100 kHz | 20 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UHE1V392MHDCAP ALUM 3900UF 20% 35V RADIAL |
7,651 | 3.75 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 3900 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.424 A @ 120 Hz | 4.28 A @ 100 kHz | 12 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
VHT1000M63CAP ALUM 1000UF 20% 63V RADIAL |
7,991 | 2.24 |
RFQ |
Datasheet |
Bag | VHT | Active | 1000 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
MAL214830332E3CAP ALUM 3300UF 20% 35V RADIAL |
7,005 | 4.41 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 148 RUS | Active | 3300 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 100 Hz | - | 37 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL215099515E3CAP ALUM 2200UF 20% 16V SMD |
6,054 | 3.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 2200 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 945 mA @ 100 Hz | - | 50 mOhms | - | 0.630 Dia (16.00mm) | 0.748 (19.00mm) | 0.630 L x 0.630 W (16.00mm x 16.00mm) | Surface Mount |
|

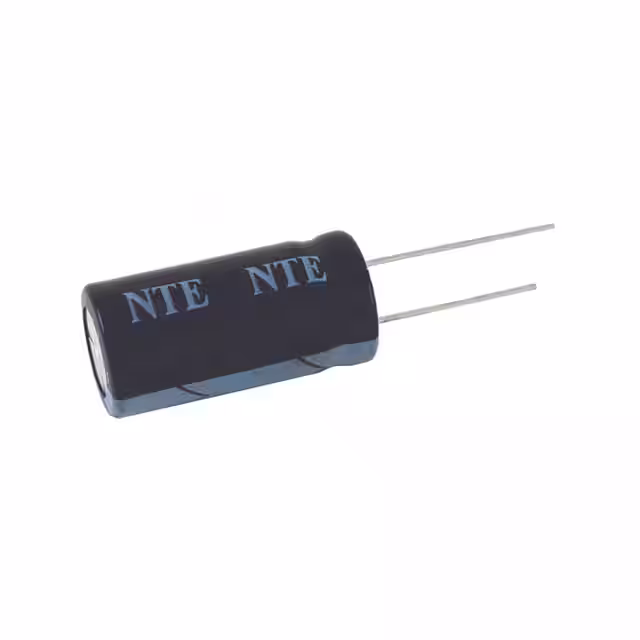

VHT15000M10CAP ALUM 15000UF 20% 10V RADIAL |
9,253 | 2.28 |
RFQ |
Datasheet |
Bag | VHT | Active | 15000 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.496 (38.00mm) | - | Through Hole |
|
VHT6800M16CAP ALUM 6800UF 20% 16V RADIAL |
8,104 | 2.28 |
RFQ |
Datasheet |
Bag | VHT | Active | 6800 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

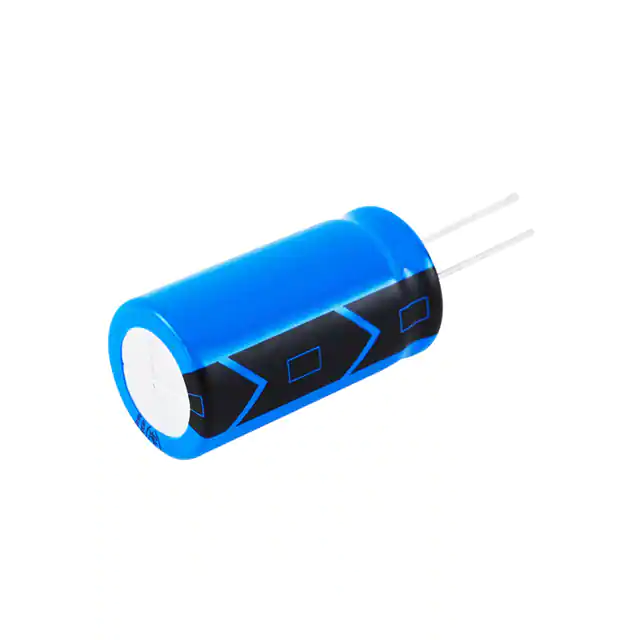

NEV2200M50GHCAP ALUM 2200UF 20% 50V RADIAL |
7,760 | 2.29 |
RFQ |
Datasheet |
Bag | NEV | Active | 2200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.339 (34.00mm) | - | Through Hole |
|
NEHH47M160EDCAP ALUM 47UF 160V AXIAL |
9,490 | 2.29 |
RFQ |
Datasheet |
Bag | NEHH | Active | 47 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 1.181 L (13.00mm x 30.00mm) | - | - | Through Hole |
|
860160478035CAP ALUM 2700UF 20% 25V RADIAL |
9,170 | 3.26 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 2700 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.796 A @ 120 Hz | 2.85 A @ 100 kHz | 50 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
B41858C5688M000CAP ALUM 6800UF 20% 25V RADIAL |
7,382 | 3.87 |
RFQ |
Datasheet |
Bulk | B41858 | Active | 6800 µF | ±20% | 25 V | 16mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 4.467 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
VHT8200M25CAP ALUM 8200UF 20% 25V RADIAL |
9,401 | 2.32 |
RFQ |
Datasheet |
Bag | VHT | Active | 8200 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.417 (36.00mm) | - | Through Hole |
