| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQS2W271MELC30CAP ALUM 270UF 20% 450V SNAP |
7,742 | 9.46 |
RFQ |
Datasheet |
Bulk | LQS | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
420CXW22MEFR8X40CAP ALUM 22UF 20% 420V RADIAL |
5,761 | 1.82 |
RFQ |
Datasheet |
Bulk | CXW | Active | 22 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
EGXF251ELL360MK20SCAP ALUM 36UF 20% 250V RADIAL TH |
5,577 | 1.82 |
RFQ |
Datasheet |
Bulk | GXF | Active | 36 µF | ±20% | 250 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 427 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
UHW2A181MHDCAP ALUM 180UF 20% 100V RADIAL |
5,604 | 1.82 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 180 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.75 A @ 100 kHz | 65 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
UCX1V102MNQ1MSCAP ALUM 1000UF 20% 35V SMD |
6,288 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 1000 µF | ±20% | 35 V | 50mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
16JXF1800MEFC10X25CAP ALUM 1800UF 20% 16V RADIAL |
9,630 | 1.83 |
RFQ |
Datasheet |
Bulk | JXF | Active | 1800 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.026 A @ 120 Hz | - | 37 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UBT2V220MHDCAP ALUM 22UF 20% 350V RADIAL |
9,287 | 1.83 |
RFQ |
Datasheet |
Bulk | UBT | Active | 22 µF | ±20% | 350 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 139 mA @ 120 Hz | 250.2 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPJ1K331MHDCAP ALUM 330UF 20% 80V RADIAL |
7,545 | 1.83 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 330 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 767 mA @ 120 Hz | 1 A @ 10 kHz | 88 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
EEU-FS1K391CAP ALUM 390UF 20% 80V RADIAL |
9,865 | 1.83 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 390 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UBX1K330MPLCAP ALUM 33UF 20% 80V RADIAL |
6,688 | 1.84 |
RFQ |
Datasheet |
Bulk | UBX | Active | 33 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 210 mA @ 120 Hz | 420 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|

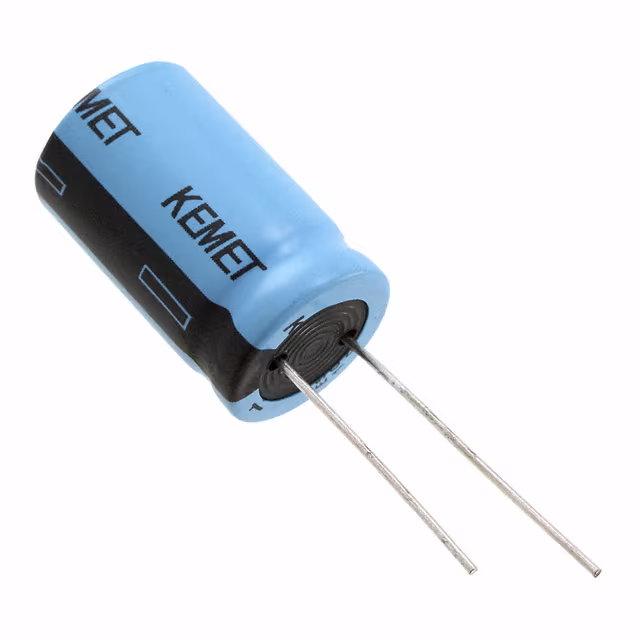

ESX108M050AM7AACAP ALUM 1000UF 20% 50V RADIAL |
8,847 | 1.84 |
RFQ |
Datasheet |
Bulk | ESX | Active | 1000 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 1.8 A @ 100 kHz | 60 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
35TGV820M16X16.5CAP ALUM 820UF 20% 35V SMD |
9,173 | 2.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TGV | Active | 820 µF | ±20% | 35 V | 66mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 720 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
860160278044CAP ALUM 4700UF 20% 10V RADIAL |
9,321 | 2.80 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 4700 µF | ±20% | 10 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.484 A @ 100 kHz | 65 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
|
EGXF630ELL391MK20SCAP ALUM 390UF 20% 63V RADIAL TH |
9,090 | 1.85 |
RFQ |
Datasheet |
Bulk | GXF | Active | 390 µF | ±20% | 63 V | 97mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 655 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
UBY1H132MHL6TNCAP ALUM 1300UF 20% 50V RADIAL |
7,488 | 3.50 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBY | Active | 1300 µF | ±20% | 50 V | 33mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 2.424 A @ 120 Hz | 4.04 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.083 (27.50mm) | - | Through Hole |
|
|
400CXW27MEFR8X40CAP ALUM 27UF 20% 400V RADIAL |
5,168 | 1.88 |
RFQ |
Datasheet |
Bulk | CXW | Active | 27 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 375 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
LQSW6391MELB40CAP ALUM 390UF 20% 420V SNAP |
8,375 | 9.76 |
RFQ |
Datasheet |
Bulk | LQS | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.3023 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
B43504A5227M000CAP ALUM 220UF 20% 450V SNAP |
6,375 | 9.76 |
RFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 220 µF | ±20% | 450 V | 610mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 100 Hz | - | 730 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

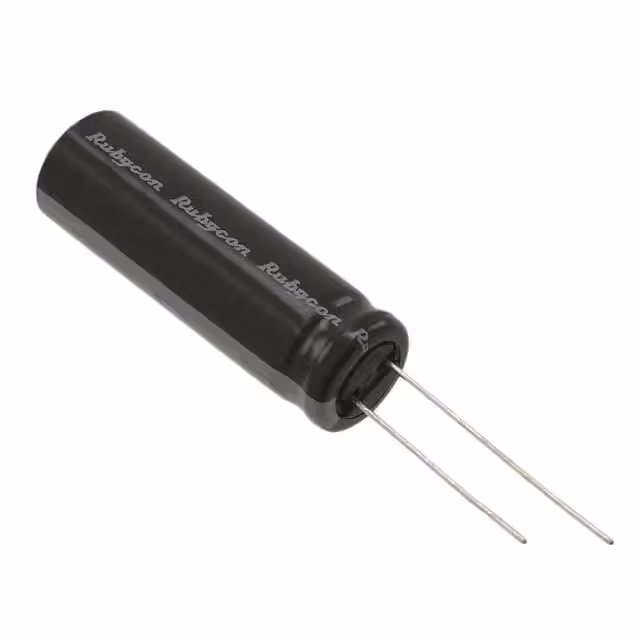

16YXG3900MEFC12.5X40CAP ALUM 3900UF 20% 16V RADIAL |
6,750 | 1.89 |
RFQ |
Datasheet |
Bulk | YXG | Active | 3900 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.345 A @ 120 Hz | 3.35 A @ 100 kHz | 17 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.654 (42.00mm) | - | Through Hole |
|
160BXC150MEFC16X25CAP ALUM 150UF 20% 160V RADIAL |
9,624 | 1.89 |
RFQ |
Datasheet |
Bulk | BXC | Active | 150 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850.5 mA @ 120 Hz | 1.89 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
