| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHD1A222MHDCAP ALUM 2200UF 20% 10V RADIAL |
11,575 | 0.92 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 2200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.888 A @ 120 Hz | 2.36 A @ 100 kHz | 21 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
LGU2W101MELYCAP ALUM 100UF 20% 450V SNAP |
9,029 | 4.77 |
RFQ |
Datasheet |
Bulk | LGU | Active | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 986.7 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
LGUW6181MELZCAP ALUM 180UF 20% 420V SNAP |
9,716 | 4.78 |
RFQ |
Datasheet |
Bulk | LGU | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.772 (45.00mm) | - | Through Hole |
|

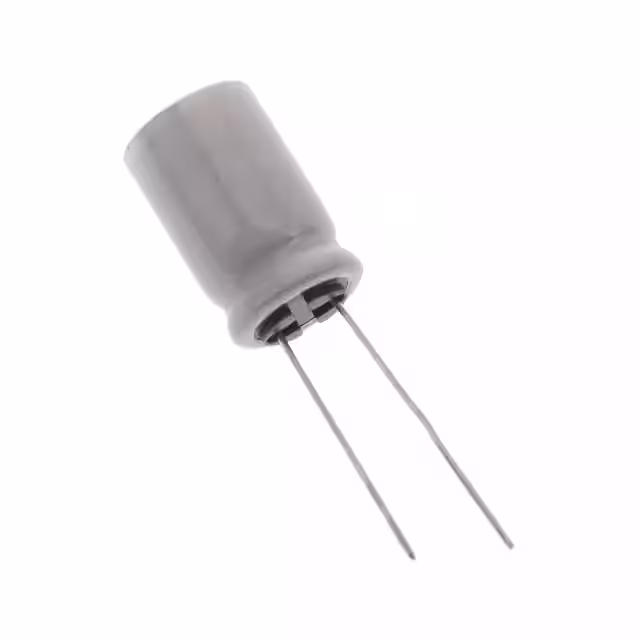

UBY1K271MHL1TOCAP ALUM 270UF 20% 80V RADIAL |
6,495 | 2.07 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBY | Active | 270 µF | ±20% | 80 V | 74mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 820 mA @ 120 Hz | 1.64 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
LGR2G181MELB35CAP ALUM 180UF 20% 400V SNAP |
8,328 | 4.81 |
RFQ |
Datasheet |
Bulk | LGR | Active | 180 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.287 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UPZ2W680MHDCAP ALUM 68UF 20% 450V RADIAL |
7,156 | 5.04 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 68 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 490 mA @ 120 Hz | 735 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|

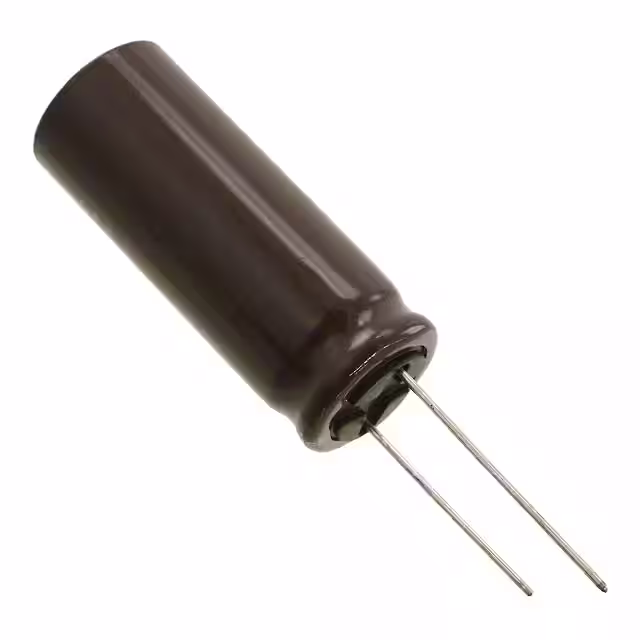

UPZ2W820MHDCAP ALUM 82UF 20% 450V RADIAL |
5,794 | 5.04 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
200USG470MEFCSN20X35CAP ALUM 470UF 20% 200V SNAP |
7,504 | 4.83 |
RFQ |
Datasheet |
Bulk | USG | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.895 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UBW1C331MPDCAP ALUM 330UF 20% 16V RADIAL |
10,707 | 0.93 |
RFQ |
Datasheet |
Bulk | UBW | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 340 mA @ 120 Hz | 680 mA @ 100 kHz | 100 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
UHV1E821MPDCAP ALUM 820UF 20% 25V RADIAL |
13,809 | 0.93 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 820 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.296 A @ 120 Hz | 2.16 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
860130478010CAP ALUM 1000UF 20% 25V RADIAL |
5,140 | 1.41 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATET | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 970 mA @ 120 Hz | 1.3386 A @ 100 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
LLS2Z102MELZCAP ALUM 1000UF 20% 180V SNAP |
8,186 | 4.86 |
RFQ |
Datasheet |
Bulk | LLS | Active | 1000 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.65 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
LGU2D821MELACAP ALUM 820UF 20% 200V SNAP |
5,512 | 4.86 |
RFQ |
Datasheet |
Bulk | LGU | Active | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.06 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
LGR2E271MELB25CAP ALUM 270UF 20% 250V SNAP |
8,002 | 4.87 |
RFQ |
Datasheet |
Bulk | LGR | Active | 270 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.65 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UVP1J470MPDCAP ALUM 47UF 20% 63V RADIAL |
11,926 | 0.94 |
RFQ |
Datasheet |
Bulk | UVP | Not For New Designs | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 180 mA @ 120 Hz | 360 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UPM1J121MPDCAP ALUM 120UF 20% 63V RADIAL |
13,201 | 0.94 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 120 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 555 mA @ 120 Hz | 820 mA @ 10 kHz | 100 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPA1C102MPDCAP ALUM 1000UF 20% 16V RADIAL |
10,230 | 0.94 |
RFQ |
Datasheet |
Bulk | UPA | Active | 1000 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.24 A @ 100 kHz | 49 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
LGR2D561MELB30CAP ALUM 560UF 20% 200V SNAP |
8,476 | 4.88 |
RFQ |
Datasheet |
Bulk | LGR | Active | 560 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
LGU2W151MELZCAP ALUM 150UF 20% 450V SNAP |
8,373 | 4.90 |
RFQ |
Datasheet |
Bulk | LGU | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.2584 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
UPJ2D470MHD1TNCAP ALUM 47UF 20% 200V RADIAL |
6,439 | 1.79 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 47 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 352 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
