| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM2A120MEDCAP ALUM 12UF 20% 100V RADIAL |
12,233 | 0.58 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 12 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 150 mA @ 10 kHz | 1 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UCY2E151MHD6CAP ALUM 150UF 20% 250V RADIAL |
7,474 | 3.08 |
RFQ |
Datasheet |
Bulk | UCY | Active | 150 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.98 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.634 (41.50mm) | - | Through Hole |
Series.jpg)
|
EEE-FPJ182UALCAP ALUM 1800UF 20% 6.3V SMD |
7,224 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 1800 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FPV391UALCAP ALUM 390UF 20% 35V SMD |
8,699 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 390 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
200LEX6.8MEFC8X9CAP ALUM 6.8UF 20% 200V RADIAL |
14,622 | 0.59 |
RFQ |
Datasheet |
Bulk | LEX | Active | 6.8 µF | ±20% | 200 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 62 mA @ 120 Hz | 117 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.433 (11.00mm) | - | Through Hole |
|
SEK220M350STCAP ALUM 22UF 20% 350V RADIAL |
6,825 | 3.13 |
RFQ |
Datasheet |
Bulk | SEK | Active | 22 µF | ±20% | 350 V | 12.06Ohm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.024 (26.00mm) | - | Through Hole |
|
UPM2A220MPDCAP ALUM 22UF 20% 100V RADIAL |
11,411 | 0.60 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 22 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 275 mA @ 10 kHz | 550 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
35YXG3900MEFC18X40CAP ALUM 3900UF 20% 35V RADIAL |
8,029 | 3.15 |
RFQ |
Datasheet |
Bulk | YXG | Active | 3900 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.996 A @ 120 Hz | 4.28 A @ 100 kHz | 12 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UPA1E122MHD1TOCAP ALUM 1200UF 20% 25V RADIAL |
9,672 | 1.36 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.607 A @ 120 Hz | 1.89 A @ 100 kHz | 29 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
LLS2W680MELYCAP ALUM 68UF 20% 450V SNAP |
9,270 | 3.05 |
RFQ |
Datasheet |
Bulk | LLS | Active | 68 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.0153 A @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
LLS2W680MELZCAP ALUM 68UF 20% 450V SNAP |
7,335 | 3.05 |
RFQ |
Datasheet |
Bulk | LLS | Active | 68 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.0153 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EPAG421ELL680ML30SCAP ALUM 68UF 20% 420V RADIAL |
8,868 | 3.05 |
RFQ |
Datasheet |
Bulk | PAG | Active | 68 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 918 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LGU2C391MELZCAP ALUM 390UF 20% 160V SNAP |
7,335 | 3.05 |
RFQ |
Datasheet |
Bulk | LGU | Active | 390 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.95 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

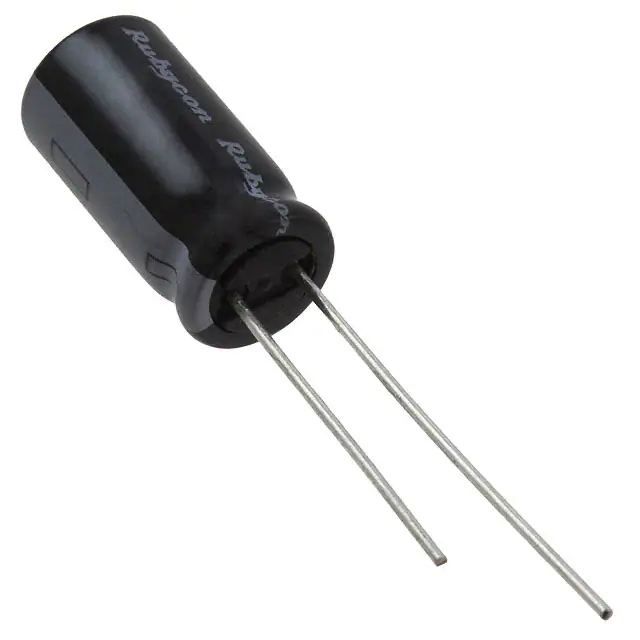

10AX820MEFC8X16CAP ALUM 820UF 20% 10V RADIAL |
13,192 | 0.61 |
RFQ |
Datasheet |
Bulk | AX | Active | 820 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 27 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
ELXZ160ELL682ML40SCAP ALUM 6800UF 20% 16V RADIAL |
5,070 | 3.19 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 6800 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.1535 A @ 120 Hz | 3.71 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
UHD1C471MPD6CAP ALUM 470UF 20% 16V RADIAL |
11,725 | 0.61 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 470 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 772.5 mA @ 120 Hz | 1.03 A @ 100 kHz | 53 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UPV1E470MGDCAP ALUM 47UF 20% 25V RADIAL |
14,049 | 0.61 |
RFQ |
Datasheet |
Bulk | UPV | Not For New Designs | 47 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 940 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
8AX910MEFC8X16CAP ALUM 910UF 20% 8V RADIAL |
10,073 | 0.61 |
RFQ |
Datasheet |
Bulk | AX | Active | 910 µF | ±20% | 8 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 27 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
865060657011CAP ALUM 150UF 20% 50V SMD |
8,344 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASLL | Active | 150 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 360.75 mA @ 120 Hz | 555 mA @ 100 kHz | 250 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EGQB250ELL242MM20HCAP ALUM 2400UF 20% 25V RADIAL |
6,512 | 3.20 |
RFQ |
Datasheet |
Bulk | GQB | Active | 2400 µF | ±20% | 25 V | 58mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.8725 A @ 120 Hz | 3.83 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
.jpg)
