| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHE0J562MHD6CAP ALUM 5600UF 20% 6.3V RADIAL |
5,097 | 1.59 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 5600 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.024 A @ 120 Hz | 2.53 A @ 100 kHz | 27 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
UPJ1J151MPD1TDCAP ALUM 150UF 20% 63V RADIAL |
12,809 | 0.81 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 150 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 10 kHz | 130 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UWD1A331MCL1GSCAP ALUM 330UF 20% 10V SMD |
12,298 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 330 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 225 mA @ 120 Hz | 450 mA @ 100 kHz | 170 mOhms | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UCJ1A221MCL1GSCAP ALUM 220UF 20% 10V SMD |
13,066 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCJ | Active | 220 µF | ±20% | 10 V | 2Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 250 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
865080353014CAP ALUM 330UF 20% 16V SMD |
13,438 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASLI | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 357.5 mA @ 120 Hz | 550 mA @ 100 kHz | 250 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UBX1H331MHL1TOCAP ALUM 330UF 20% 50V RADIAL |
5,061 | 3.46 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBX | Active | 330 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 385 mA @ 120 Hz | 770 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
ELXY160ELL152MK25SCAP ALUM 1500UF 20% 16V RADIAL |
5,016 | 1.63 |
RFQ |
Datasheet |
Bulk | LXY | Active | 1500 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.014 A @ 120 Hz | 1.69 A @ 100 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|

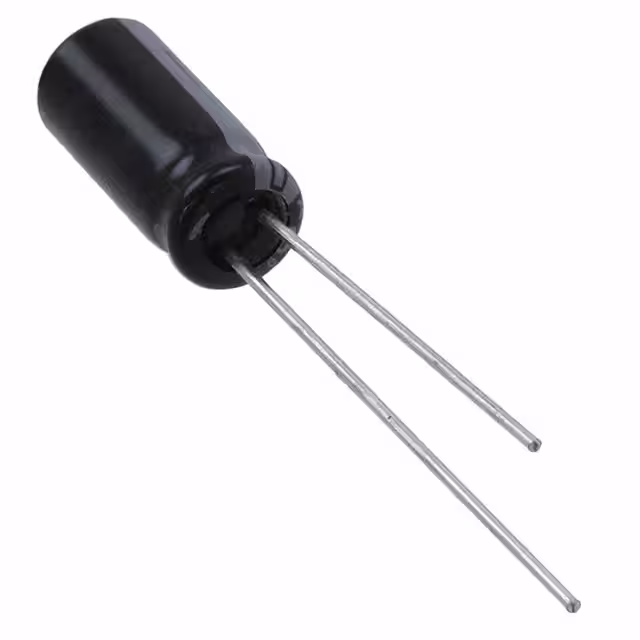

10AX180MEFC5X11CAP ALUM 180UF 20% 10V RADIAL |
12,990 | 0.33 |
RFQ |
Datasheet |
Bulk | AX | Active | 180 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 140 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UUJ2E330MNQ1MSCAP ALUM 33UF 20% 250V SMD |
9,897 | 2.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUJ | Not For New Designs | 33 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 368 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
UUL1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
14,639 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUL | Active | 33 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 85.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
Series.jpg)
|
EEE-FP1E101ALCAP ALUM 100UF 20% 25V SMD |
14,225 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 100 µF | ±20% | 25 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FP1A221ALCAP ALUM 220UF 20% 10V SMD |
12,207 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 220 µF | ±20% | 10 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FP0J331ALCAP ALUM 330UF 20% 6.3V SMD |
13,360 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 330 µF | ±20% | 6.3 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

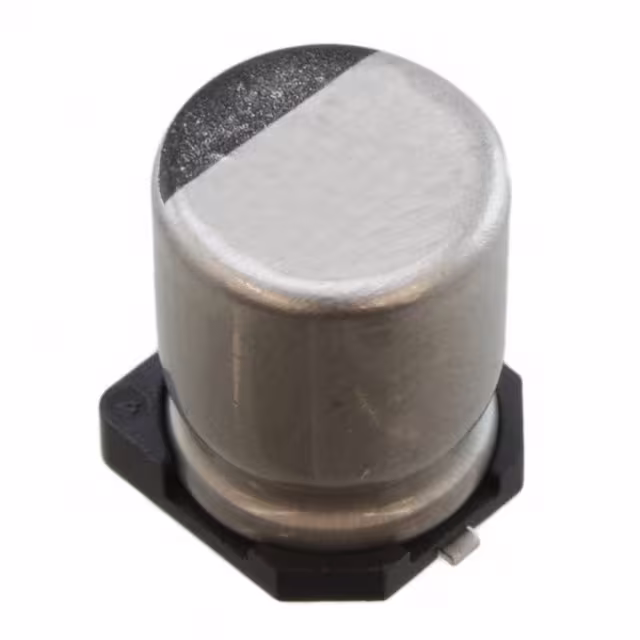

10TZV1000M10X10.5CAP ALUM 1000UF 20% 10V SMD |
10,181 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UHW1E182MHDCAP ALUM 1800UF 20% 25V RADIAL |
9,436 | 1.64 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 1800 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 3.2 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UHW1C272MHDCAP ALUM 2700UF 20% 16V RADIAL |
7,490 | 1.64 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 2700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.2 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UUB1A331MNL1GSCAP ALUM 330UF 20% 10V SMD |
10,825 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUB | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | - | General Purpose | 112 mA @ 120 Hz | 168 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UWH1C101MCL1GSCAP ALUM 100UF 20% 16V SMD |
13,584 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWH | Active | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 66 mA @ 120 Hz | 99 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
UWH1A221MCL1GSCAP ALUM 220UF 20% 10V SMD |
10,445 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWH | Active | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 135 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
UUB1E221MNL1GSCAP ALUM 220UF 20% 25V SMD |
11,472 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUB | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | - | General Purpose | 116 mA @ 120 Hz | 174 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
