| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESMG630ELL100ME11DCAP ALUM 10UF 20% 63V RADIAL |
12,596 | 0.47 |
RFQ |
Datasheet |
Bulk | SMG | Active | 10 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 117 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

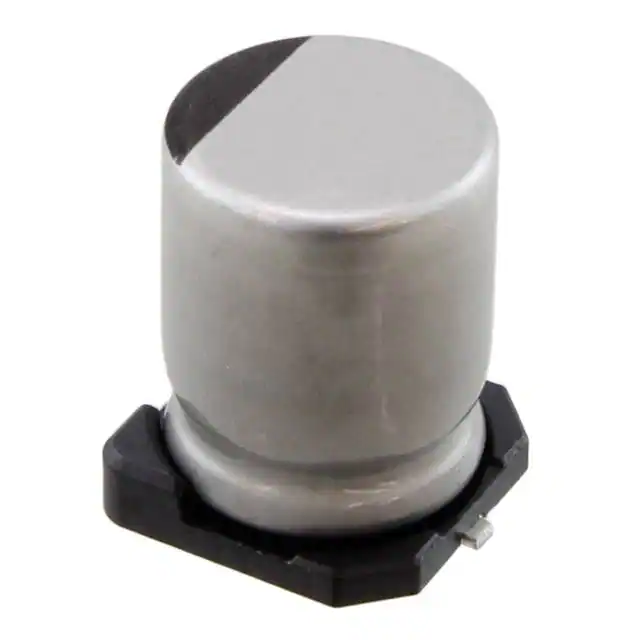

UCX1A331MCL6GSCAP ALUM 330UF 20% 10V SMD |
9,380 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 330 µF | ±20% | 10 V | 200mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-TQV470XAPCAP ALUM 47UF 20% 35V SMD |
8,220 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TQ | Active | 47 µF | ±20% | 35 V | 300mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 128.05 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPW2E330MHD1TOCAP ALUM 33UF 20% 250V RADIAL |
7,959 | 1.13 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 33 µF | ±20% | 250 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 304 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-FC1C681APCAP ALUM 680UF 20% 16V SMD |
5,136 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 680 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UPM1K101MHD6TOCAP ALUM 100UF 20% 80V RADIAL |
6,806 | 1.14 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 100 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | - | 230 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.669 (17.00mm) | - | Through Hole |
|
EEE-FT0J331AVCAP ALUM 330UF 20% 6.3V SMD |
8,620 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 330 µF | ±20% | 6.3 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.252 (6.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UVP1E331MHD1TOCAP ALUM 330UF 20% 25V RADIAL |
7,685 | 1.16 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVP | Not For New Designs | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 450 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPW2D010MEDCAP ALUM 1UF 20% 200V RADIAL |
11,657 | 0.49 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 1 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.433 (11.00mm) | - | Through Hole |
|
UPS1A332MHD1TOCAP ALUM 3300UF 20% 10V RADIAL |
7,564 | 1.10 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 3300 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.349 A @ 120 Hz | 1.55 A @ 100 kHz | 57 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
URZ1A222MHD1TOCAP ALUM 2200UF 20% 10V RADIAL |
9,765 | 1.10 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URZ | Active | 2200 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 793.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | - | Through Hole |
|
UCZ1K220MCL1GSCAP ALUM 22UF 20% 80V SMD |
6,134 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 22 µF | ±20% | 80 V | 550mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UVZ2A221MHD1TOCAP ALUM 220UF 20% 100V RADIAL |
6,376 | 1.10 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 220 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UVK0J682MHD1TOCAP ALUM 6800UF 20% 6.3V RADIAL |
8,478 | 1.50 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 2.208 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UCYW6100MPD1TDCAP ALUM 10UF 20% 420V RADIAL |
8,262 | 1.18 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 10 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UBW1E471MPD1TDCAP ALUM 470UF 20% 25V RADIAL |
5,877 | 1.67 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBW | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | 57 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ELXZ6R3ELL681MH12DCAP ALUM 680UF 20% 6.3V RADIAL |
10,497 | 0.50 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 680 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 333 mA @ 120 Hz | 555 mA @ 100 kHz | 120 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
EKZH6R3ELL471MF11DCAP ALUM 470UF 20% 6.3V RADIAL |
12,514 | 0.50 |
RFQ |
Datasheet |
Bulk | KZH | Active | 470 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | 110 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FS1A331CAP ALUM 330UF 20% 10V RADIAL |
11,080 | 0.50 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 330 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 318.5 mA @ 120 Hz | 455 mA @ 100 kHz | 130 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
UVR2V220MHD1TOCAP ALUM 22UF 20% 350V RADIAL |
9,601 | 1.12 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 22 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 320 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
