| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

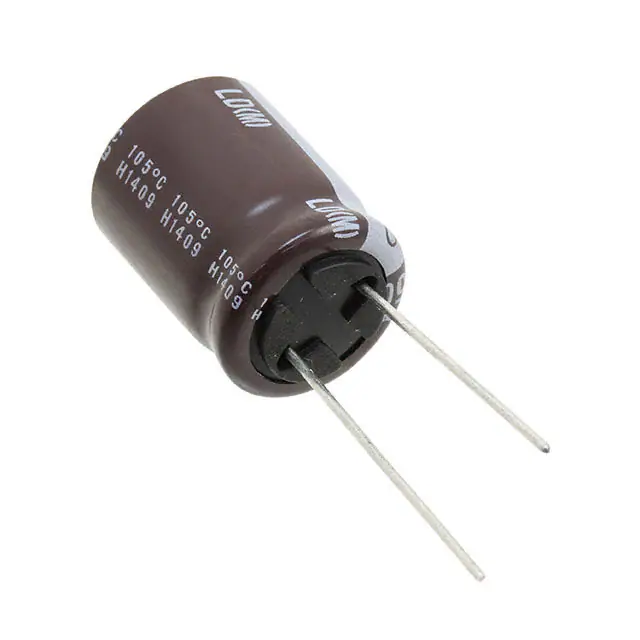

ULD2W220MHD6CAP ALUM 22UF 20% 450V RADIAL |
9,903 | 2.80 |
RFQ |
Datasheet |
Bulk | ULD | Not For New Designs | 22 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 292 mA @ 120 Hz | 554.8 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FK1A272SCAP ALUM 2700UF 20% 10V RAD TH |
5,914 | 2.80 |
RFQ |
Datasheet |
Bulk | FK | Active | 2700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.44 A @ 120 Hz | 1.8 A @ 100 kHz | 38 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
MAL214699606E3CAP ALUM 1500UF 20% 25V SMD |
9,864 | 4.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 146 CTI | Active | 1500 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 980 mA @ 100 Hz | 1.4 A @ 100 kHz | 50 mOhms | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.630 L x 0.630 W (16.00mm x 16.00mm) | Surface Mount |
|

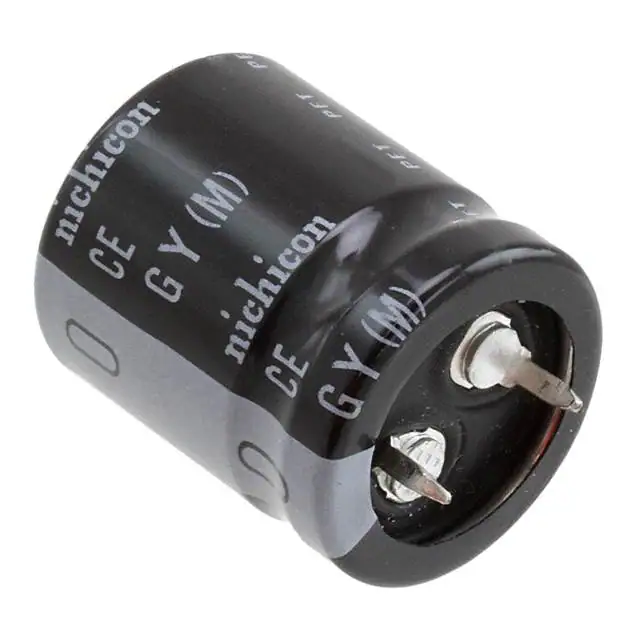

LGY1C682MELZ25CAP ALUM 6800UF 20% 16V SNAP |
6,575 | 2.81 |
RFQ |
Datasheet |
Bulk | LGY | Active | 6800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESMQ351VSN102MA50SCAP ALUM 1000UF 20% 350V SNAP |
8,283 | 6.32 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 1000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.54 A @ 120 Hz | 5.062 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
EGPA101ELL751MM40SCAP ALUM 750UF 20% 100V RADIAL |
6,693 | 6.62 |
RFQ |
Datasheet |
Bulk | GPA | Active | 750 µF | ±20% | 100 V | 39mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.728 A @ 120 Hz | 2.88 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
AFK478M10P44T-FCAP ALUM 4700UF 20% 10V SMD |
8,616 | 4.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 4700 µF | ±20% | 10 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.748 W (17.00mm x 19.00mm) | Surface Mount |
|
LLS2D152MELCCAP ALUM 1500UF 20% 200V SNAP |
7,999 | 6.35 |
RFQ |
Datasheet |
Bulk | LLS | Active | 1500 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.06 A @ 120 Hz | 6.09 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|

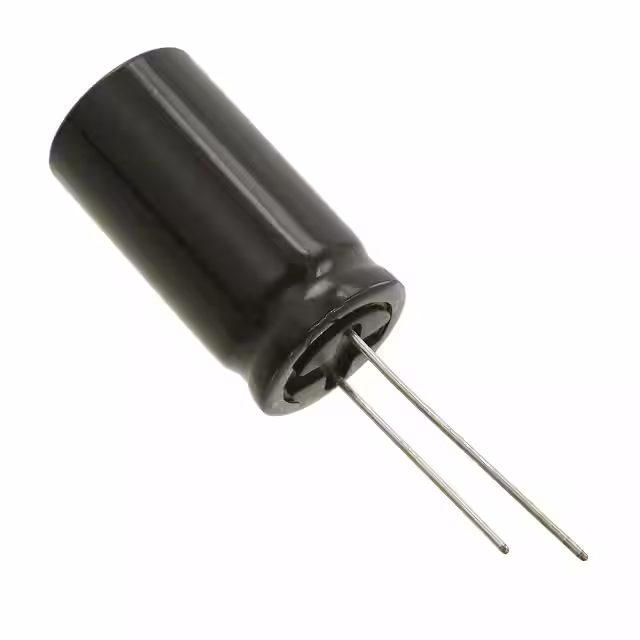

UVK1V332MHDCAP ALUM 3300UF 20% 35V RADIAL |
9,150 | 2.83 |
RFQ |
Datasheet |
Bulk | UVK | Not For New Designs | 3300 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.415 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
UBX2G150MHLCAP ALUM 15UF 20% 400V RADIAL |
6,754 | 2.83 |
RFQ |
Datasheet |
Bulk | UBX | Active | 15 µF | ±20% | 400 V | - | 1000 Hrs @ 150°C | -25°C ~ 150°C | Polar | - | Automotive | 105 mA @ 120 Hz | 189 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPS2G470MHDCAP ALUM 47UF 20% 400V RADIAL |
6,318 | 2.83 |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 47 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 170 mA @ 120 Hz | 272 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|

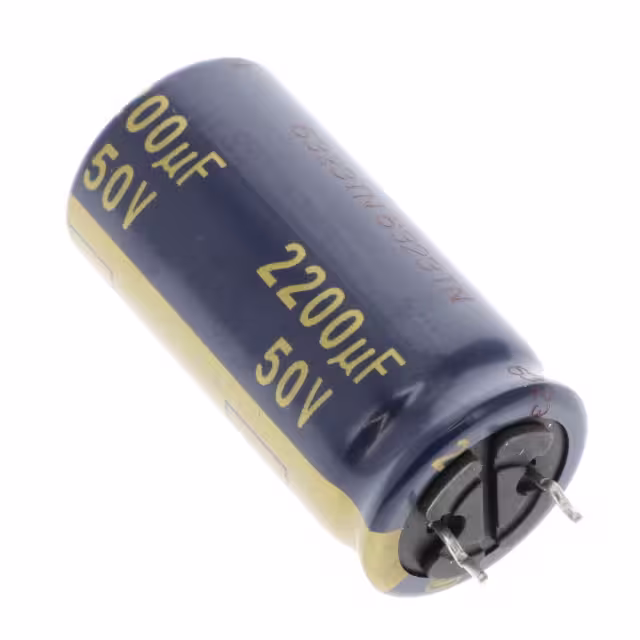

EEU-FC1H222ECAP ALUM 2200UF 20% 50V RADIAL |
6,330 | 2.83 |
RFQ |
Datasheet |
Bulk | FC | Active | 2200 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.48 A @ 120 Hz | 3.1 A @ 100 kHz | 23 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
ESMQ451VSN331MA30SCAP ALUM 330UF 20% 450V SNAP |
7,695 | 6.35 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.8743 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ESMQ251VSN152MA40SCAP ALUM 1500UF 20% 250V SNAP |
9,488 | 6.36 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 1500 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 6.06 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
ESMQ451VSN391MA35SCAP ALUM 390UF 20% 450V SNAP |
9,353 | 6.37 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.2032 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

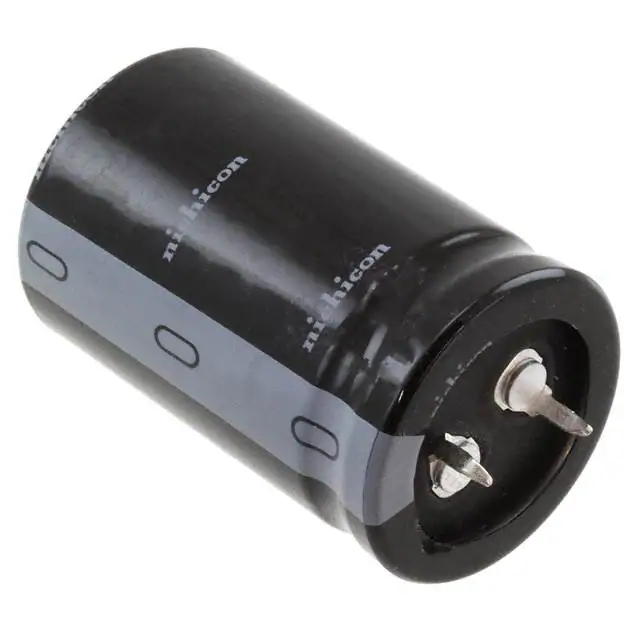

LQS2V331MELA40CAP ALUM 330UF 20% 350V SNAP |
8,302 | 6.38 |
RFQ |
Datasheet |
Bulk | LQS | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UBT1A472MHDCAP ALUM 4700UF 20% 10V RADIAL |
8,452 | 2.85 |
RFQ |
Datasheet |
Bulk | UBT | Active | 4700 µF | ±20% | 10 V | - | 10000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.816 A @ 120 Hz | 2.71 A @ 100 kHz | 20 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

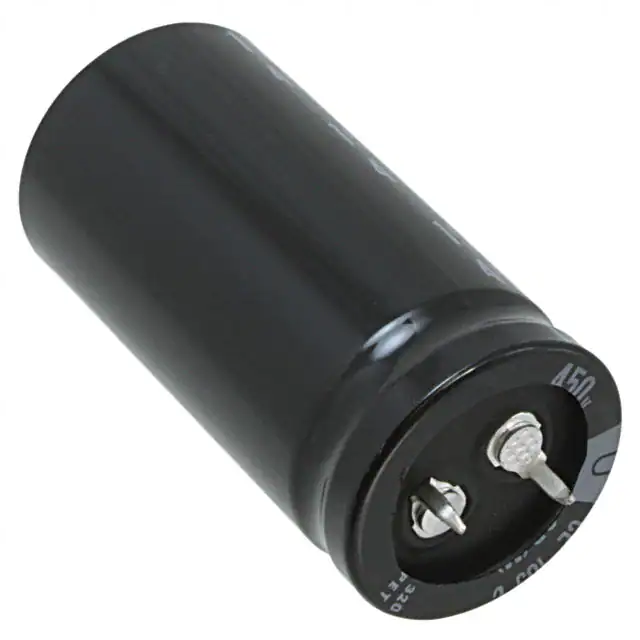

LGR2E561MELA50CAP ALUM 560UF 20% 250V SNAP |
7,354 | 6.40 |
RFQ |
Datasheet |
Bulk | LGR | Active | 560 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LGU2W221MELACAP ALUM 220UF 20% 450V SNAP |
6,414 | 6.39 |
RFQ |
Datasheet |
Bulk | LGU | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6016 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
UPM1H122MHDCAP ALUM 1200UF 20% 50V RADIAL |
5,011 | 2.86 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 1200 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.32 A @ 10 kHz | 28 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
