| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKZE100ELL332MK25SCAP ALUM 3300UF 20% 10V RADIAL |
5,818 | 1.80 |
RFQ |
Datasheet |
Bulk | KZE | Active | 3300 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.0775 A @ 120 Hz | 2.77 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
UEP1C101MPDCAP ALUM 100UF 20% 16V RADIAL |
11,857 | 0.82 |
RFQ |
Datasheet |
Bulk | UEP | Not For New Designs | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 110 mA @ 120 Hz | 165 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
ELXZ250ELL152MK25SCAP ALUM 1500UF 20% 25V RADIAL |
6,847 | 1.80 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 1500 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.17 A @ 120 Hz | 1.95 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPJ1E561MPDCAP ALUM 560UF 20% 25V RADIAL |
14,861 | 0.82 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 560 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.22 A @ 10 kHz | 84 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
EEU-FR1J101CAP ALUM 100UF 20% 63V RADIAL |
13,738 | 0.82 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 100 µF | ±20% | 63 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 532.7 mA @ 120 Hz | 761 mA @ 100 kHz | 63 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ELZA350ELL681MJ20SCAP ALUM 680UF 20% 35V RADIAL |
6,782 | 1.80 |
RFQ |
Datasheet |
Bulk | LZA | Active | 680 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 930 mA @ 120 Hz | 1.55 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
EMHS250GRA102MKE0SCAP ALUM 1000UF 20% 25V SMD |
8,369 | 1.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MHS | Active | 1000 µF | ±20% | 25 V | 87mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 636 mA @ 120 Hz | 1.06 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.539 L x 0.512 W (13.70mm x 13.00mm) | Surface Mount |
|
EEU-FS1J561BCAP ALUM 560UF 20% 63V RADIAL |
6,498 | 1.84 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 560 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.49625 A @ 120 Hz | 1.995 A @ 100 kHz | 27 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.004 (25.50mm) | - | Through Hole |
|
UUG1A102MNQ1MSCAP ALUM 1000UF 20% 10V SMD |
7,387 | 1.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUG | Not For New Designs | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 620 mA @ 120 Hz | 713 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
|
ELXZ350ELL102MK25SCAP ALUM 1000UF 20% 35V RADIAL |
7,439 | 1.81 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 1000 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.17 A @ 120 Hz | 1.95 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
35SEV1000M16X16.5CAP ALUM 1000UF 20% 35V SMD |
5,037 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1 A @ 120 Hz | 1.2 A @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|

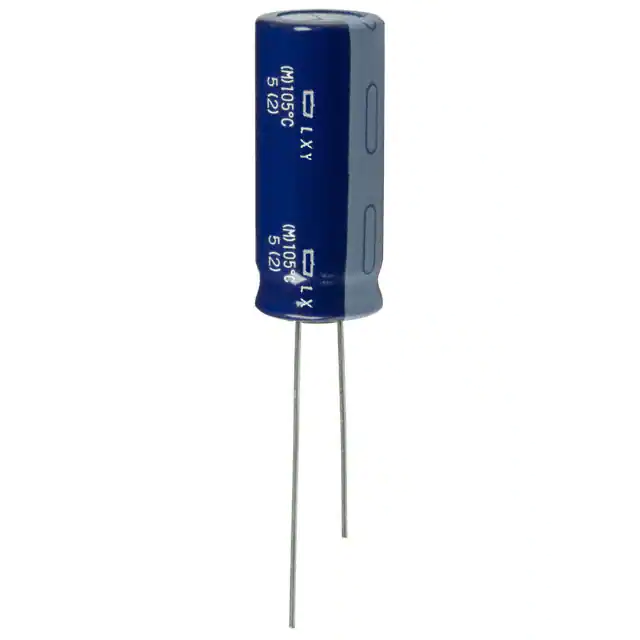

ELXY250ELL152MK30SCAP ALUM 1500UF 20% 25V RADIAL |
7,865 | 1.82 |
RFQ |
Datasheet |
Bulk | LXY | Active | 1500 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.17 A @ 120 Hz | 1.95 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
UBT1H470MPDCAP ALUM 47UF 20% 50V RADIAL |
14,106 | 0.83 |
RFQ |
Datasheet |
Bulk | UBT | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 220 mA @ 120 Hz | 440 mA @ 100 kHz | 350 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
EKXJ501ELL120MK20SCAP ALUM 12UF 20% 500V RADIAL TH |
9,218 | 1.82 |
RFQ |
Datasheet |
Bulk | KXJ | Active | 12 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 135 mA @ 120 Hz | 349.65 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
EEU-FR1E561LCAP ALUM 560UF 20% 25V RADIAL |
14,315 | 0.83 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 560 µF | ±20% | 25 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
UBT1H330MPDCAP ALUM 33UF 20% 50V RADIAL |
14,257 | 0.83 |
RFQ |
Datasheet |
Bulk | UBT | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 450 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
|
UHV1C152MPDCAP ALUM 1500UF 20% 16V RADIAL |
13,340 | 0.83 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 1500 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.296 A @ 120 Hz | 2.16 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
10ZLH5600MEFC12.5X35CAP ALUM 5600UF 20% 10V RADIAL |
7,493 | 1.83 |
RFQ |
Datasheet |
Bulk | ZLH | Active | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 3.57 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|

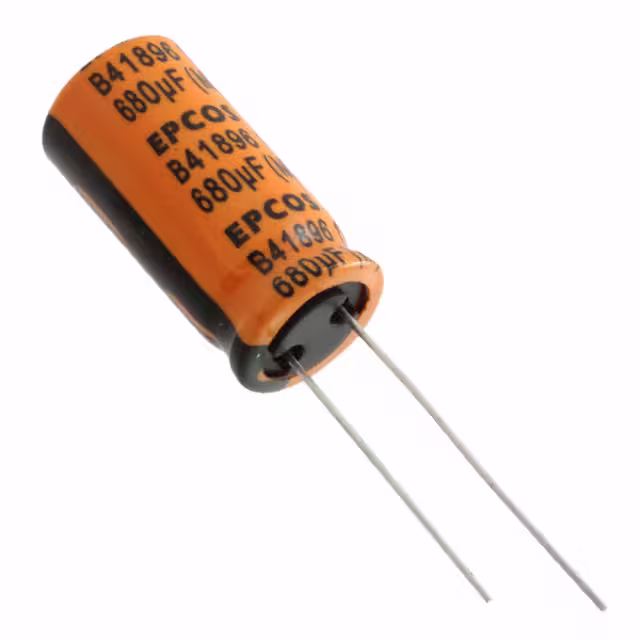

B41896C7687M000CAP ALUM 680UF 20% 35V RADIAL |
9,813 | 1.84 |
RFQ |
Datasheet |
Bulk | B41896 | Active | 680 µF | ±20% | 35 V | 223mOhm @ 120Hz | 7000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.28 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
ECA-1AHG682CAP ALUM 6800UF 20% 10V RADIAL |
6,587 | 1.84 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 1.806 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
