| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPW1J681MHD3TNCAP ALUM 680UF 20% 63V RADIAL |
5,289 | 1.75 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 680 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.718 A @ 120 Hz | 2.29 A @ 100 kHz | 55 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEE-HAE471UAPCAP ALUM 470UF 20% 25V SMD |
5,286 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 470 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360 mA @ 120 Hz | 612 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HAH221UAPCAP ALUM 220UF 20% 50V SMD |
5,562 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 120 Hz | 255 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HAJ152UAPCAP ALUM 1500UF 20% 6.3V SMD |
6,954 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 1500 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 480 mA @ 120 Hz | 816 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UPM1A332MHD6TNCAP ALUM 3300UF 20% 10V RADIAL |
8,082 | 1.75 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 3300 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 1.85 A @ 10 kHz | 31 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEE-HAV331UAPCAP ALUM 330UF 20% 35V SMD |
9,550 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 330 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 250 mA @ 120 Hz | 425 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
ECE-A1EN221UBCAP ALUM 220UF 20% 25V RADIAL |
8,505 | 1.06 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | SU | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 320 mA @ 120 Hz | 544 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
EEE-HD1H330PCAP ALUM 33UF 20% 50V SMD |
8,877 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 33 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 74 mA @ 120 Hz | 125.8 mA @ 10 kHz | 1.5 Ohms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-HD1J220PCAP ALUM 22UF 20% 63V SMD |
8,869 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 22 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | 1.5 Ohms | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-FS1K151BCAP ALUM 150UF 20% 80V RADIAL |
7,714 | 1.01 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 150 µF | ±20% | 80 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 651 mA @ 120 Hz | 930 mA @ 100 kHz | 72 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
EEE-FN1J101PCAP ALUM 100UF 20% 63V SMD |
6,963 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 100 µF | ±20% | 63 V | 350mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FN1A102PCAP ALUM 1000UF 20% 10V SMD |
6,675 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

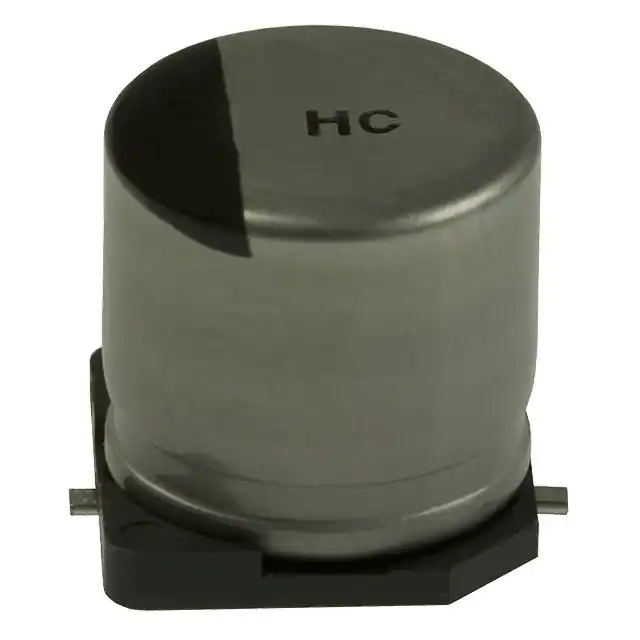

EEE-HC1H101PCAP ALUM 100UF 20% 50V SMD |
7,487 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HC | Active | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 160 mA @ 120 Hz | 272 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEE-HC1H470PCAP ALUM 47UF 20% 50V SMD |
7,411 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HC | Active | 47 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 100 mA @ 120 Hz | 170 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UVK2A471MHD1TNCAP ALUM 470UF 20% 100V RADIAL |
9,595 | 1.76 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 470 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UCY2W220MHD1TOCAP ALUM 22UF 20% 450V RADIAL |
5,742 | 2.07 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 22 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
EEU-FC1A821CAP ALUM 820UF 20% 10V RADIAL |
11,059 | 0.93 |
RFQ |
Datasheet |
Bulk | FC | Active | 820 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 787.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
ELXZ100ELL102MJ16SCAP ALUM 1000UF 20% 10V RADIAL |
12,171 | 0.93 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 1000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 630 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
EEU-FC0J122CAP ALUM 1200UF 20% 6.3V RADIAL |
12,677 | 0.93 |
RFQ |
Datasheet |
Bulk | FC | Active | 1200 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 840 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
|
EEU-FC1C681CAP ALUM 680UF 20% 16V RADIAL |
11,872 | 0.93 |
RFQ |
Datasheet |
Bulk | FC | Active | 680 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 787.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
