| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-HA1H101APCAP ALUM 100UF 20% 50V SMD |
10,617 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 100 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 204 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HA1V101APCAP ALUM 100UF 20% 35V SMD |
11,009 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 160 mA @ 120 Hz | 272 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HA1V221APCAP ALUM 220UF 20% 35V SMD |
13,195 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 220 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 210 mA @ 120 Hz | 357 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UUL1A221MNL1GSCAP ALUM 220UF 20% 10V SMD |
12,950 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUL | Active | 220 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 141 mA @ 120 Hz | 211.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UHE2A121MHD6TOCAP ALUM 120UF 20% 100V RADIAL |
10,162 | 0.92 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UHE | Not For New Designs | 120 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 535.5 mA @ 120 Hz | 765 mA @ 100 kHz | 160 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UWH1E221MCL1GSCAP ALUM 220UF 20% 25V SMD |
11,961 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWH | Active | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 116 mA @ 120 Hz | 174 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UWD0J102MCL1GSCAP ALUM 1000UF 20% 6.3V SMD |
14,321 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 1000 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UPJ1E820MEDCAP ALUM 82UF 20% 25V RADIAL |
10,723 | 0.39 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 82 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 285 mA @ 10 kHz | 470 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.472 (12.00mm) | - | Through Hole |
|
UPJ1J100MDDCAP ALUM 10UF 20% 63V RADIAL |
10,652 | 0.39 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 10 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 67 mA @ 120 Hz | 135 mA @ 10 kHz | 1.6 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEE-FPA122UAVCAP ALUM 1200UF 20% 10V SMD |
9,589 | 1.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 1200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FPC821UAVCAP ALUM 820UF 20% 16V SMD |
8,237 | 1.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 820 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FPE561UAVCAP ALUM 560UF 20% 25V SMD |
7,416 | 1.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 560 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
476CKR063MCAP ALUM 47UF 20% 63V RADIAL |
11,091 | 0.39 |
RFQ |
Datasheet |
Bulk | CKR | Active | 47 µF | ±20% | 63 V | 2.822Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 120 Hz | 483 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UVK1V222MHD1TNCAP ALUM 2200UF 20% 35V RADIAL |
7,372 | 1.64 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UWG0J152MNL1GSCAP ALUM 1500UF 20% 6.3V SMD |
13,501 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWG | Active | 1500 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
URS2G220MHD1TNCAP ALUM 22UF 20% 400V RADIAL |
9,610 | 1.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UUA1V221MNL1GSCAP ALUM 220UF 20% 35V SMD |
14,233 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUA | Active | 220 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 562.5 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

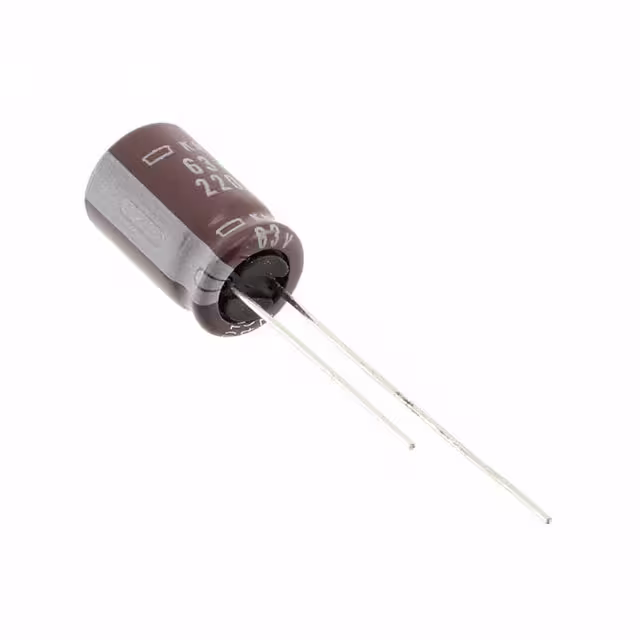

EKMG630ELL221MJ16SCAP ALUM 220UF 20% 63V RADIAL |
10,661 | 0.87 |
RFQ |
Datasheet |
Bulk | KMG | Active | 220 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 502.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
UWD1A681MCL1GSCAP ALUM 680UF 20% 10V SMD |
10,607 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 680 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
ELXY160ELL471MJ16SCAP ALUM 470UF 20% 16V RADIAL |
11,054 | 0.87 |
RFQ |
Datasheet |
Bulk | LXY | Active | 470 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 412.5 mA @ 120 Hz | 825 mA @ 100 kHz | 84 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
