| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35TKV330M10X10.5CAP ALUM 330UF 20% 35V SMD |
8,121 | 1.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TKV | Active | 330 µF | ±20% | 35 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 714 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UWH1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
12,795 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWH | Active | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 44 mA @ 120 Hz | 69 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
35TKV390M10X10.5CAP ALUM 390UF 20% 35V SMD |
5,922 | 1.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TKV | Active | 390 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UUR1C471MNL6GSCAP ALUM 470UF 20% 16V SMD |
11,895 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUR | Not For New Designs | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 307 mA @ 120 Hz | 399.1 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
ECA-1JHG101BCAP ALUM 100UF 20% 63V RADIAL |
11,092 | 0.74 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 215 mA @ 120 Hz | 322.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
UCJ1V330MCL1GSCAP ALUM 33UF 20% 35V SMD |
14,772 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCJ | Active | 33 µF | ±20% | 35 V | 14Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FC0J561CAP ALUM 560UF 20% 6.3V RADIAL |
10,584 | 0.62 |
RFQ |
Datasheet |
Bulk | FC | Active | 560 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 416.25 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
|
UVZ2G3R3MPDCAP ALUM 3.3UF 20% 400V RADIAL |
13,607 | 0.62 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 3.3 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 60.8 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

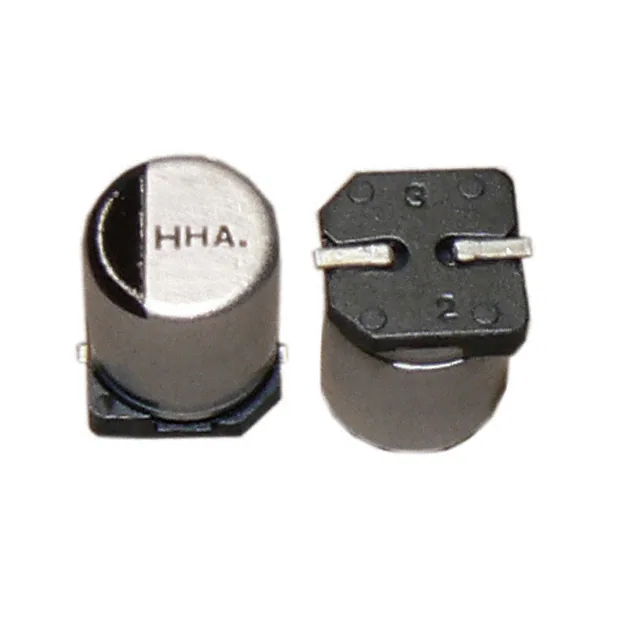

AHA476M16D16T-FCAP ALUM 47UF 20% 16V SMD |
11,282 | 0.76 |
RFQ |
Datasheet |
Cut Tape (CT) | AHA | Not For New Designs | 47 µF | ±20% | 16 V | 5.6Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UHD1H151MPD1TDCAP ALUM 150UF 20% 50V RADIAL |
10,590 | 0.72 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UHD | Not For New Designs | 150 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 685.3 mA @ 120 Hz | 979 mA @ 100 kHz | 61 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EMZR250ARA680ME61GCAP ALUM 68UF 20% 25V SMD |
14,103 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 68 µF | ±20% | 25 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
EEE-FPV680XAVCAP ALUM 68UF 20% 35V SMD |
5,251 | 1.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 68 µF | ±20% | 35 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.327 (8.30mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-HDV330XAPCAP ALUM 33UF 20% 35V SMD |
13,748 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 33 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 57 mA @ 120 Hz | 96.9 mA @ 10 kHz | 2 Ohms | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

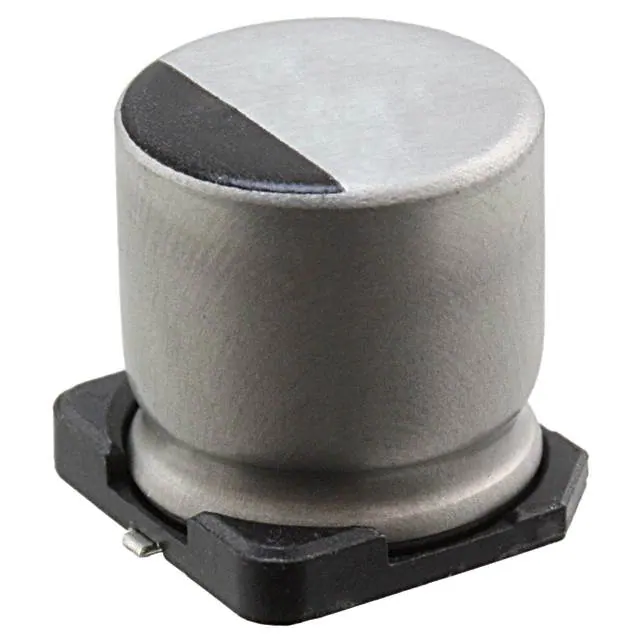

ULV2G6R8MNL1GSCAP ALUM 6.8UF 20% 400V SMD |
8,490 | 1.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULV | Active | 6.8 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 80 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.433 (11.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
URS0J472MHD1TNCAP ALUM 4700UF 20% 6.3V RADIAL |
6,696 | 1.15 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.6215 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
UWH1H220MCL1GSCAP ALUM 22UF 20% 50V SMD |
11,431 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWH | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 57 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UPM1A561MPD6TDCAP ALUM 560UF 20% 10V RADIAL |
10,912 | 0.72 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 560 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 700 mA @ 10 kHz | 110 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
UPM1A681MPD6TDCAP ALUM 680UF 20% 10V RADIAL |
10,266 | 0.72 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 680 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 685 mA @ 120 Hz | 825 mA @ 10 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
EEU-FM1E152BCAP ALUM 1500UF 20% 25V RADIAL |
8,010 | 1.36 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FM-A | Active | 1500 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UUP1C220MCL1GSCAP ALUM 22UF 20% 16V SMD |
13,596 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUP | Active | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 37 mA @ 120 Hz | 55.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
