| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUB1H220MCL1GSCAP ALUM 22UF 20% 50V SMD |
14,679 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUB | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 57 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EMZJ160ADA471MHA0GCAP ALUM 470UF 20% 16V SMD |
6,878 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZJ | Active | 470 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 425 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.406 (10.30mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UPW2G100MHD1TOCAP ALUM 10UF 20% 400V RADIAL |
6,169 | 1.22 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 10 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 72 mA @ 120 Hz | 115.2 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UPW1J471MHD1TOCAP ALUM 470UF 20% 63V RADIAL |
5,214 | 1.15 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 470 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.72 A @ 100 kHz | 70 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UVZ1C332MHD1TOCAP ALUM 3300UF 20% 16V RADIAL |
7,563 | 1.16 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 3300 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.3455 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UHE1E331MPD6TDCAP ALUM 330UF 20% 25V RADIAL |
11,334 | 0.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UHE | Not For New Designs | 330 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 605.5 mA @ 120 Hz | 865 mA @ 100 kHz | 80 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ELXZ630ELL220MFB5DCAP ALUM 22UF 20% 63V RADIAL |
12,635 | 0.52 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 240 mA @ 100 kHz | 1 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEU-FC1H680CAP ALUM 68UF 20% 50V RADIAL |
14,174 | 0.52 |
RFQ |
Datasheet |
Bulk | FC | Active | 68 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 315.3 mA @ 120 Hz | 485 mA @ 100 kHz | 234 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
|

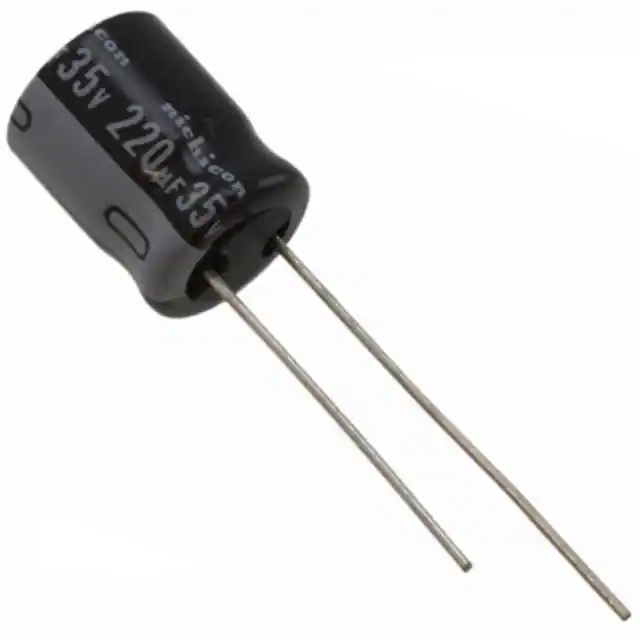

UVR1V221MPDCAP ALUM 220UF 20% 35V RADIAL |
12,962 | 0.52 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 577.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-FK0J331AVCAP ALUM 330UF 20% 6.3V SMD |
7,175 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 330 µF | ±20% | 6.3 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.268 (6.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-FK1C221AVCAP ALUM 220UF 20% 16V SMD |
8,184 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 220 µF | ±20% | 16 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.268 (6.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
Series.jpg)
|
EEE-FP1E680ALCAP ALUM 68UF 20% 25V SMD |
12,292 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 68 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FP0J101ALCAP ALUM 100UF 20% 6.3V SMD |
12,573 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 100 µF | ±20% | 6.3 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FP1V470ALCAP ALUM 47UF 20% 35V SMD |
10,989 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 47 µF | ±20% | 35 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-FP1E330ALCAP ALUM 33UF 20% 25V SMD |
12,225 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Halogen Free | Active | 33 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UHD1V221MPD6TDCAP ALUM 220UF 20% 35V RADIAL |
13,160 | 0.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UHD | Not For New Designs | 220 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 721 mA @ 120 Hz | 1.03 A @ 100 kHz | 53 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
UKT1H331MPD1TDCAP ALUM 330UF 20% 50V RADIAL |
9,398 | 1.17 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKT | Not For New Designs | 330 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | Audio | 410 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
URZ2A101MHD1TOCAP ALUM 100UF 20% 100V RADIAL |
7,436 | 1.17 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URZ | Active | 100 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 265 mA @ 120 Hz | 397.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | - | Through Hole |
|
UVY2C101MHD1TOCAP ALUM 100UF 20% 160V RADIAL |
8,987 | 1.17 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVY | Not For New Designs | 100 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 356.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UUX1C221MNL6GSCAP ALUM 220UF 20% 16V SMD |
14,124 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUX | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 307 mA @ 120 Hz | 429 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
