| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCD1A221MCL1GSCAP ALUM 220UF 20% 10V SMD |
14,284 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 145 mA @ 120 Hz | 290 mA @ 100 kHz | 320 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
6.3TKV1000M8X10.5CAP ALUM 1000UF 20% 6.3V SMD |
8,594 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TKV | Active | 1000 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
10TKV680M8X10.5CAP ALUM 680UF 20% 10V SMD |
8,676 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TKV | Active | 680 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UUL1V220MCL1GSCAP ALUM 22UF 20% 35V SMD |
13,548 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUL | Active | 22 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 42 mA @ 120 Hz | 63 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ULT2D180MNL1GSCAP ALUM 18UF 20% 200V SMD |
7,597 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULT | Active | 18 µF | ±20% | 200 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 90 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.433 (11.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEU-HD1H100BCAP ALUM 10UF 20% 50V RADIAL |
14,889 | 0.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 78 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-FP1V330AVCAP ALUM 33UF 20% 35V SMD |
6,957 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 33 µF | ±20% | 35 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.252 (6.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEU-HD1H330BCAP ALUM 33UF 20% 50V RADIAL |
13,800 | 0.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EEE-FP1V470AVCAP ALUM 47UF 20% 35V SMD |
6,997 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 47 µF | ±20% | 35 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.252 (6.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEU-HD1V470BCAP ALUM 47UF 20% 35V RADIAL |
14,333 | 0.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 135 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPA1E331MPD1TDCAP ALUM 330UF 20% 25V RADIAL |
10,266 | 0.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 330 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 409.5 mA @ 120 Hz | - | 90 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UKW1C102MPD1TDCAP ALUM 1000UF 20% 16V RADIAL |
9,112 | 1.11 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKW | Not For New Designs | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 770 mA @ 120 Hz | 885.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
UKW1H331MPD1TDCAP ALUM 330UF 20% 50V RADIAL |
9,571 | 1.11 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKW | Not For New Designs | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 570 mA @ 120 Hz | 855 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
EEE-FK1A221SVCAP ALUM 220UF 20% 10V SMD |
5,520 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS, Anti-Vibration | Active | 220 µF | ±20% | 10 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.252 (6.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UZS1C220MCL1GBCAP ALUM 22UF 20% 16V SMD |
13,331 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UZS | Not For New Designs | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 37 mA @ 120 Hz | 55.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.181 (4.60mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
EEE-FK1V680SVCAP ALUM 68UF 20% 35V SMD |
8,886 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS, Anti-Vibration | Active | 68 µF | ±20% | 35 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.252 (6.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

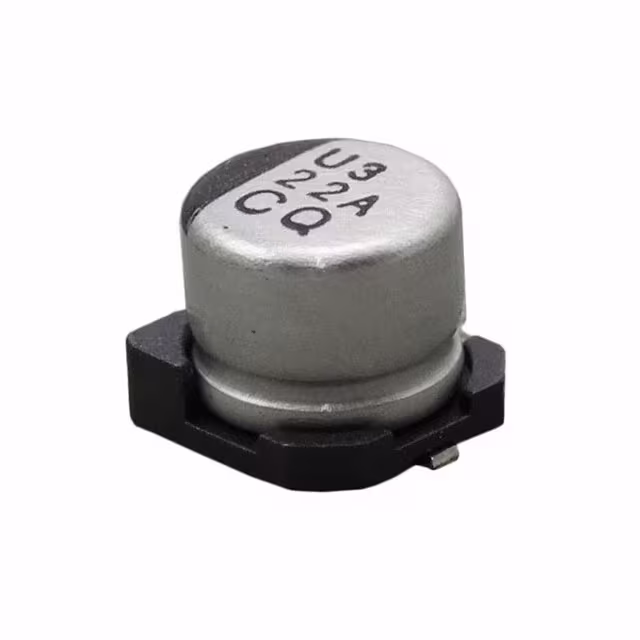

UCQ1A220MCL1GBCAP ALUM 22UF 20% 10V SMD |
10,859 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCQ | Active | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.307 (7.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
B41821A6107M000CAP ALUM 100UF 20% 50V RADIAL |
14,301 | 0.47 |
RFQ |
Datasheet |
Bulk | B41821 | Not For New Designs | 100 µF | ±20% | 50 V | 2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 260 mA @ 120 Hz | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

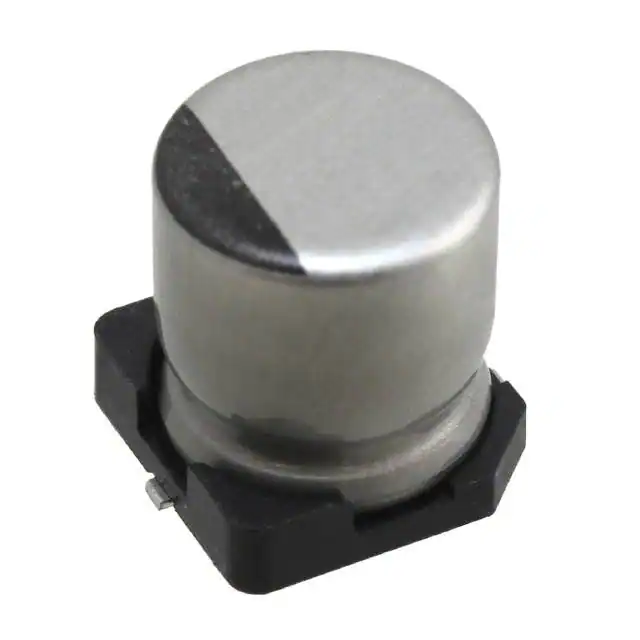

UCB0J101MCL1GSCAP ALUM 100UF 20% 6.3V SMD |
13,930 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCB | Active | 100 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 90 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.287 (7.30mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ESMG500ELL220ME11DCAP ALUM 22UF 20% 50V RADIAL |
11,747 | 0.47 |
RFQ |
Datasheet |
Bulk | SMG | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 95 mA @ 120 Hz | 171 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
