| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUA1H4R7MCL1GSCAP ALUM 4.7UF 20% 50V SMD |
11,997 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUA | Active | 4.7 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 22 mA @ 120 Hz | 33 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UCL1A220MCL1GSCAP ALUM 22UF 20% 10V SMD |
12,880 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCL | Active | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 850 mOhms | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
UCL1A330MCL6GSCAP ALUM 33UF 20% 10V SMD |
13,409 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCL | Active | 33 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 850 mOhms | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UPM1H270MED1TDCAP ALUM 27UF 20% 50V RADIAL |
13,405 | 0.58 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 27 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 215 mA @ 10 kHz | 530 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
UPM1K150MED1TDCAP ALUM 15UF 20% 80V RADIAL |
11,801 | 0.58 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 15 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 52 mA @ 120 Hz | 104 mA @ 10 kHz | 1.2 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-HAA470WARCAP ALUM 47UF 20% 10V SMD |
13,788 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 43 mA @ 120 Hz | 73.1 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
EEE-HAC470WARCAP ALUM 47UF 20% 16V SMD |
13,539 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 39 mA @ 120 Hz | 66.3 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UCD1E220MCL1GSCAP ALUM 22UF 20% 25V SMD |
11,330 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 22 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UCD1E330MCL1GSCAP ALUM 33UF 20% 25V SMD |
11,033 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UCD1V100MCL1GSCAP ALUM 10UF 20% 35V SMD |
11,174 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
UUA1V100MCL1GSCAP ALUM 10UF 20% 35V SMD |
12,774 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUA | Active | 10 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 27 mA @ 120 Hz | 40.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UPM1J101MHD6TOCAP ALUM 100UF 20% 63V RADIAL |
10,348 | 0.93 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 100 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | - | 140 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | - | Through Hole |
|
UKL1A102MHD1TOCAP ALUM 1000UF 20% 10V RADIAL |
13,416 | 0.93 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKL | Not For New Designs | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 931.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EMZA250ADA331MHA0GCAP ALUM 330UF 20% 25V SMD |
11,040 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZA | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UUX1E470MCL6GSCAP ALUM 47UF 20% 25V SMD |
14,950 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUX | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 78 mA @ 120 Hz | 130.26 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UVZ2E3R3MPD1TACAP ALUM 3.3UF 20% 250V RADIAL |
11,631 | 0.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 3.3 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UUT1A101MCL1GSCAP ALUM 100UF 20% 10V SMD |
13,304 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUT | Not For New Designs | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 90 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
865080543007CAP ALUM 27UF 20% 35V SMD |
11,627 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASLI | Active | 27 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 136.5 mA @ 120 Hz | 210 mA @ 100 kHz | 600 mOhms | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPM1H221MPD1TDCAP ALUM 220UF 20% 50V RADIAL |
13,226 | 0.93 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 220 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.15 A @ 10 kHz | 75 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

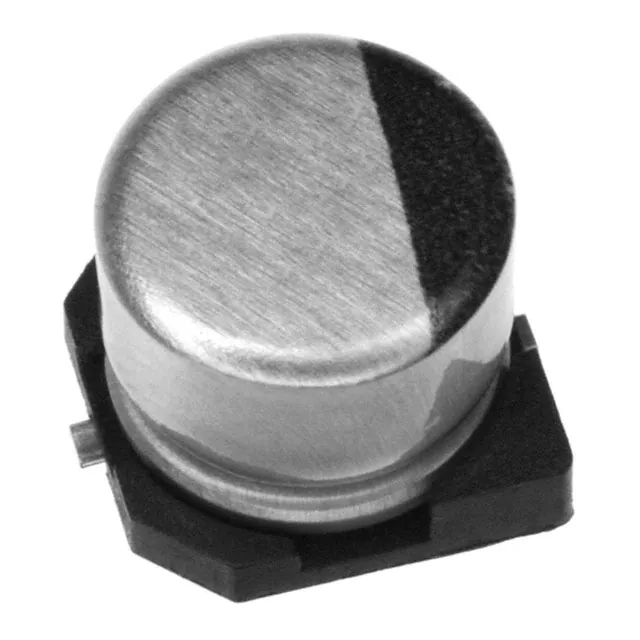

AVE476M16D16T-FCAP ALUM 47UF 20% 16V SMD |
11,249 | 0.55 |
RFQ |
Datasheet |
Cut Tape (CT),Bulk | AVE | Not For New Designs | 47 µF | ±20% | 16 V | 7.05Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 93.75 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.209 (5.30mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
