| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUB2C100MNL1GSCAP ALUM 10UF 20% 160V SMD |
11,965 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUB | Active | 10 µF | ±20% | 160 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | - | General Purpose | 59 mA @ 120 Hz | 88.5 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UWJ1V100MCL1GBCAP ALUM 10UF 20% 35V SMD |
11,596 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWJ | Not For New Designs | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 43.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
50SEV4R7M4X5.5CAP ALUM 4.7UF 20% 50V SMD |
12,084 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 18 mA @ 120 Hz | 27 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EMVH630ADA470MHA0GCAP ALUM 47UF 20% 63V SMD |
10,631 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVH | Active | 47 µF | ±20% | 63 V | 700mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 93 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
860160673012CAP ALUM 27UF 20% 50V RADIAL |
11,906 | 0.20 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 27 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 99.84 mA @ 120 Hz | 192 mA @ 100 kHz | 1.02 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UVZ2C330MPD1TDCAP ALUM 33UF 20% 160V RADIAL |
12,639 | 0.81 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 33 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 232 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEV226M050A9GAACAP ALUM 22UF 20% 50V SMD |
12,475 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 22 µF | ±20% | 50 V | 2Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 70 mA @ 100 kHz | 2 Ohms | - | 0.248 Dia (6.30mm) | 0.222 (5.65mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-HB1E4R7ARCAP ALUM 4.7UF 20% 25V SMD |
14,458 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 22 mA @ 120 Hz | 37.4 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-HB1E6R8ARCAP ALUM 6.8UF 20% 25V SMD |
14,866 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 6.8 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 25 mA @ 120 Hz | 42.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-HB1H2R2ARCAP ALUM 2.2UF 20% 50V SMD |
10,957 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
UVP1C221MPD1TDCAP ALUM 220UF 20% 16V RADIAL |
10,189 | 0.82 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVP | Not For New Designs | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 275 mA @ 120 Hz | 412.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EEE-0JA152PCAP ALUM 1500UF 20% 6.3V SMD |
13,073 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 1500 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 750 mA @ 120 Hz | 1.275 A @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
16SGV220M8X10.5CAP ALUM 220UF 20% 16V SMD |
14,797 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 185 mA @ 120 Hz | 222 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
UUB2D6R8MNL1GSCAP ALUM 6.8UF 20% 200V SMD |
14,767 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUB | Active | 6.8 µF | ±20% | 200 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | - | General Purpose | 59 mA @ 120 Hz | 88.5 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
URZ1H221MPD1TDCAP ALUM 220UF 20% 50V RADIAL |
14,445 | 0.82 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URZ | Active | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 435 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
URZ1V331MPD1TDCAP ALUM 330UF 20% 35V RADIAL |
12,926 | 0.82 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URZ | Active | 330 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 340 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|

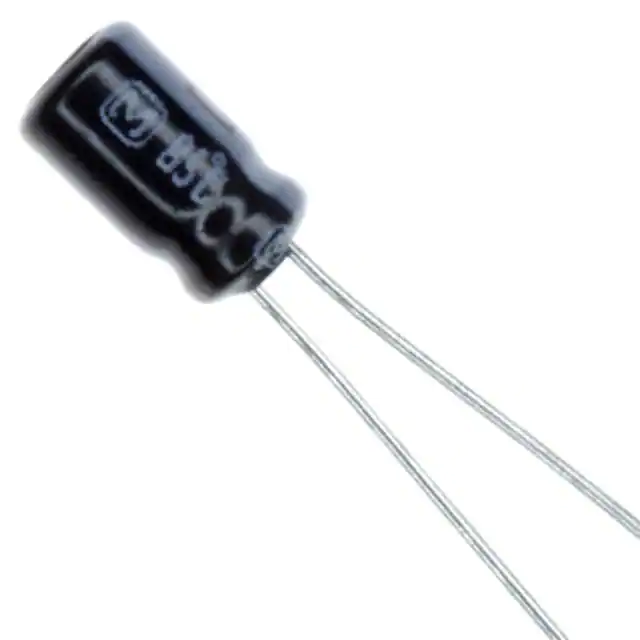

ECE-A1AKA220CAP ALUM 22UF 20% 10V RADIAL |
11,295 | 0.33 |
RFQ |
Datasheet |
Bulk | KA | Active | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 59.5 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|

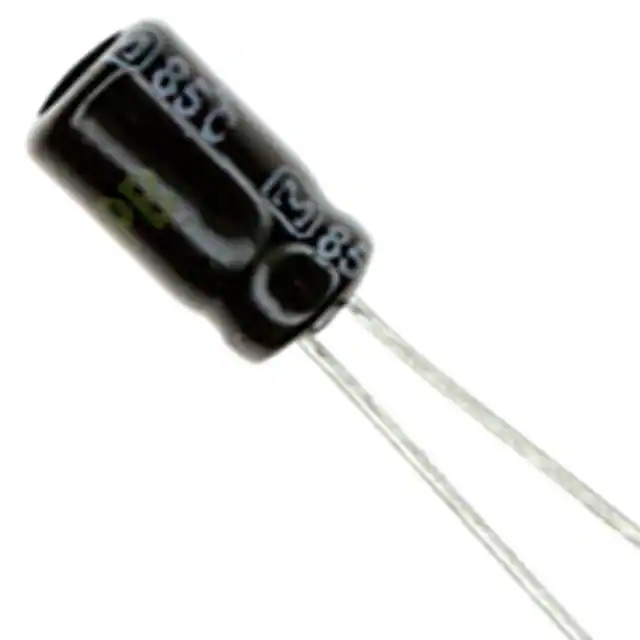

ECE-A1AKA330CAP ALUM 33UF 20% 10V RADIAL |
12,696 | 0.33 |
RFQ |
Datasheet |
Bulk | KA | Active | 33 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 43 mA @ 120 Hz | 73.1 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
25PK220MEFC6.3X11CAP ALUM 220UF 20% 25V RADIAL |
14,595 | 0.33 |
RFQ |
Datasheet |
Bulk | PK | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 372 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
860130573001CAP ALUM 22UF 20% 35V RADIAL |
14,888 | 0.20 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATET | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 82 mA @ 120 Hz | 125.46 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
