| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

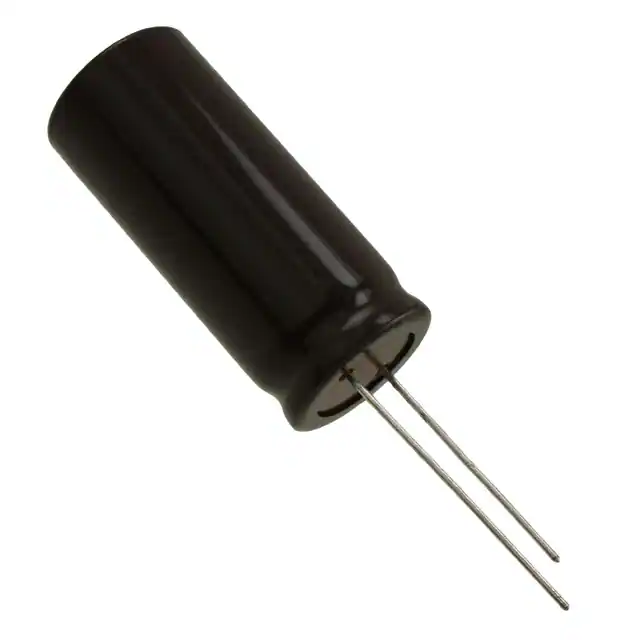

UPS2D471MRDCAP ALUM 470UF 20% 200V RADIAL |
7,932 | 4.84 |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 1.5065 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALS70A822QM450CAP ALUM 8200UF 20% 450V SCREW |
599 | 100.81 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 8200 µF | ±20% | 450 V | 28mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | 28.8 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|

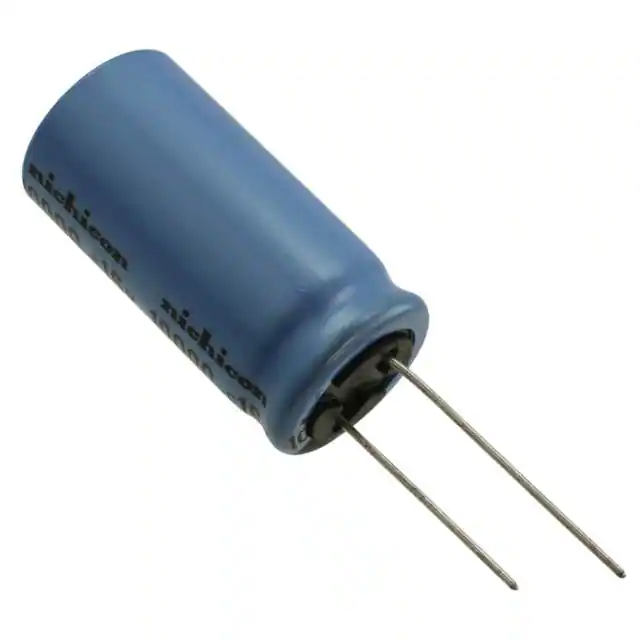

UKA1C103MHDCAP ALUM 10000UF 20% 16V RADIAL |
5,410 | 4.84 |
RFQ |
Datasheet |
Bulk | UKA | Not For New Designs | 10000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.06 A @ 120 Hz | 2.369 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
ULD2W680MHDCAP ALUM 68UF 20% 450V RADIAL |
8,253 | 4.85 |
RFQ |
Datasheet |
Bulk | ULD | Not For New Designs | 68 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 936 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
EGXF630ELL182ML40SCAP ALUM 1800UF 20% 63V RAD TH |
5,037 | 4.85 |
RFQ |
Datasheet |
Bulk | GXF | Active | 1800 µF | ±20% | 63 V | 28mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.154 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|

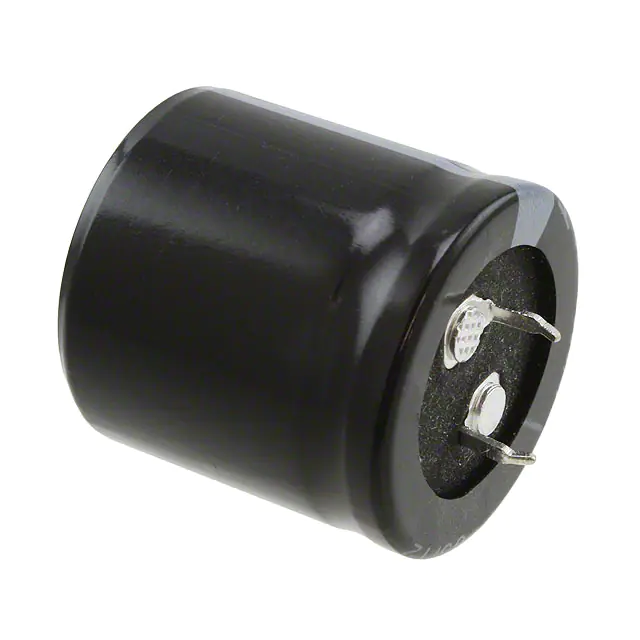

ELH688M050AS2AACAP ALUM 6800UF 20% 50V SNAP |
5,425 | 4.86 |
RFQ |
Datasheet |
Bulk | ELH | Active | 6800 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.408 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LNR1J224MSECAP ALUM 220000UF 20% 63V SCREW |
433 | 105.49 |
RFQ |
Datasheet |
Bulk | LNR | Active | 220000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.3 A @ 120 Hz | 32.545 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
450MXK150MEFCSN25X25CAP ALUM 150UF 20% 450V SNAP |
7,013 | 4.92 |
RFQ |
Datasheet |
Tray | MXK | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.512 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1V202SCAP ALUM 2000UF 20% 35V RADIAL |
8,791 | 4.93 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 2000 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ALS70A273NT250CAP ALUM 27000UF 20% 250V SCREW |
770 | 108.02 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 27000 µF | ±20% | 250 V | 15mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.1 A @ 100 Hz | 30.5 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|

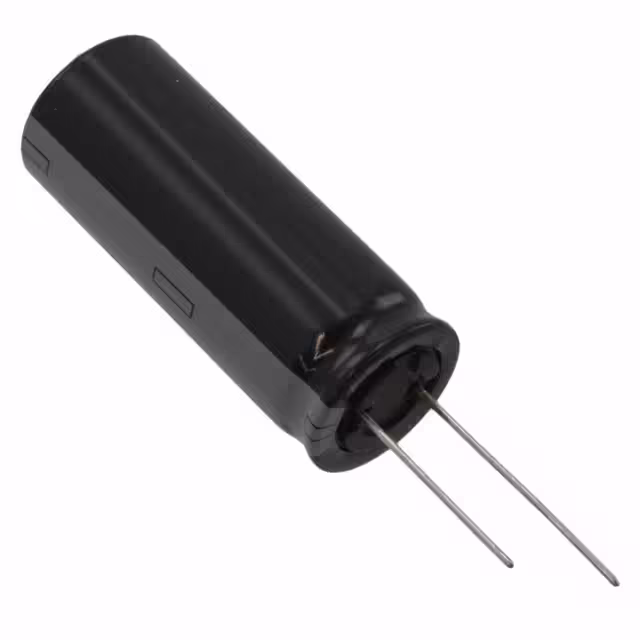

200KXW560MEFC18X45CAP ALUM 560UF 20% 200V RADIAL |
7,918 | 4.96 |
RFQ |
Datasheet |
Bulk | KXW | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.39 A @ 120 Hz | 1.946 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LKX2W101MESY40CAP ALUM 100UF 20% 450V SNAP |
8,218 | 4.98 |
RFQ |
Datasheet |
Bulk | LKX | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 690 mA @ 120 Hz | 986.7 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

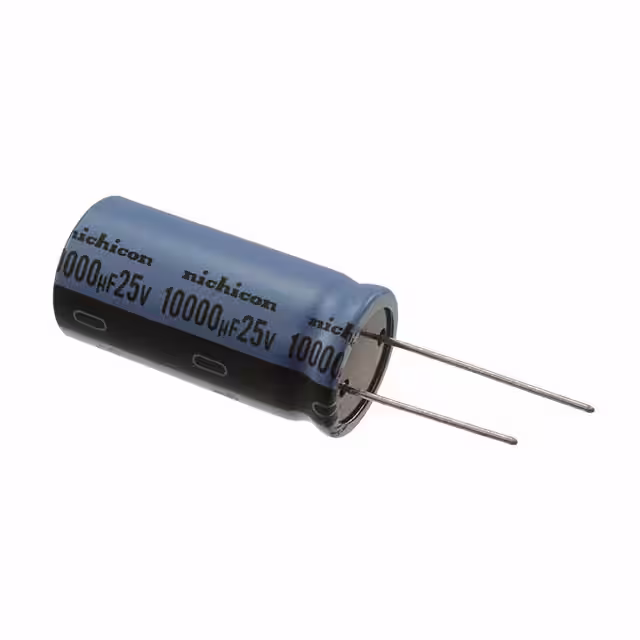

UKT1E103MRDCAP ALUM 10000UF 20% 25V RADIAL |
7,337 | 4.99 |
RFQ |
Datasheet |
Bulk | UKT | Not For New Designs | 10000 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.15 A @ 120 Hz | 2.473 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
LGW2D821MELB30CAP ALUM 820UF 20% 200V SNAP |
7,030 | 4.99 |
RFQ |
Datasheet |
Bulk | LGW | Active | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.48 A @ 120 Hz | 5.22 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
LGN2E681MELZ50CAP ALUM 680UF 20% 250V SNAP |
8,142 | 5.01 |
RFQ |
Datasheet |
Bulk | LGN | Active | 680 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
200VXH1000MEFCSN25X45CAP ALUM 1000UF 20% 200V SNAP |
9,618 | 5.02 |
RFQ |
Datasheet |
Bulk | VXH | Active | 1000 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.63 A @ 120 Hz | 3.945 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UFW1H472MRDCAP ALUM 4700UF 20% 50V RADIAL |
8,667 | 5.07 |
RFQ |
Datasheet |
Bulk | UFW | Not For New Designs | 4700 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.9 A @ 120 Hz | 3.335 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
LGG2D102MELZ45CAP ALUM 1000UF 20% 200V SNAP |
9,480 | 5.08 |
RFQ |
Datasheet |
Bulk | LGG | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.06 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

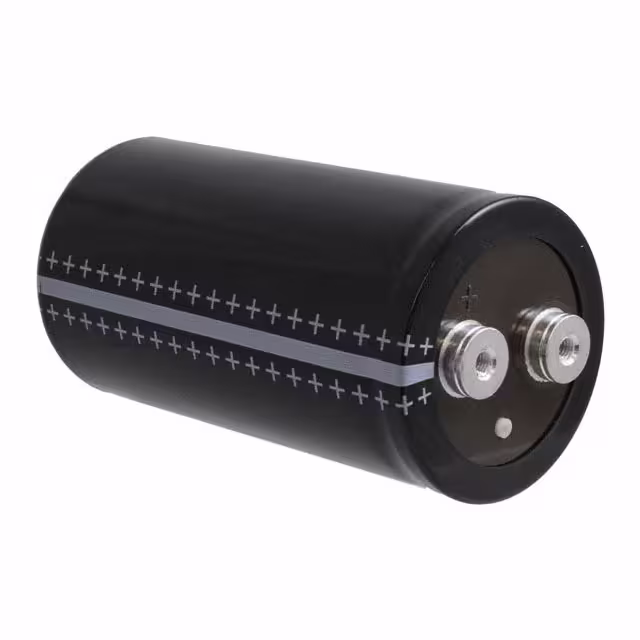

B43564A5338M000CAP ALUM 3300UF 20% 450V SCREW |
850 | 116.12 |
RFQ |
Datasheet |
Bulk | B43564 | Not For New Designs | 3300 µF | ±20% | 450 V | 51mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.732 (145.60mm) | - | Chassis Mount |
|
LKG1H222MESABKCAP ALUM 2200UF 20% 50V SNAP |
6,401 | 5.13 |
RFQ |
Datasheet |
Bulk | LKG | Active | 2200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.3 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
