| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD8342OPTOISO 5KV 1CH GATE DRIVER 6SOP |
6,033 | 3.40 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|

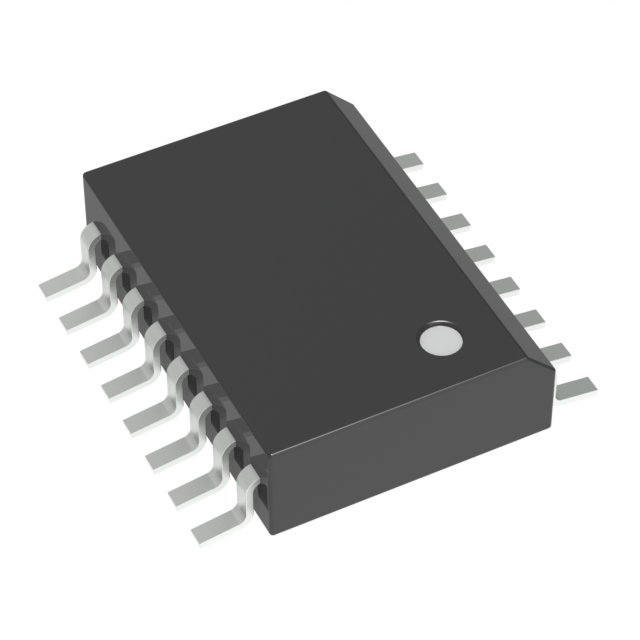

NCV57001DWR2GIC IGBT GATE DRIVER |
9,287 | 5.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 1200Vrms | 100kV/µs | 90ns, 90ns | - | 10ns, 15ns | 7.8A, 7.1A | - | - | - | 0V ~ 24V | -40°C ~ 125°C (TA) | Surface Mount |
|
FOD3180SDVOPTOISO 5KV 1CH GATE DRIVER 8SMD |
9,222 | 3.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | -40°C ~ 100°C | Surface Mount |
|
NCD57090BDWR2GISOLATED HIGH CURRENT GATE DRIVE |
5,426 | 3.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
FOD8342TOPTOISO 5KV 1CH GATE DRIVER 6SOP |
9,084 | 2.24 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
FOD8480IPM DRIVER 10MB |
7,726 | 2.44 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 300ns, 300ns | 250ns | 15ns, 10ns | 2.5mA, 2.5mA | - | 1.4V | 20 mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
FOD3180TVOPTOISO 5KV 1CH GATE DRIVER 8DIP |
6,008 | 3.23 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | -40°C ~ 100°C | Through Hole |
|
|
FOD8314OPTOISO 5KV 1CH GATE DRIVER 6SOP |
9,730 | 2.12 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 40ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 16V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
FOD31258PW 2.5A GD DIP |
5,854 | 3.98 |
RFQ |
Datasheet |
Tube | OPTOPLANAR® | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 125°C | Through Hole |
|

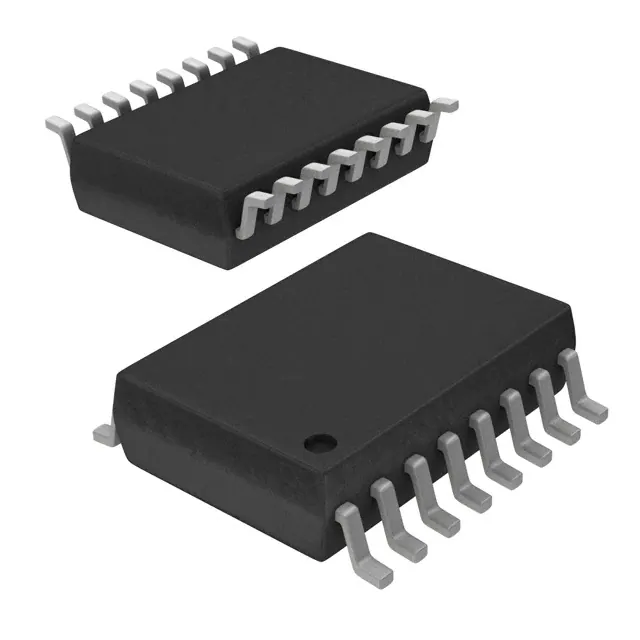

FOD8318VOPTOISO 4.243KV GATE DRIVER 16SO |
9,548 | 9.08 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 500ns, 500ns | 300ns | 34ns, 34ns | 2.5A, 2.5A | 3A | - | - | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
FOD8342R2OPTOISO 5KV 1CH GATE DRIVER 6SOP |
7,557 | 3.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
NCV57081ADR2GISOLATED DRIVER IN A COMPACT 8-P |
6,827 | 5.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCD57090DDWR2GISOLATED HIGH CURRENT GATE DRIVE |
5,629 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs (Max) | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCD57090EDWR2GISOLATED HIGH CURRENT GATE DRIVE |
8,738 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs (Max) | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|

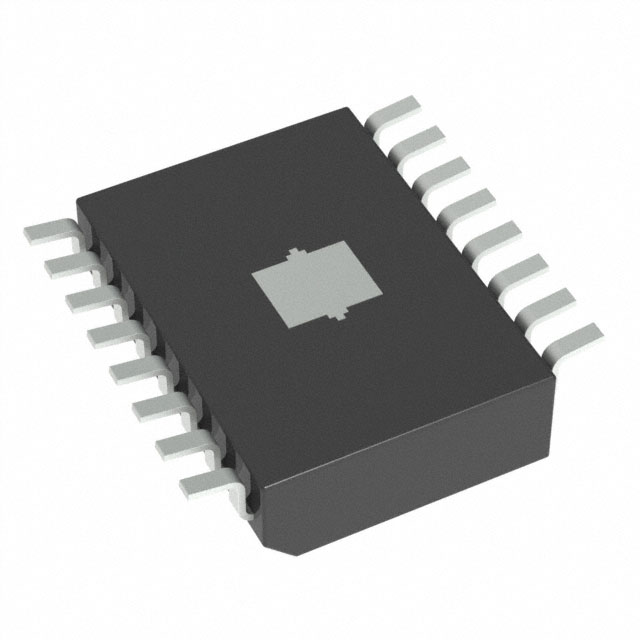

NCV57001FDWR2GISOLATED HIGH CURRENT AND HIGH E |
7,459 | 5.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 1200Vrms | 100kV/µs | 90ns, 90ns | 15ns | 14ns, 19ns | 7.8A, 7.1A | 6A | - | - | 0V ~ 24V | -40°C ~ 125°C (TA) | Surface Mount |
|

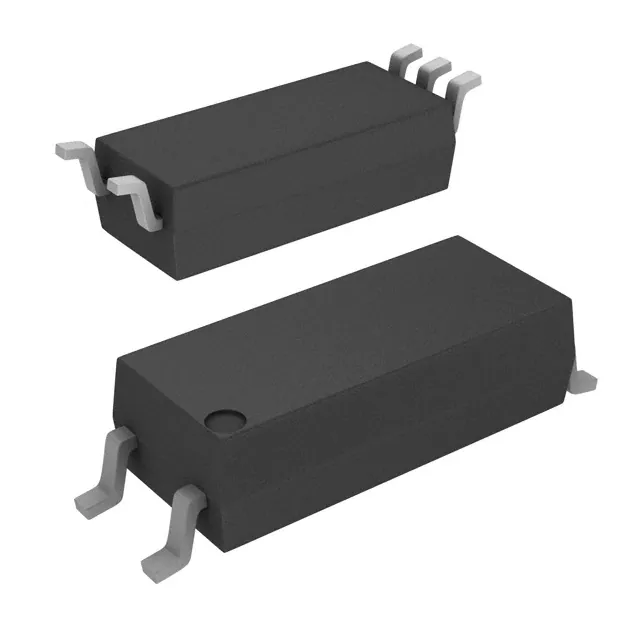

FOD8320R2VOPTOISO 5KV 1CH GATE DRIVER 5SOP |
7,578 | 6.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 16V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
FOD3120OPTOISO 5KV 1CH GATE DRIVER 8DIP |
6,371 | 2.41 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Through Hole |
|
|
FOD3180OPTOISO 5KV 1CH GATE DRIVER 8DIP |
8,335 | 3.16 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | -40°C ~ 100°C | Through Hole |
|
|
FOD3182SOPTOISO 5KV 1CH GATE DRIVER 8SMD |
6,035 | 3.24 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
FOD3182OPTOISO 5KV 1CH GATE DRIVER 8DIP |
7,553 | 3.32 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Through Hole |
