Results:

Фотографии	Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature

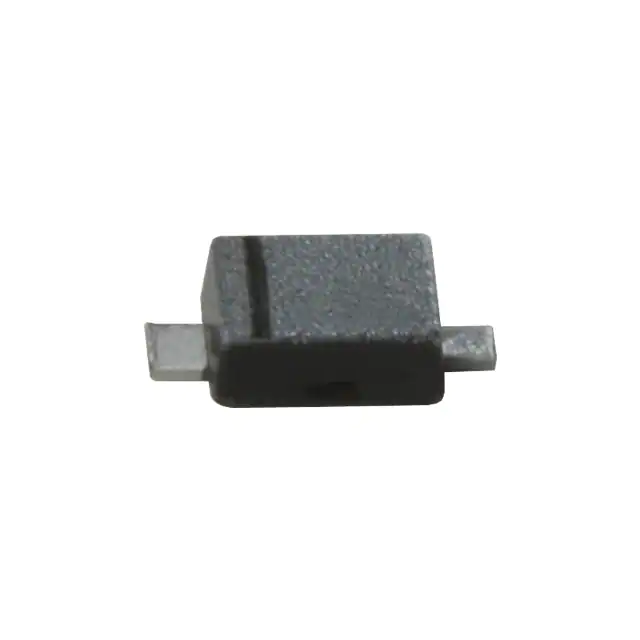

	MA2707700L RF DIODE STANDAR 35V SSSMINI2-F1 Panasonic Electronic Components	2,005	0.10	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	850mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)
	MA2JP0200L RF DIODE PIN 60V 150MW SMINI2-F1 Panasonic Electronic Components	3,617	0.22	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.5pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)

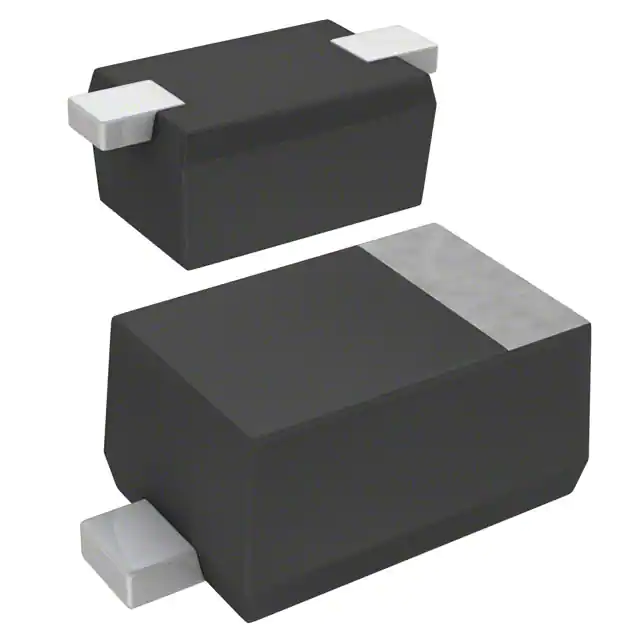

	MA2SP050GL RF DIODE PIN 60V SSMINI2-F4 Panasonic Electronic Components	2,069	0.60	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	50 mA	2.4pF @ 0V, 1MHz	5.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
	MA2SP0100L DIODE PIN 60V 150MW SSMINI2-F1 Panasonic Electronic Components	2,818	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.8pF @ 1V, 1MHz	1Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
	MA2SP0200L DIODE PIN 60V 150MW SSMINI2-F1 Panasonic Electronic Components	3,599	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.5pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
	MA2S07700L RF DIODE STANDARD 35V SSMINI2-F2 Panasonic Electronic Components	2,901	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	850mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)
	MA27P0100L DIODE PIN 60V 150MW SSSMINI2-F2 Panasonic Electronic Components	2,727	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.8pF @ 1V, 1MHz	1Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
	MA27P0200L DIODE PIN 60V 150MW SSSMINI2-F2 Panasonic Electronic Components	3,980	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.5pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
	MA27P0700L DIODE PIN 60V 150MW SSSMINI2-F2 Panasonic Electronic Components	2,456	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.35pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
	MA27P1100L RF DIODE PIN 60V SSSMINI2-F2 Panasonic Electronic Components	3,974	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	50 mA	0.8pF @ 0V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
	MA2SP0500L RF DIODE PIN 60V SSMINI2-F1 Panasonic Electronic Components	3,076	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	50 mA	2.4pF @ 0V, 1MHz	5.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
	MA2SP0600L RF DIODE PIN 60V SSMINI2-F1 Panasonic Electronic Components	3,458	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.6pF @ 1V, 1MHz	1.2Ohm @ 10mA, 100MHz	-	150°C (TJ)
	MA2C85800E RF DIODE STANDARD 35V DO34-A1 Panasonic Electronic Components	2,742	0.00	- + RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	980mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)
	MA2C85900E RF DIODE STANDARD 35V DO34-A1 Panasonic Electronic Components	2,290	0.00	- + RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	980mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)
	MA27P010GL DIODE PIN 60V 150MW SSSMINI2-F3 Panasonic Electronic Components	2,753	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.8pF @ 1V, 1MHz	1Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
	MA2SP010GL DIODE PIN 60V 150MW SSMINI2-F4 Panasonic Electronic Components	3,335	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.8pF @ 1V, 1MHz	1Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
	MA2SP060GL RF DIODE PIN 60V SSMINI2-F4 Panasonic Electronic Components	2,413	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.6pF @ 1V, 1MHz	1.2Ohm @ 10mA, 100MHz	-	150°C (TJ)
	DA2S00100L DIODE STANDARD 40V SSMINI2-F5-B Panasonic Electronic Components	11,525	0.00	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Discontinued at Mosen	Standard - Single	40V	100 mA	1.2pF @ 6V, 1MHz	850mOhm @ 2mA, 100MHz	-	150°C (TJ)
