Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

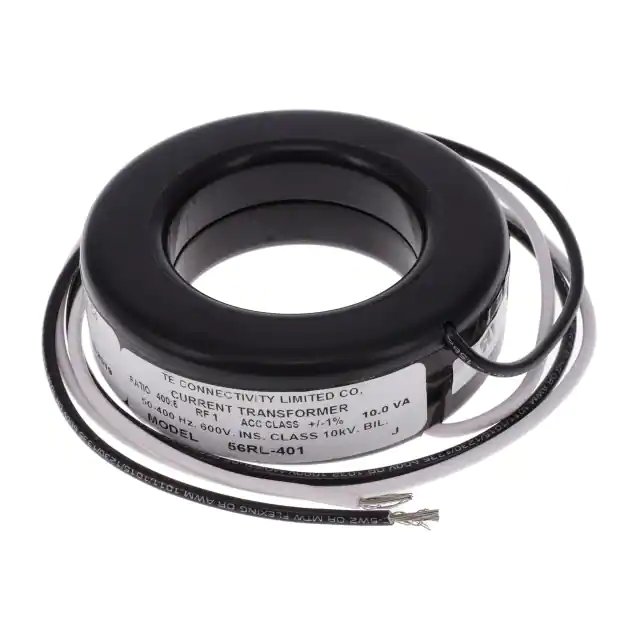

CT-0400-D20 CURR SENSE XFMR 400:5 DONUT Littelfuse Inc.	759	112.85	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	400 A	-	-	-	400:5	-	-	Free Hanging (In-Line)	-	-

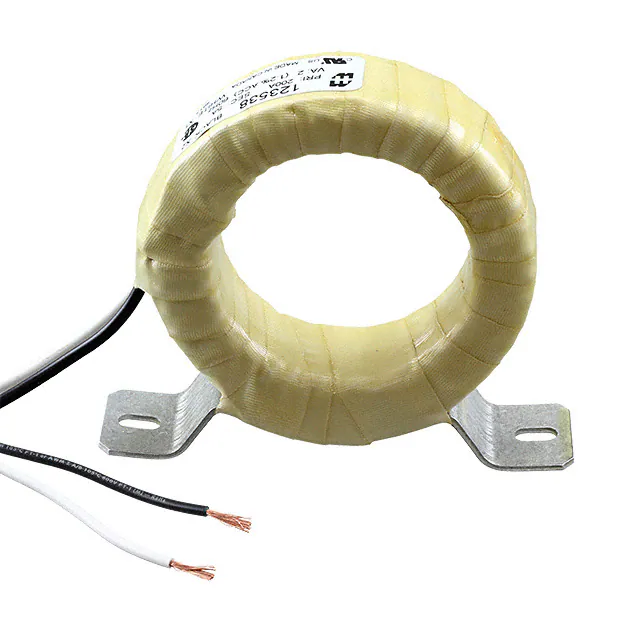

CT200 CURR SENSE XFMR Littelfuse Inc.	581	141.85	- + RFQ	Datasheet	Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-

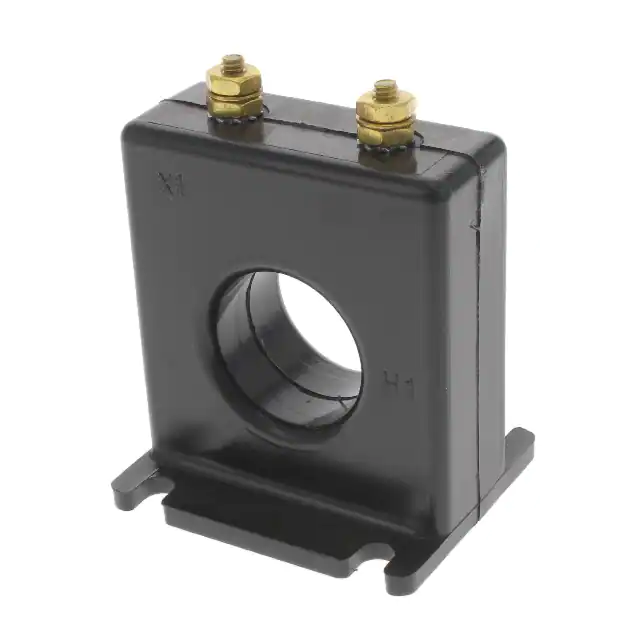

CT-0050-F10 CURR SENSE XFMR 50:5 FOOTED Littelfuse Inc.	2,988	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	50 A	-	-	-	50:5	-	-	-	-	-

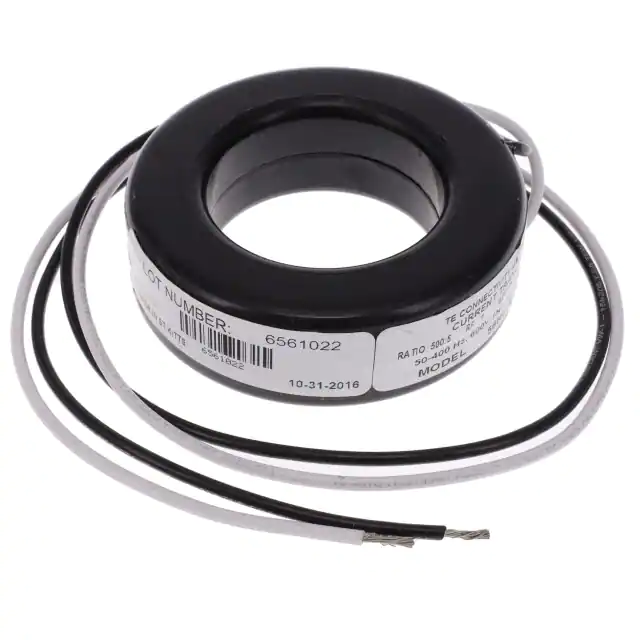

CT-0500-D20 CURR SENSE XFMR 500:5 DONUT Littelfuse Inc.	886	112.85	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	500 A	-	-	-	500:5	-	-	Free Hanging (In-Line)	-	-

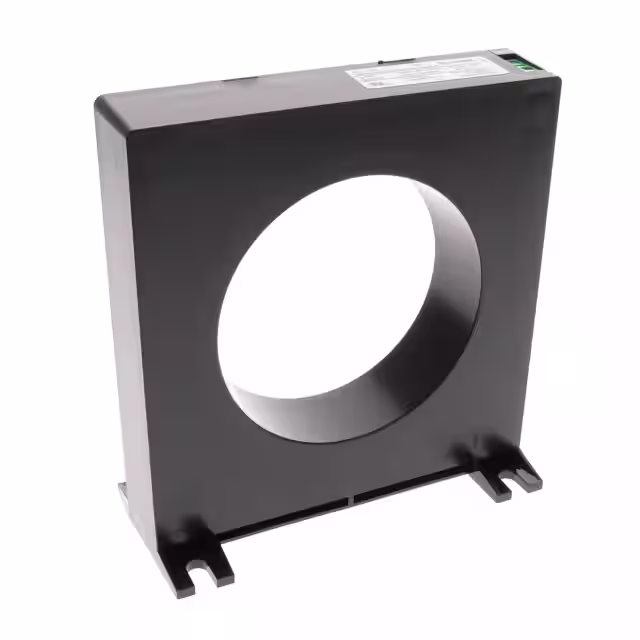

ELCT5-88 CT 100:1 WITH FLUX COND 88MM Littelfuse Inc.	626	535.95	- + RFQ	Datasheet	Box	ELCT	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	5 A	-	-	100:1	5:0.05	-	-	Free Hanging (In-Line)	5.725 L x 5.421 W (145.42mm x 137.69mm)	5.280 (134.12mm)

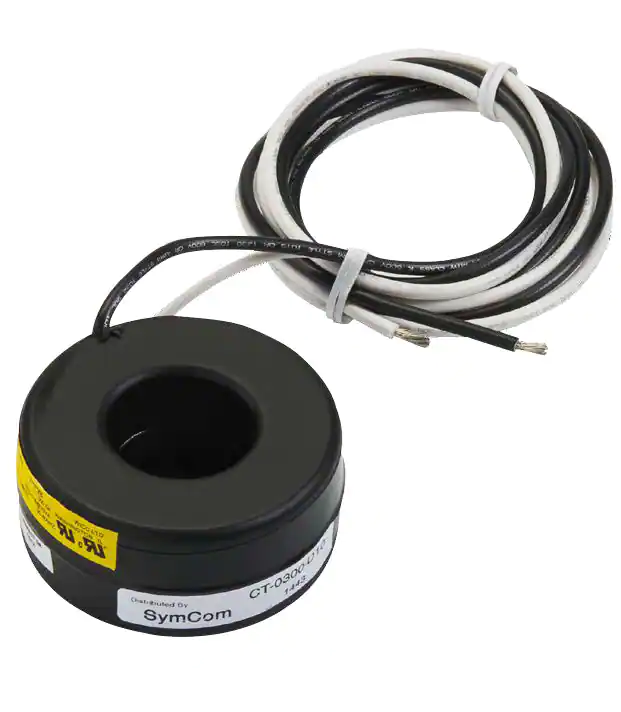

CT-0050-D10 CT 50:5 1 WINDOW DONUT Littelfuse Inc.	2,164	62.37	- + RFQ	Datasheet	Bulk	-	Active	-	Non-Invasive (Solid Core)	50 A	-	-	-	50:5	-	-	Free Hanging (In-Line)	2.461 Dia (62.50mm)	-
CT-0150-F10 CURR SENSE XFMR 150:5 FOOTED Littelfuse Inc.	3,778	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	150 A	-	-	-	150:5	-	-	-	-	-
CT-0200-F10 CURR SENSE XFMR 200:5 FOOTED Littelfuse Inc.	3,256	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	200 A	-	-	-	200:5	-	-	-	-	-
CT-0300-D10 CURR SENSE XFMR 300:5 DONUT Littelfuse Inc.	3,949	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	300 A	-	-	-	300:5	-	-	Free Hanging (In-Line)	-	-
CT-0300-F10 CURR SENSE XFMR 300:5 FOOTED Littelfuse Inc.	4,978	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	300 A	-	-	-	300:5	-	-	-	-	-

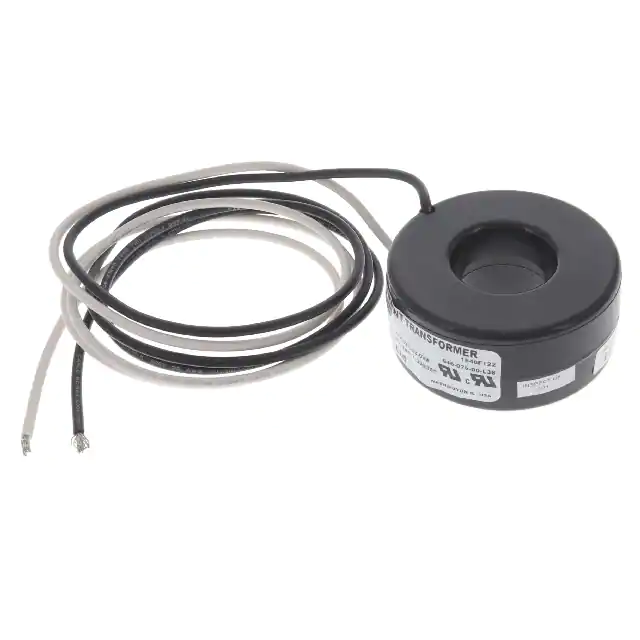

CT-0075-D10 CURR SENSE XFMR 75:5 DONUT Littelfuse Inc.	3,953	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	75 A	-	-	-	75:5	-	-	Free Hanging (In-Line)	-	-

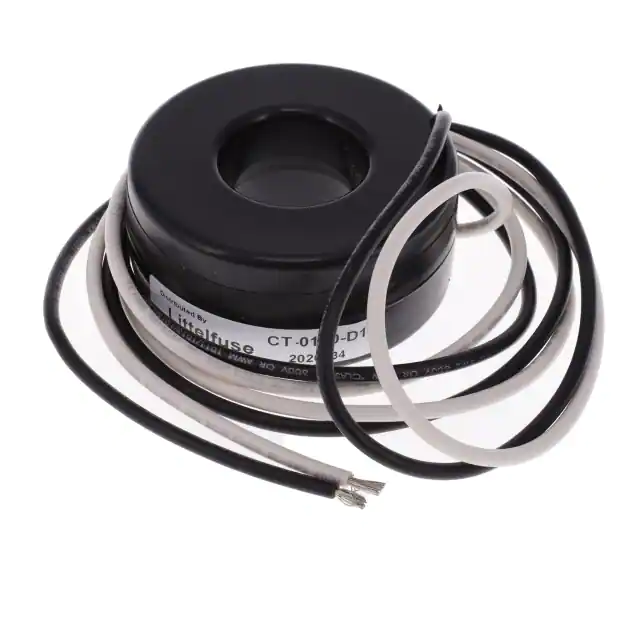

CT-0100-D10 CURR SENSE XFMR 100:5 DONUT Littelfuse Inc.	4,734	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	Free Hanging (In-Line)	-	-
CT-0100-F10 CURR SENSE XFMR 100:5 FOOTED Littelfuse Inc.	2,814	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	-	-	-

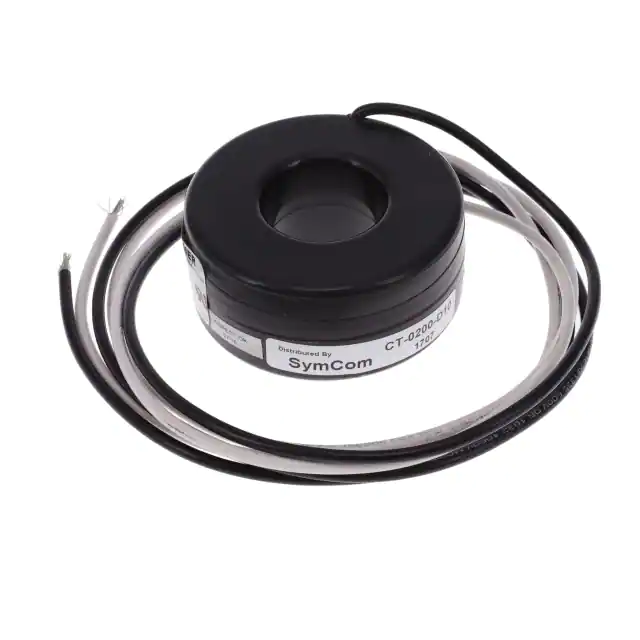

CT-0200-D10 CURR SENSE XFMR 200:5 DONUT Littelfuse Inc.	2,866	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	200 A	-	-	-	200:5	-	-	Free Hanging (In-Line)	-	-

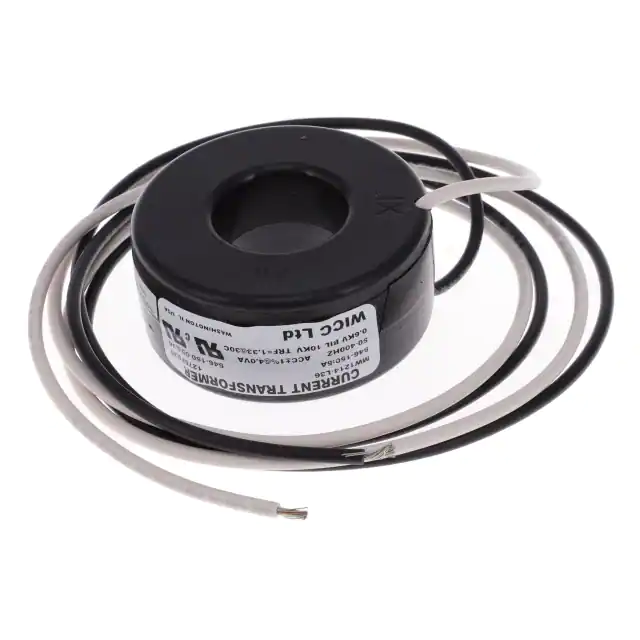

CT-0150-D10 CURR SENSE XFMR 150:5 DONUT Littelfuse Inc.	4,891	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	150 A	-	-	-	150:5	-	-	Free Hanging (In-Line)	-	-

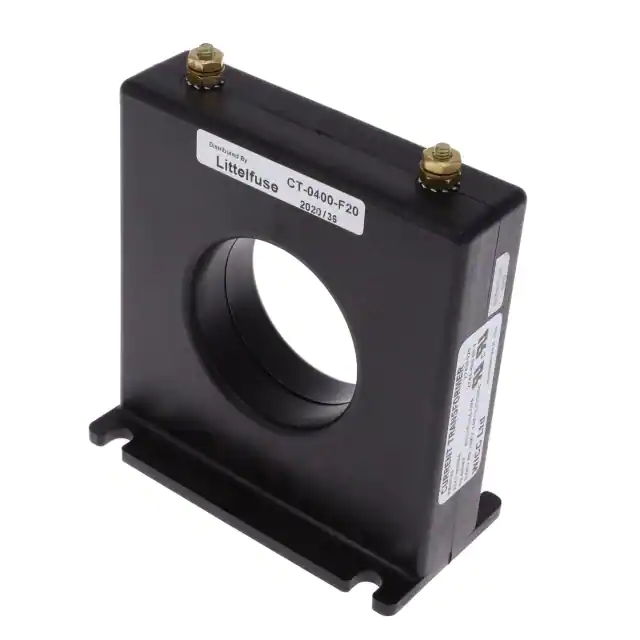

CT-0400-F20 CURR SENSE XFMR 400:5 FOOTED Littelfuse Inc.	2,858	85.07	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	400 A	-	-	-	400:5	-	-	-	-	-

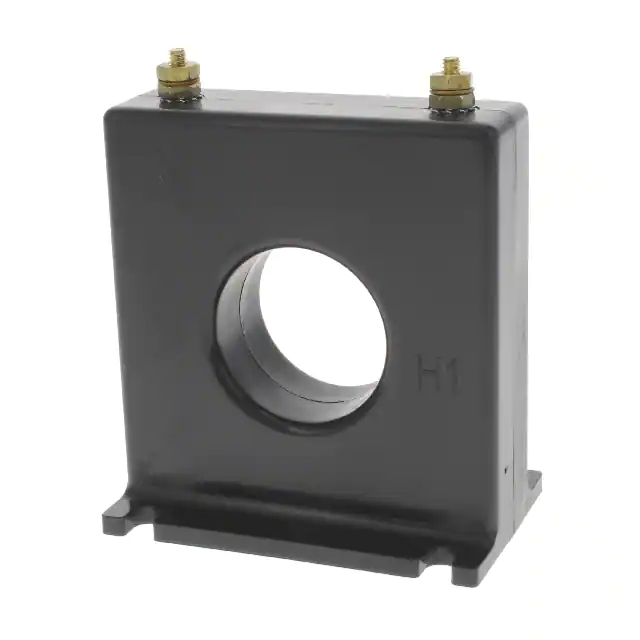

CT-1200-F15 CURR SENSE XFMR 1200:5 FOOTED Littelfuse Inc.	928	116.87	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	1200 A	-	-	-	1200:5	-	-	-	-	-

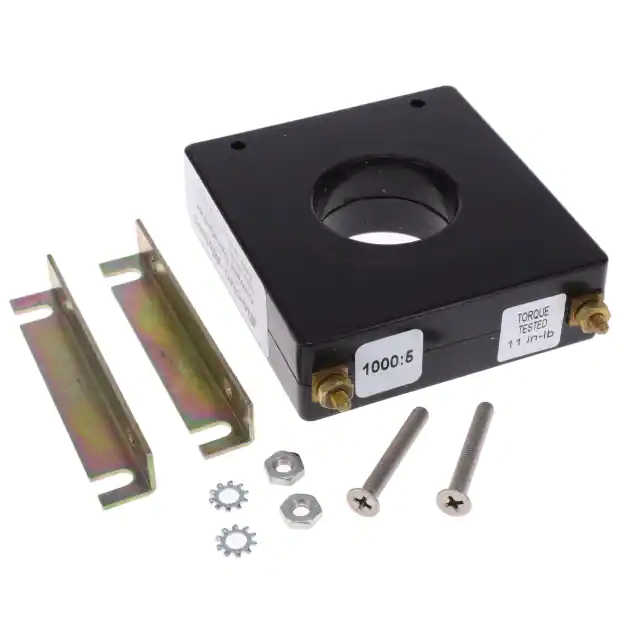

5SHT-102-E CURRENT TRANSFORMER 1000:5 25VA Littelfuse Inc.	768	172.87	- + RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-

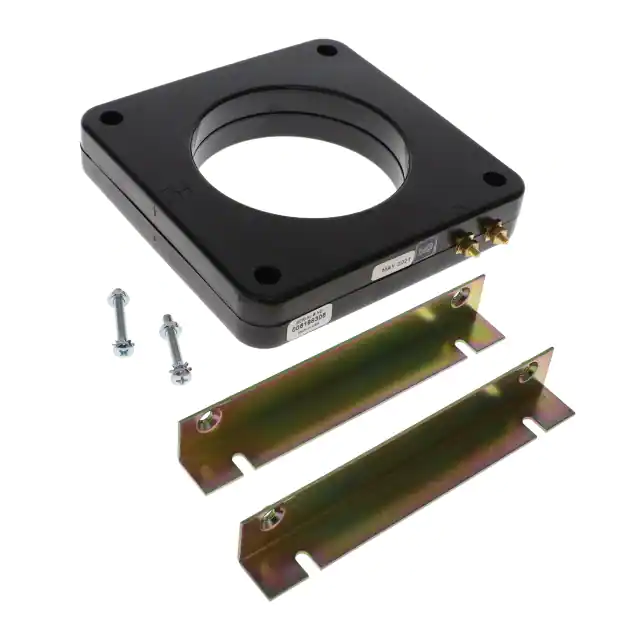

170SHT-501-E 500:5 MODEL 170 CT 108 MM(4.25 I Littelfuse Inc.	812	267.81	- + RFQ		Bulk	CT	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	500:5	-	-	Chassis Mount	0.265 L x 0.265 W (6.73mm x 6.73mm)	0.120 (3.05mm)
CT-0150-F20 CURR SENSE XFMR 150:5 FOOTED Littelfuse Inc.	2,347	85.07	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	150 A	-	-	-	150:5	-	-	-	-	-
